DECKEL MAHO DMU 80T
DECKEL MAHO - DMU 80T
2002
17,000 €
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DECKEL MAHO DMU 80T - Vertical centre For sale

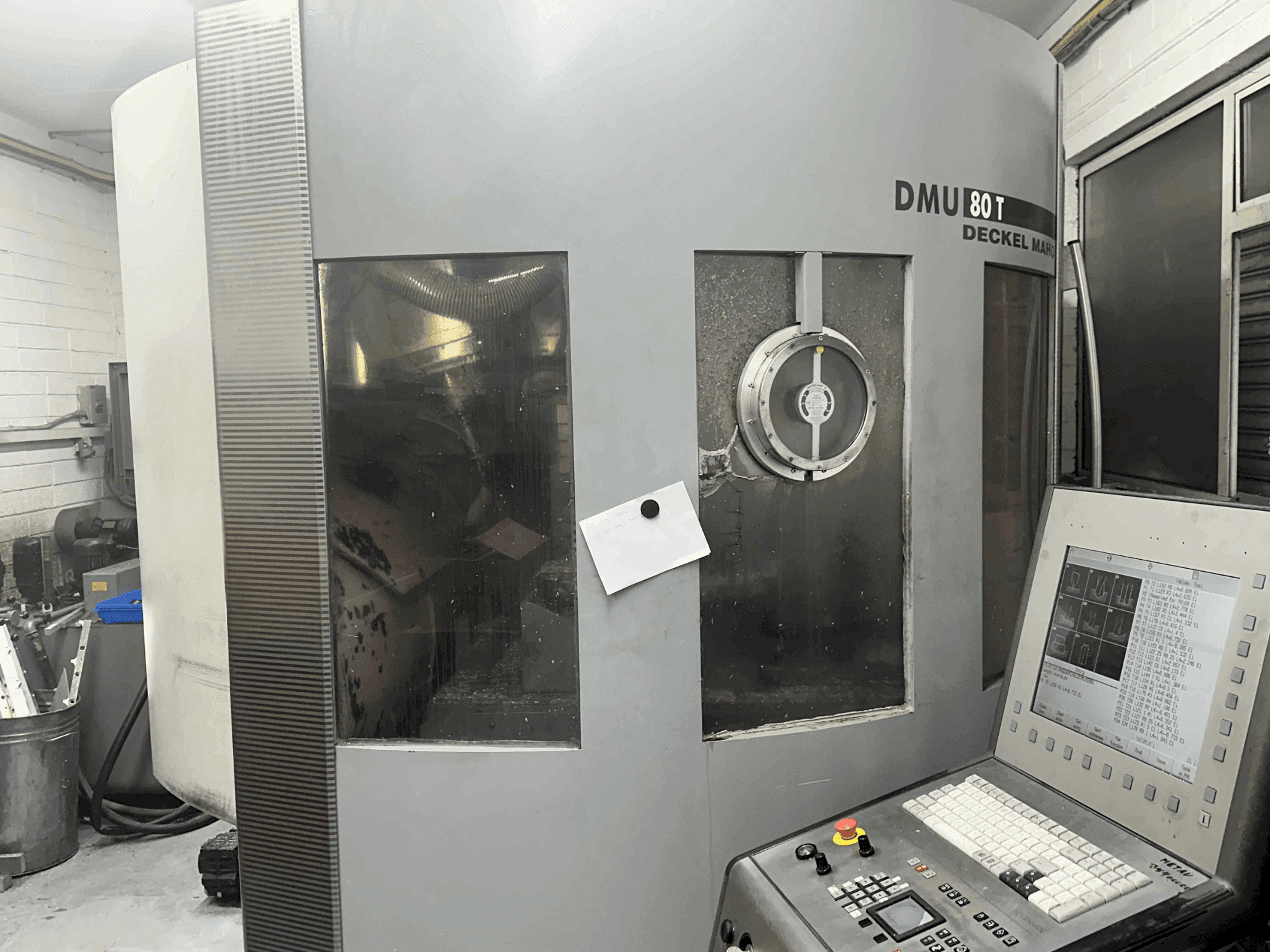

This DECKEL MAHO DMU 80T, manufactured in 2002, is a versatile 5-axis vertical machining center with a Heidenhain Millplus control unit for precise machining. It has 880 mm X-axis travel, 630 mm on the Y and Z axes, 103 degrees B-axis rotation, and 360 degrees in the C-axis. The spindle reaches 18,000 rpm, supporting workpieces up to 850 x 680 x 600 mm and 800 kg. It has 32 tool slots, BT40 tool holders, and internal cooling. Contact us for details about this vertical machining centre.
Overview
- brand: DECKEL MAHO
- year: 2002
- MODEL: DMU 80T
- application type: Milling
- Location: Ireland
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: Heidenhain
- GINDUMAC ID: IE-MIL-DEC-2002-00001
Technical Information
General Data
- Measurements width: 2600 mm
- Measurements depth: 4530 mm
- Measurements height: 2500 mm
- Machine weight: 9600 kg
Control Unit
- Brand: Heidenhain
- Model: Millplus
Main drive
- Number of spindles: 1
- Spindle speed range: 18000 1/MIN
- Tool taper: BT40
- Number of axis: 5
Movement
- X-AXIS Movement: 880 mm
- Y-AXIS Movement: 630 mm
- Z-AXIS Movement: 630 mm
- B-AXIS Movement: 103º MM
- C-AXIS Movement: 360º MM
Workpiece
- Workpiece weight: 800 kg
Tools
- Slots in storage: 32
- Max weight: 8 kg
- Max tool diameter: 130 mm
- Max tool length: 315 mm
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - 5 Axis capability, can also be used as 4 Axis with rotary table removed
Additional Information
- Technical Machine Benefits:
- - High spindle speed of 18,000 rpm allows for precision and high-speed machining.
- - 5-axis capability provides versatility in machining complex geometries, enhancing operational flexibility.
- - Workpiece max dimensions: 850 x 680 x 600 mm
- - Max diameter: 650 mm
- Qualitative Machine Benefits:
- - Heidenhain millplus control unit ensures precise and efficient control during complex machining operations.
- - Robust construction with a machine weight of 9600 kg ensures stability and vibration resistance during machining.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
