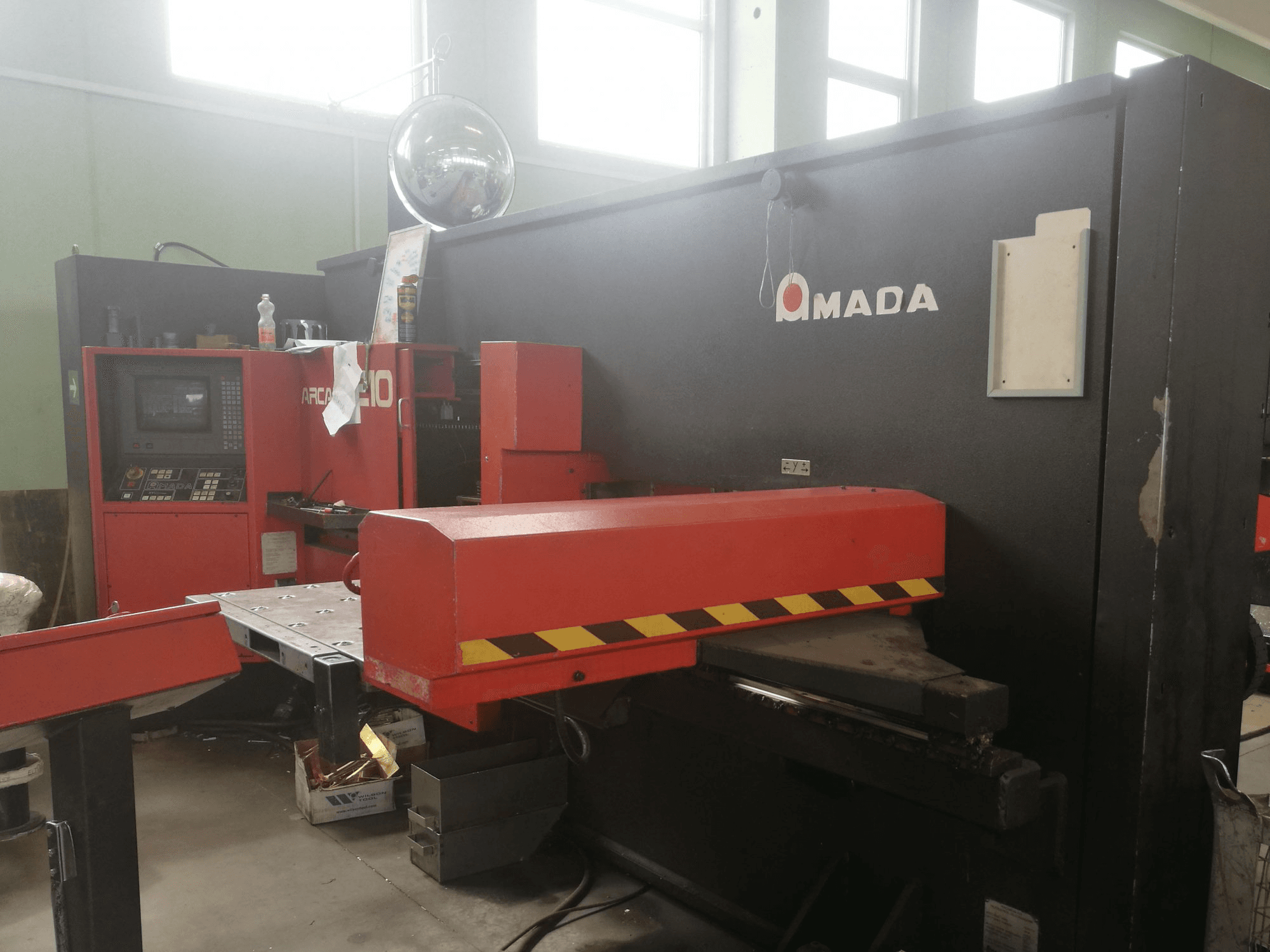

AMADA ARCADE 210 Turret Punching Machine

This AMADA ARCADE 210 Turret Punching Machine was built in 1995 in France and has been operative for approximately 35000 working hours since then. With a FANUC Series 16-P Control unit, this fast and efficient model has mainly worked with steel sheets with around 2.5 mm of thickness during the past.

Overview

brand: AMADA
year: 1995
MODEL: ARCADE 210
production hours: 35000
application type: Punching
Location: Croatia
machine type: Turret Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - AMADA ARCADE 210

General Data

Measurements width: 2750 mm
Measurements depth: 4500 mm
Measurements height: 2050 mm
Machine weight: 10000 kg

Control Unit

Model: Series 16-P
CNC main language: English
Brand: FANUC

Main drive

Punching force: 200 kN
Maximum sheet thickness: 6 mm

Movement

X-AXIS Movement: 2450 mm
Y-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 100 kg

Tools

Number of index: 3
Number of stations: 19

Max Material thickness

Steel: 4 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 25 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
