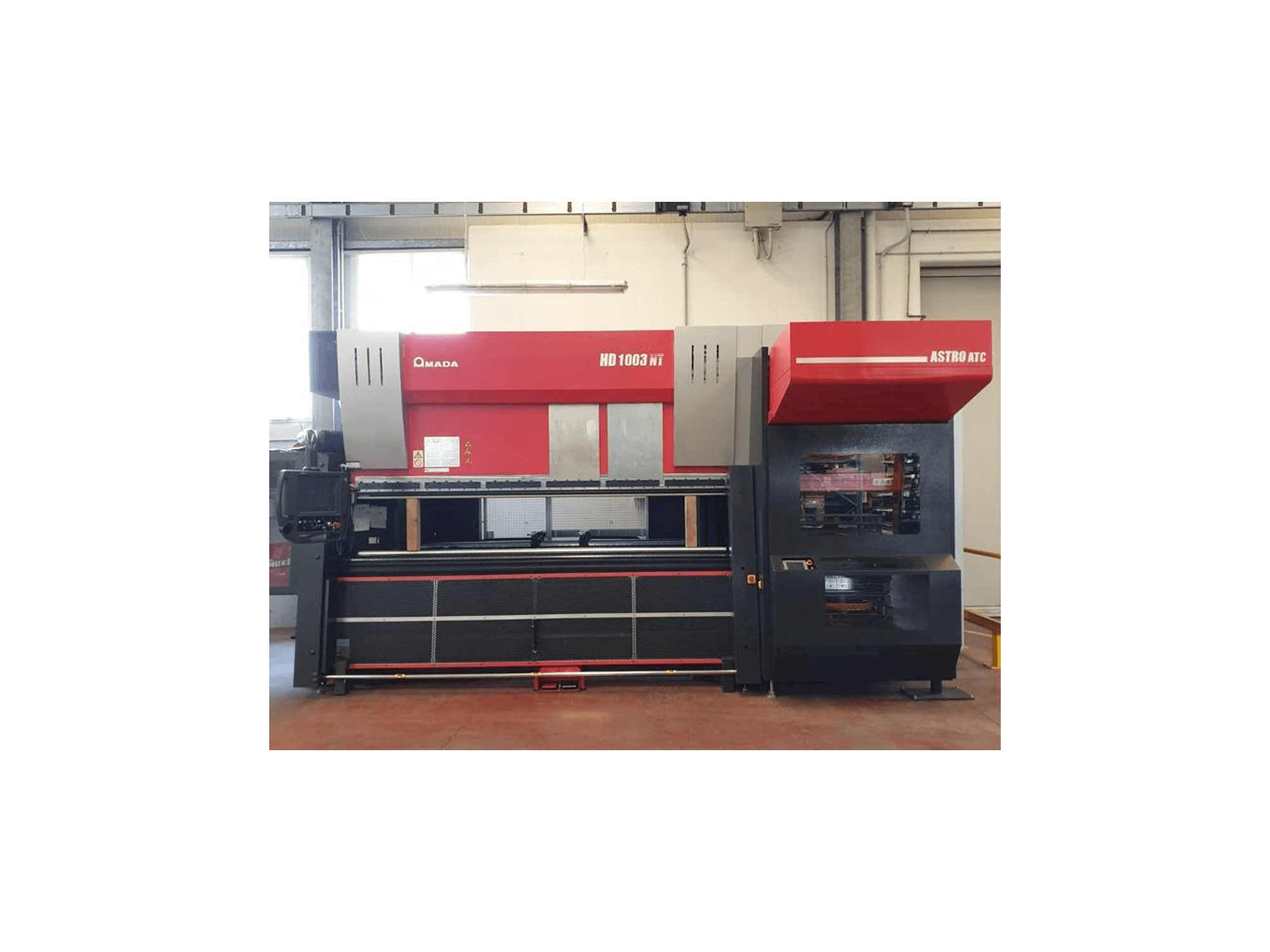

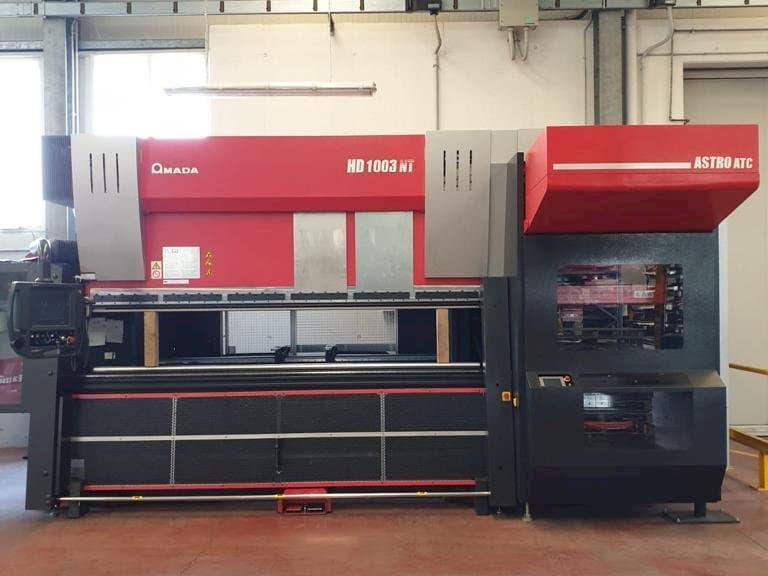

AMADA HD 1003 NT Press Brake

This AMADA HD 1003 NT Bending machine was built in 2014 in Japan. Operated through an AMADA AMNC Control unit, this machine stands out for its maximum flexibility for the production of small batches. This machine combines reduced setup time with increased accuracy, capable working with a pressing force of 1000 kN.

Overview

brand: AMADA
year: 2014
MODEL: HD 1003 NT
application type: Bending
Location: Italy
machine type: Press Brake
availability: Sold
control unit brand: AMADA

Technical Information - AMADA HD 1003 NT

General Data

Measurements width: 6080 mm
Measurements depth: 3010 mm
Measurements height: 2915 mm
Machine weight: 10200 kg

Control Unit

Model: AMNC
Brand: AMADA

Main drive

Pressing force: 1000 kN
Bending length: 3110 mm
Maximum sheet thickness: 3.5 mm

Movement

X-AXIS Movement: 700 mm

Table

Outer length: 990 mm
Outer width: 60 mm
Distance between: 2700 mm

Tools

Slots in storage: 4
Max tool length: 800 mm
Type of tool holder: ATC

Media

Main electronic connection: 200 V
Power consumption: 10 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4 manipulators automatically perform tool setup
- - 15 magazines per punch
- - 18 warehouses for matrixes
- - Up to a tool length of 800 mm per magazine
- - Total tool length capacity up to 25 m
- - Amts (amada modular tooling system)
Qualitative Machine Benefits:
- - Reliable hydraulic clamping
- - Possible positive and negative orientation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
