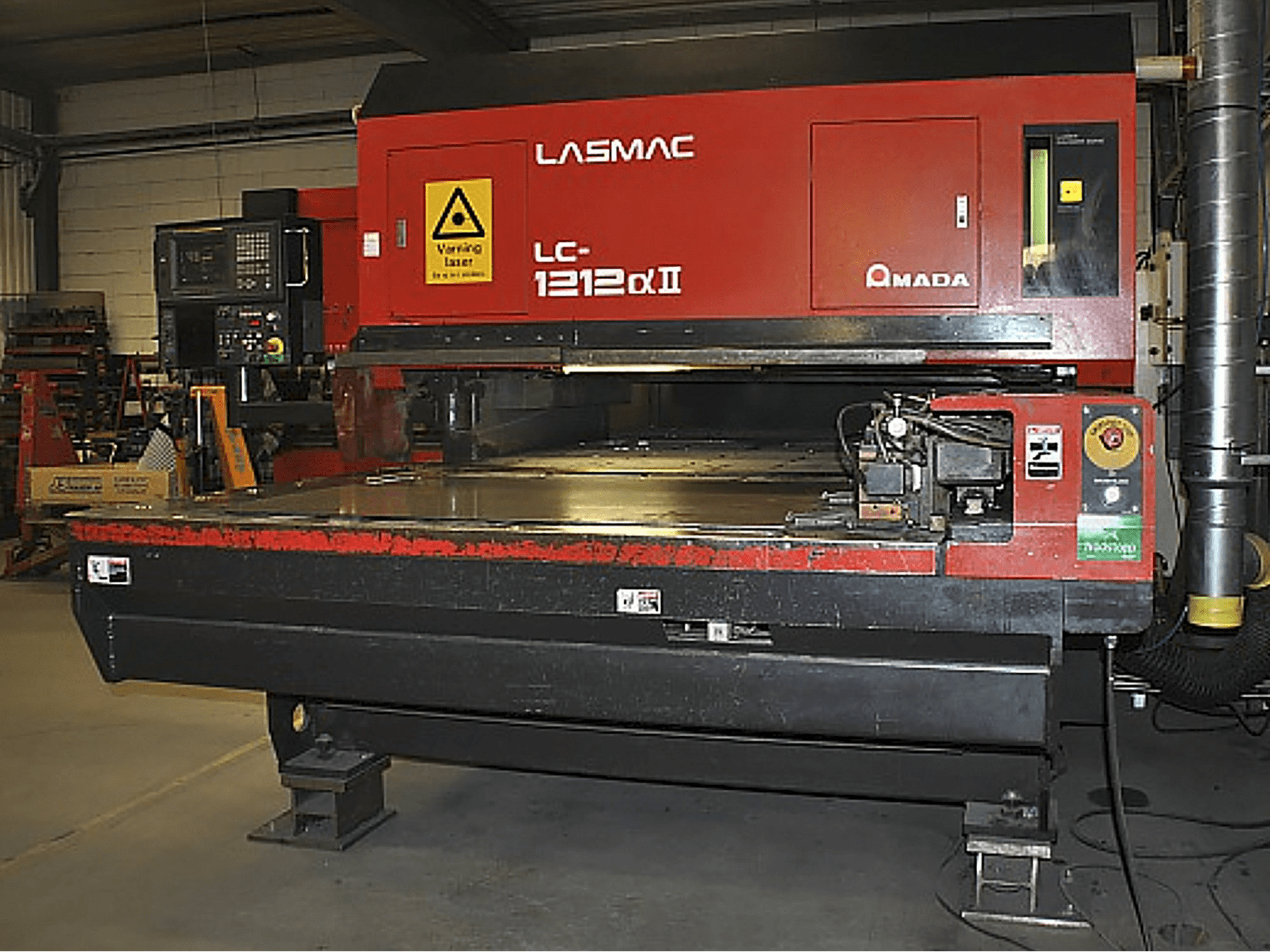

AMADA LC 1212 α2 Laser Cutting Machine

This AMADA LC 1212 α2 Laser Cutting Machine was manufactured in 1995 and has a working record of 21337 working hours ever since, and is operated through a FANUC 16-L control unit. The model ensures a clean cut, and is especially designed for high-volume and short-run production of parts. Additionally, because its sheet loader offers several parts to be unloaded at once, unattended operation is allowed.

Overview

brand: AMADA
year: 1995
MODEL: LC 1212 α2
production hours: 21337
application type: Cutting
Location: Luxembourg
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: FANUC

Technical Information - AMADA LC 1212 α2

General Data

Measurements width: 2230 mm
Measurements depth: 3120 mm
Measurements height: 2275 mm
Machine weight: 5800 kg

Control Unit

Brand: FANUC
Model: 16-L

Main drive

Laserpower: 1.5 kW
Laser type: Co2
Laser brand: Fanuc

Movement

X-AXIS Movement: 1270 mm
X-AXIS Working Feed: 40 m/min
Y-AXIS Movement: 1270 mm
Y-AXIS Working Feed: 40 m/min
Z-AXIS Movement: 300 mm
Z-AXIS Working Feed: 20 m/min

Workpiece

Workpiece weight: 210 kg

Max Material thickness

Steel: 9 mm
Stainless steel: 9 mm
Aluminum: 3 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 33 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
