AMADA - Vipros 255PL-PUN-AMA-1999-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used AMADA Vipros 255 CNC Punch Press For Sale

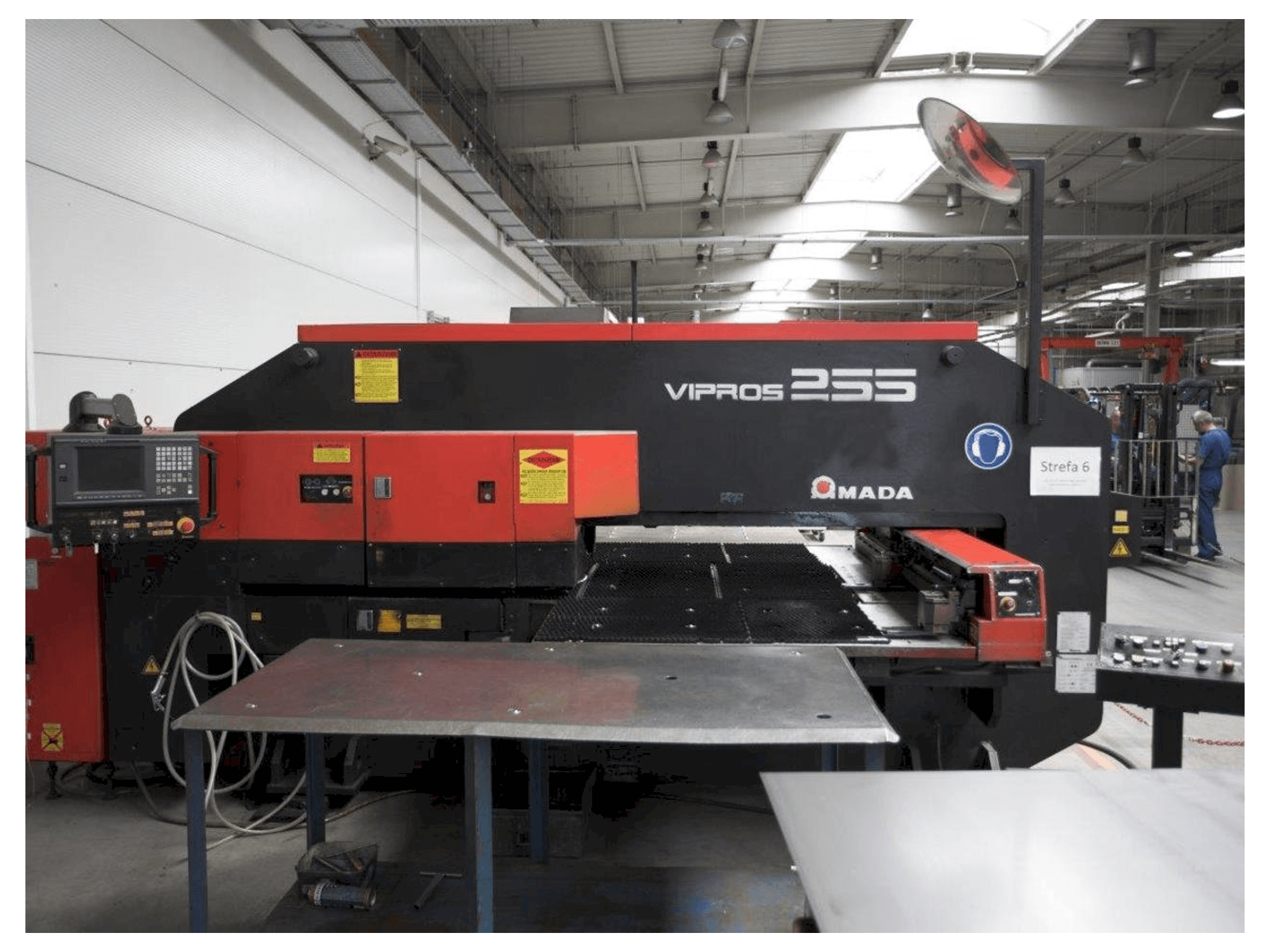

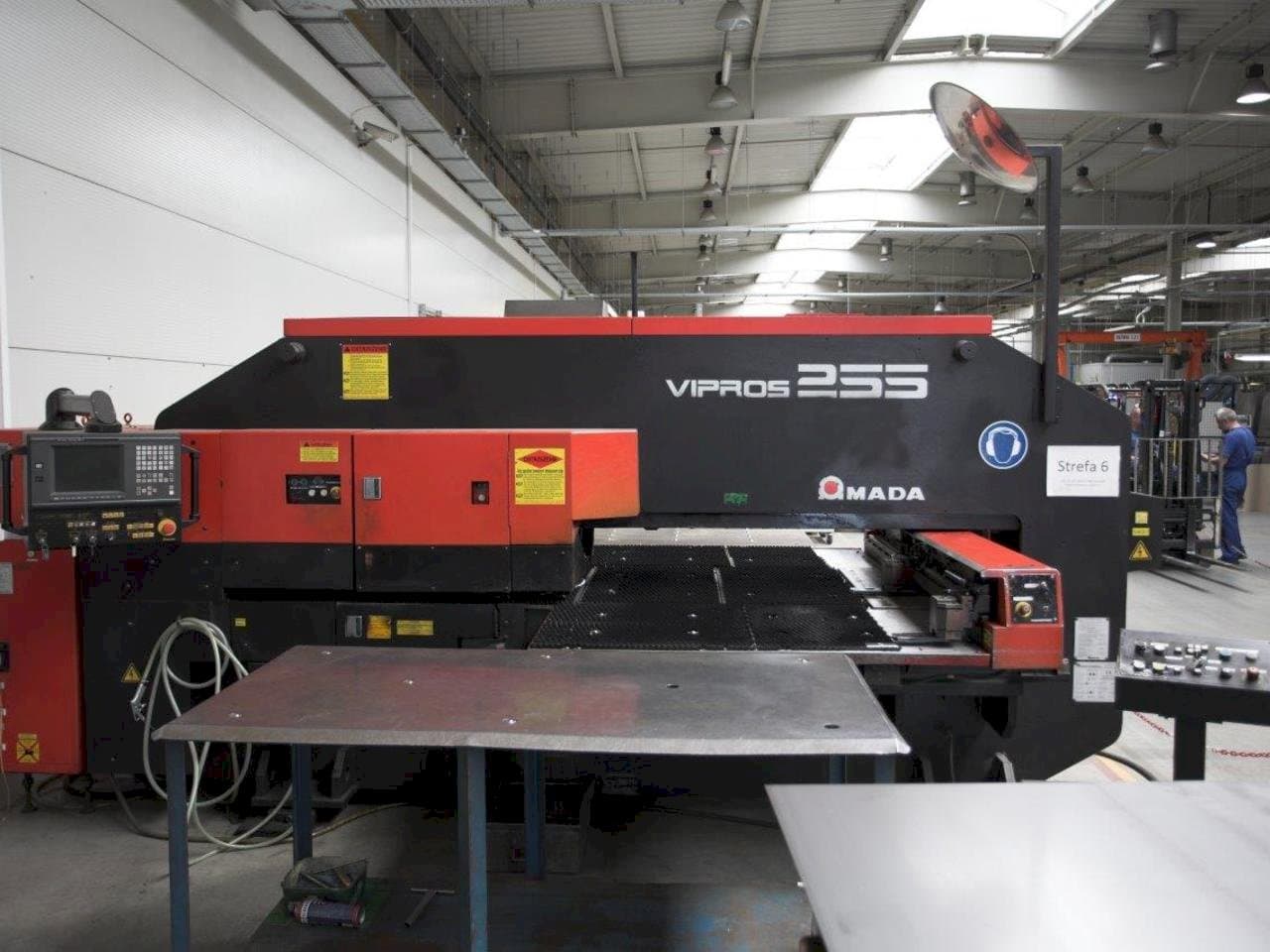

This AMADA Vipros 255 Punching Machine was built in the year 1999 in France. It is equipped with a Fanuc Series 18-P control unit. This machine can perform with a punching force of 200 kN.

Overview

brand: AMADA
year: 1999
MODEL: Vipros 255
application type: Punching
Location: Poland
machine type: CNC Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - AMADA Vipros 255

General Data

Measurements width: 5030 mm
Measurements depth: 2630 mm
Measurements height: 2160 mm
Machine weight: 9200 kg

Control Unit

Model: Series 18-P
Brand: FANUC

Main drive

Punching force: 200 kN
Maximum sheet thickness: 6,4 mm

Table

Outer length: 2540 mm
Outer width: 1270 mm
Table load: 100 kg

Media

Power consumption: 25 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of turret stations (pcs): 31
- - Simultaneous positioning speed (x / y): 89 m/min
- - Number of index tool stations, max: 3
- - Tool rotation, max: 35 r/min
- - Punch diameter max: 88,9 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
