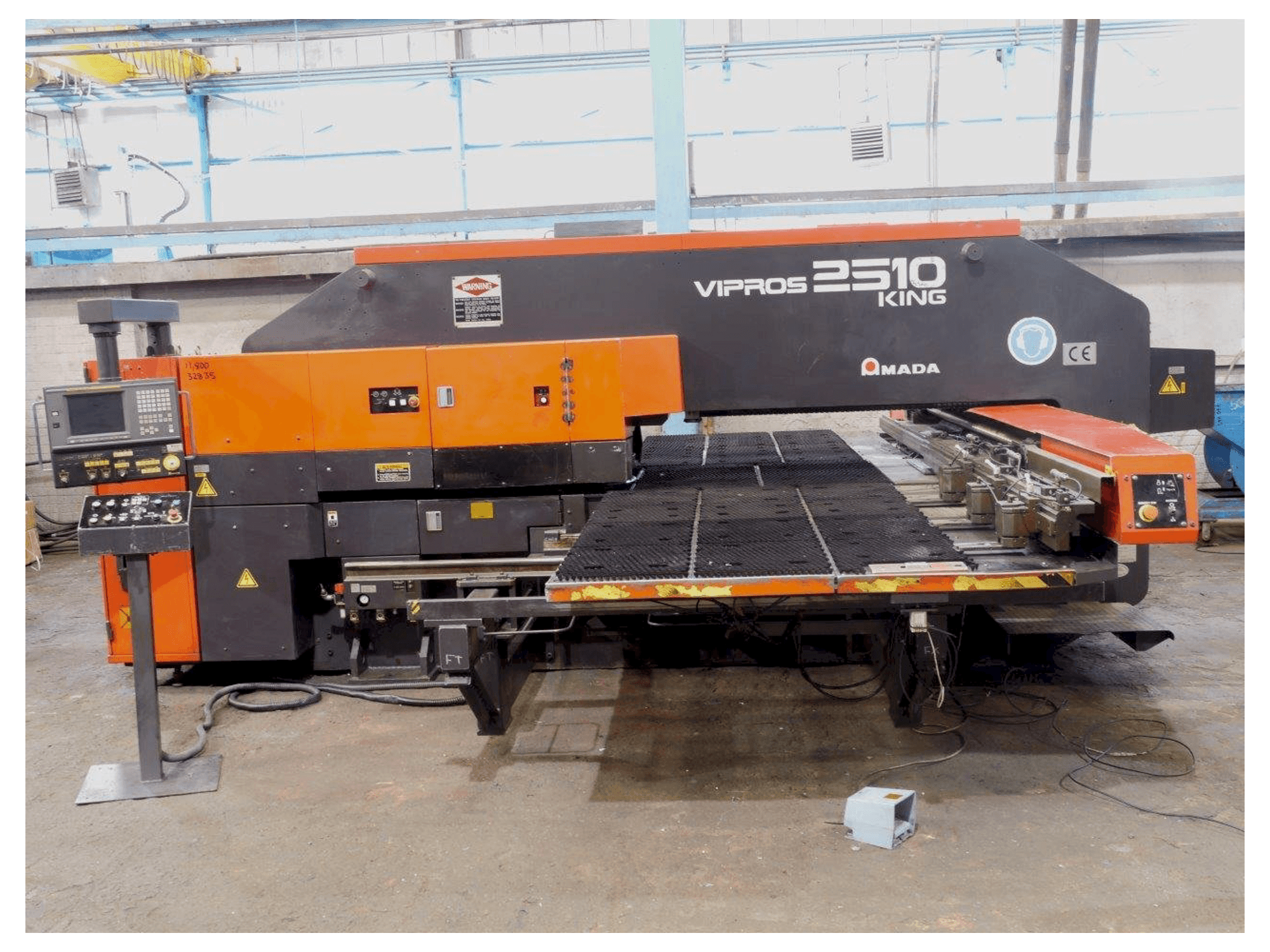

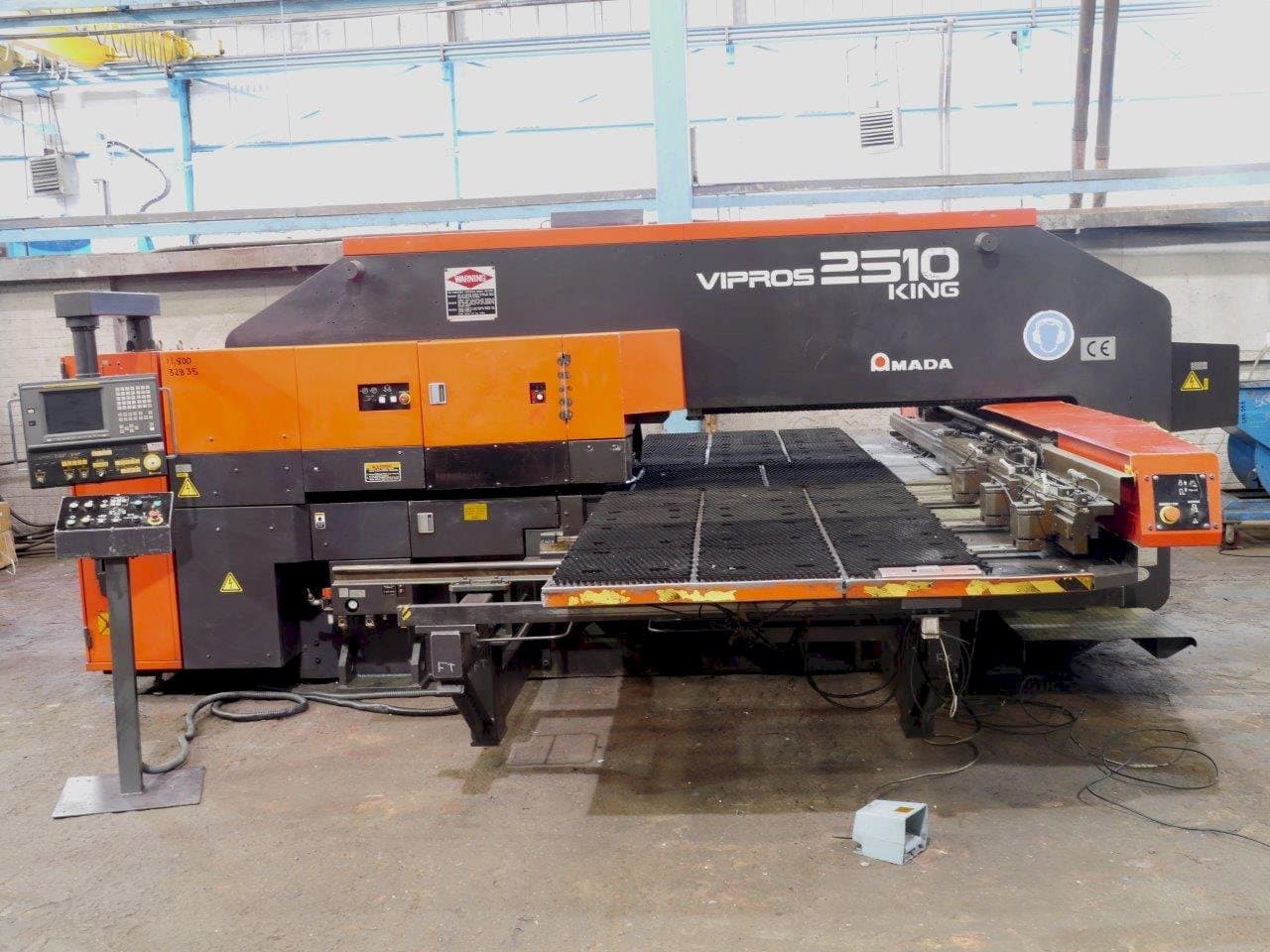

AMADA Vipros S2510 Punching Machine

This AMADA Vipros S2510 Punching Machine was built in 1999 in Japan. It is operated through a FANUC Series 18-P control unit. This machine can work with a punching force of 200 kN.

Overview

brand: AMADA
year: 1999
MODEL: Vipros S2510
production hours: 424
application type: Punching
Location: United Kingdom
machine type: CNC Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - AMADA Vipros S2510

General Data

Measurements width: 5790 mm
Measurements depth: 2280mm
Machine weight: 12680 kg

Control Unit

Model: Series 18‑P
Brand: FANUC

Main drive

Punching force: 200 kN

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1270 mm

Additional Information

Machine history

material thickness: 6. 4 mm

Machine Benefits

Technical Machine Benefits:
- - Press stroke length: 40 mm
- - Sheet size: 250 mm x 2500 mm or 1250 mm x 5000 mm with 1 reposition
- - Sheet weight: 150kgs
- - Hit rate: x axis 25. 4mm pitch = 350, y axis 25. 4 mm pitch = 280
- - Feed rate: x axis = 100 m/min , y axis = 80 m/min
- - Input: 415/3/50
- - Fitted with: brush tables, "sick " infra red lightguards, quantity of tooling
- - Equipment: dryer
- - Length: floor area required 6. 09 m

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
