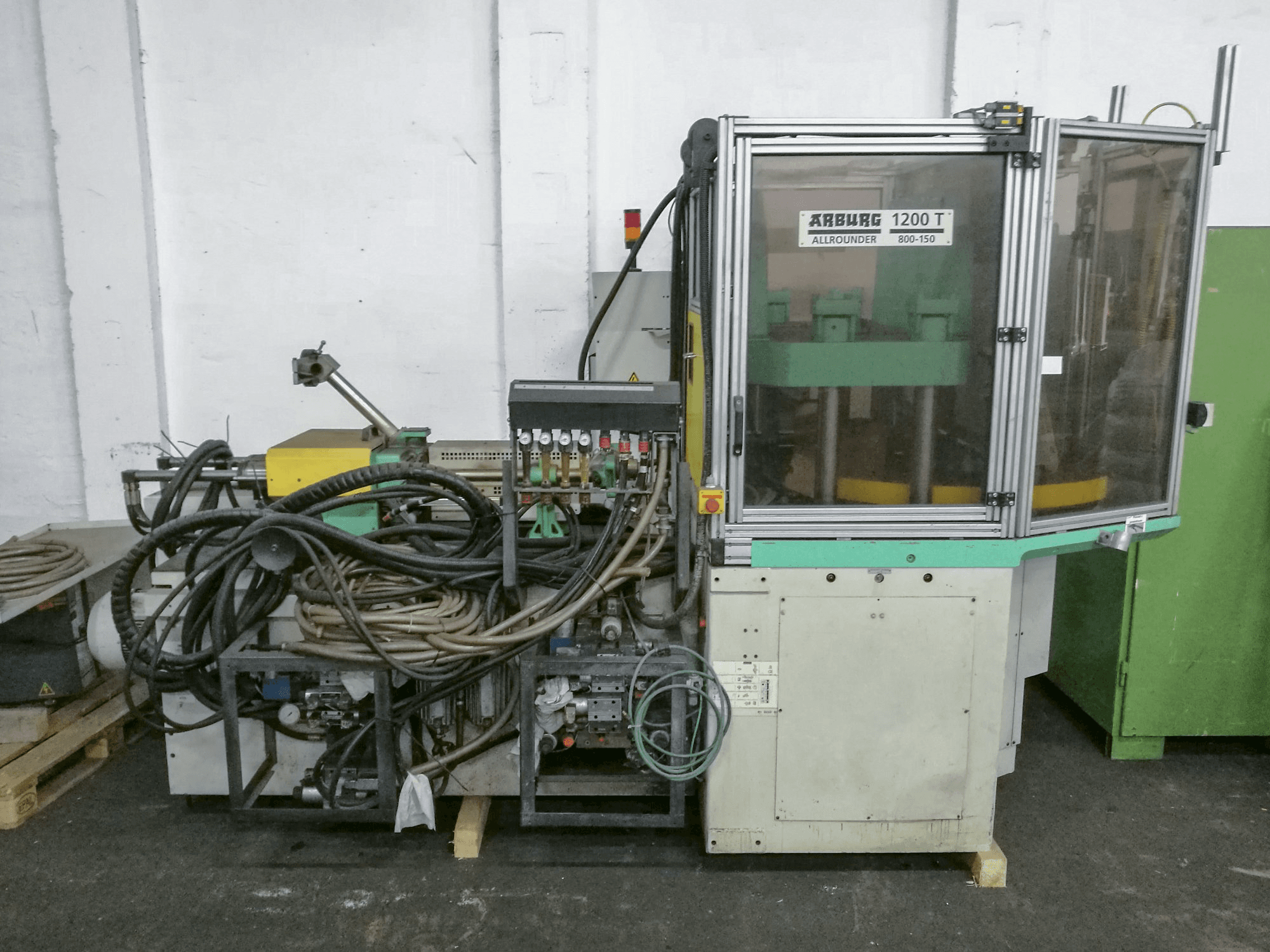

Arburg 1200TS 800-150 Injection Moulding Machine

This Arburg 1200TS 800-150 Injection Moulding Machine was manufactured in the year 2000 in Germany and has a working record of approximately 72000 production hours. During the past, this machine was producing diverse coverings for the automotive industry.

Overview

brand: Arburg
year: 2000
MODEL: 1200TS 800-150
production hours: 72000
application type: Injection Moulding
Location: Germany
machine type: Vertical Injection Moulding Machine
availability: Sold

Technical Information - Arburg 1200TS 800-150

General Data

Measurements width: 4360 mm
Measurements depth: 1718 mm
Measurements height: 2211 mm
Machine weight: 7200 kg

Injection Unit

Screw diameter: 20/25/30 mm
Shot weight: 29/45/65 g/PS
Stroke volume: 31/49/71 cm³
Injection pressure: 2500/2000/1390 bar
Screw speed: 11/14/17 1/min
Heating capacity: 4.9 kW
Adjustable heating zones: 5
Nozzle pressure: 50 kN

Clamping unit

Clamping force: 800 kN
Opening stroke: 300 mm
Max open daylight: 600 mm
Mould height max: 300 mm
Ejector stroke: 175 mm
Ejector force for / back: 45 kN

Media

Main electronic connection: 400 V
Oil water separator: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
