Arburg 320 M 850-210 Injection Moulding Machine

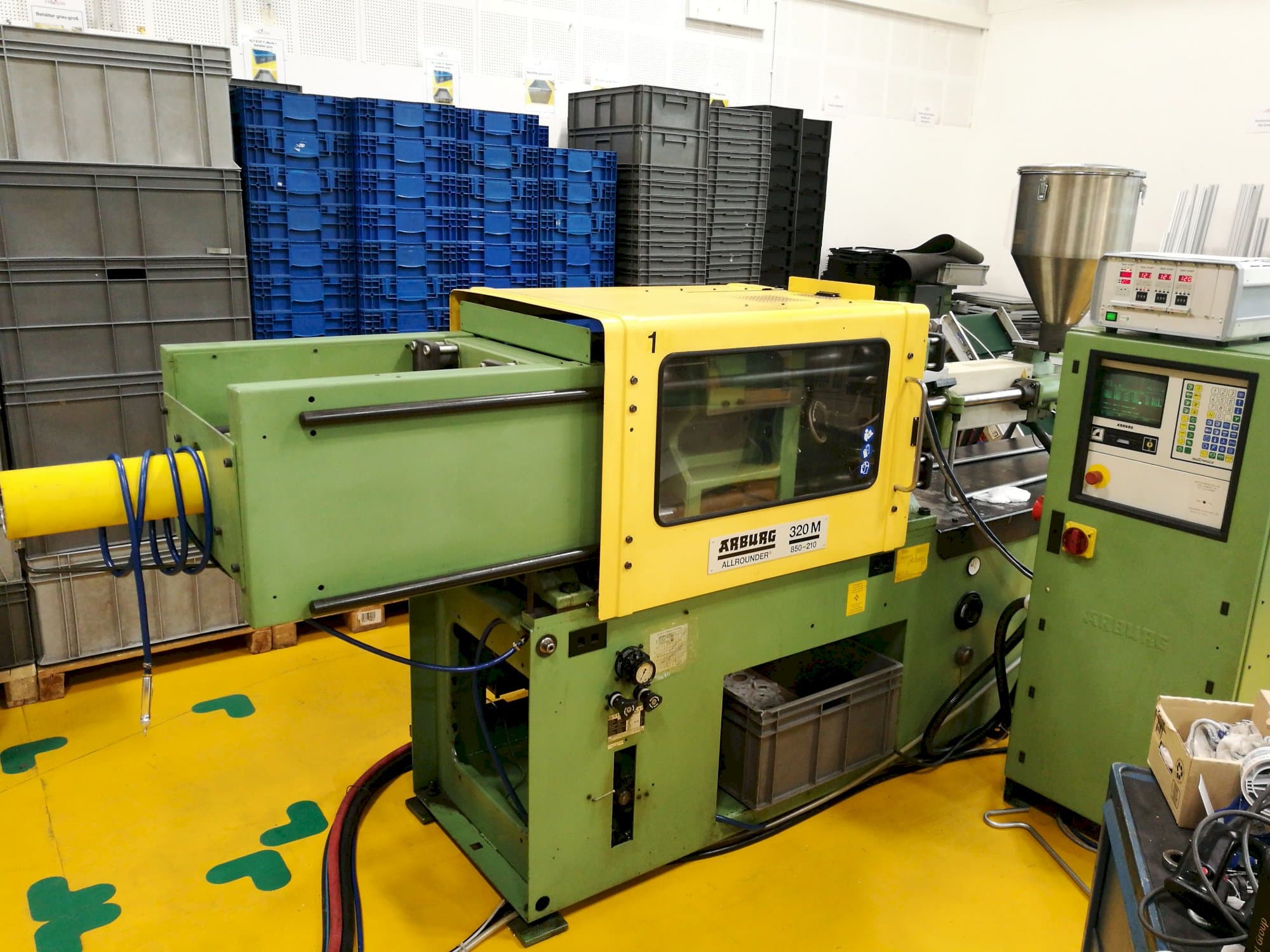

This Arburg 320 M 850-210 Injection Moulding Machine was manufactured in 1990 in Germany and shows a production history of 70182 hours. Equipped with an Arburg Multronica Control unit, this machine offers a clamping force of 850 kN, capable of working up to 4 mm of material thickness. A Nozzle in parting line is included as additional equipment.

Overview

brand: Arburg
year: 1990
MODEL: 320 M 850-210
production hours: 70182
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg 320 M 850-210

General Data

Measurements width: 4300 mm
Measurements depth: 1850 mm
Measurements height: 2000 mm
Machine weight: 3060 kg

Control Unit

Model: MULTRONICA
Brand: ARBURG

Injection Unit

Screw diameter: 35 mm
Stroke volume: 144 cm3 CM³
Injection pressure: 1500 bar

Clamping unit

Clamping force: 850 kN
Opening stroke: 375 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 24 kW
Internal cooling: Yes

Additional Equipment

- Nozzle in parting line

Additional Information

Machine history

Material type: Plastic
material thickness: 4 mm
End product: Plastic parts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
