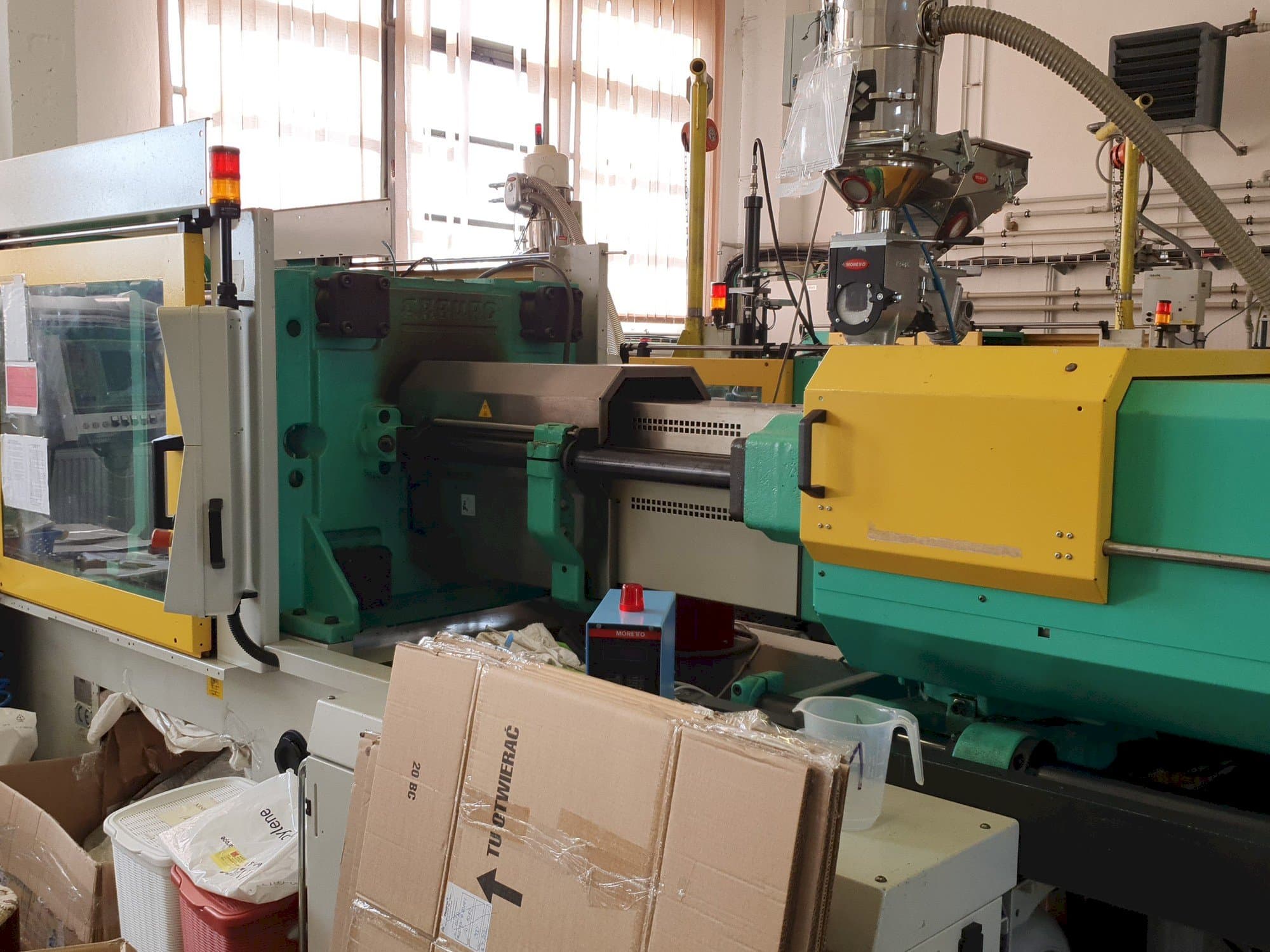

Arburg 570C 2200 - 1300 Injection moulding machine

This Arburg 570C 2200 - 1300 Injection moulding machine was made in Germany in 2006. It has been working for 14389 hours. It can works with a clamping force 2200 kN, screw diameter of 60 mm, and an opening stroke 650 mm. Includes 2 core pulls, hydraulic and pneumatic controlled nozzles. Very good condition, regularly maintained.

Overview

brand: Arburg
year: 2006
MODEL: 570C 2200 - 1300
production hours: 14389
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg 570C 2200 - 1300

General Data

Machine weight: 9090 KG

Injection Unit

Screw diameter: 60 mm
Shot weight: 607 g/PS
Stroke volume: 664 cm³
Heating capacity: 23 kW

Clamping unit

Clamping force: 2200 kN
Opening stroke: 650 mm
Distance between bars: 570 mm
Mould height min: 300 mm
Mould height max: 950 mm
Size of mold platens: 795 x 795 mm

Media

Main electronic connection: 3 x 50Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2 core pullers
- - Hydraulic controlled nozzles: 9
- - Pneumatic controlled nozzles: 2
- - Number of hot zones: 6
Qualitative Machine Benefits:
- - Very good condition
- - Regularly maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
