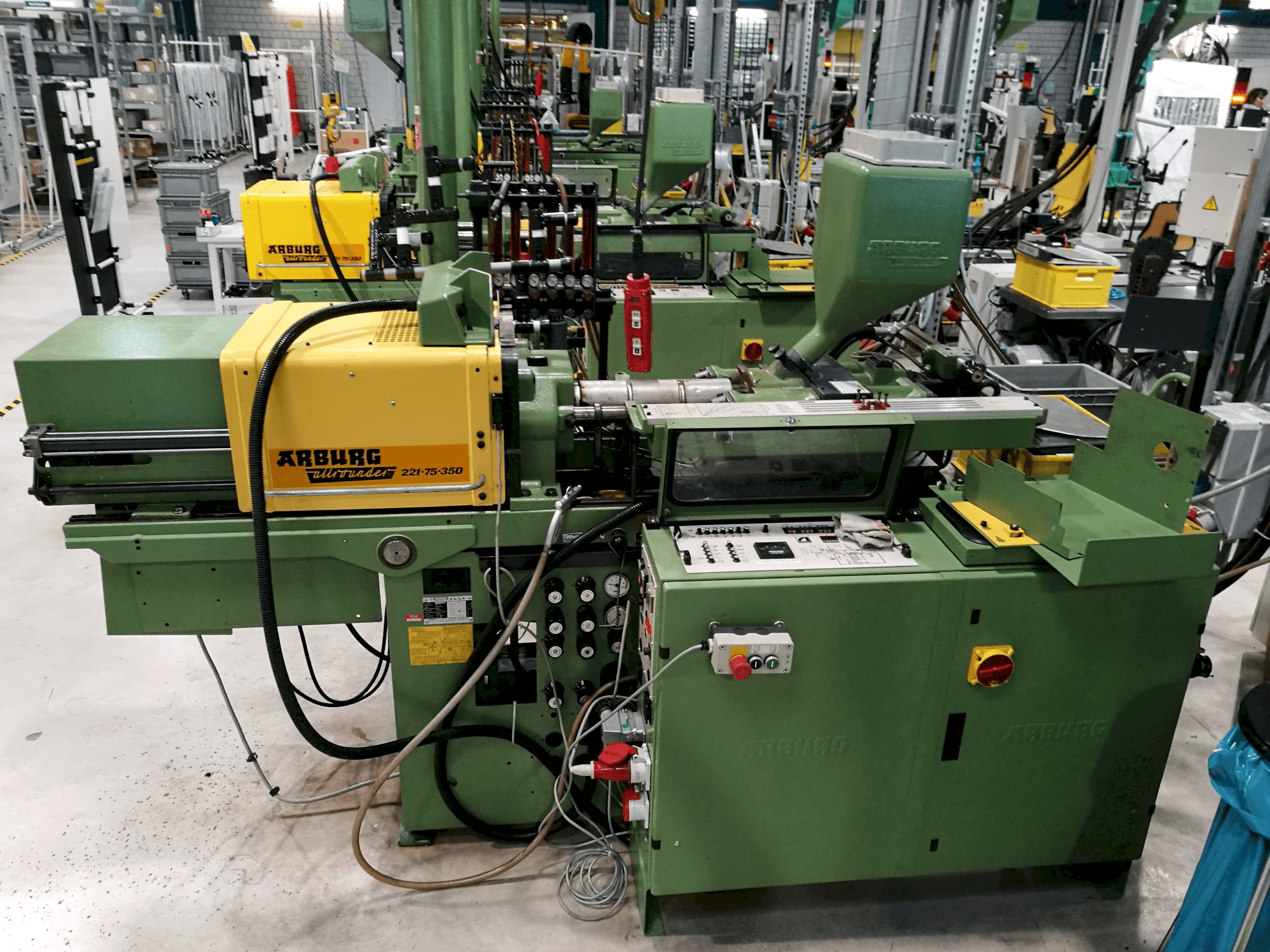

➤ Used ARBURG Allrounder 221-75-350 | Injection Moulding Machine

This Arburg Allrounder 221-75-350 Injection Moulding Machine was manufactured in 1990 in Germany and has a production time of 33941 working hours. Operated through an Arburg Polytronica Control unit, this machine counts with a clamping force of 350 kN and an injection pressure of 1570 bar.

Overview

brand: Arburg
year: 1990
MODEL: Allrounder 221-75-350
production hours: 33941
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg Allrounder 221-75-350

General Data

Measurements width: 2700 mm
Measurements depth: 1200 mm
Measurements height: 2100 mm
Machine weight: 970 kg

Control Unit

Brand: ARBURG
Model: Polytronica
CNC main language: German

Injection Unit

Screw diameter: 22 mm
Stroke volume: 38 cm³
Injection pressure: 1570 bar
Screw speed: 400 rpm
Heating capacity: 3.46 kW

Clamping unit

Clamping force: 350 kN
Opening stroke: 200 mm
Max open daylight: 475 mm
Distance between bars: 221 mm
Mould height min: 150 mm
Mould height max: 300 mm
Size of mold platens: 346 mm
Ejector stroke: 100 mm
Ejector force for / back: 17 kN

Media

Main electronic connection: 380 V
Power consumption: 11 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
