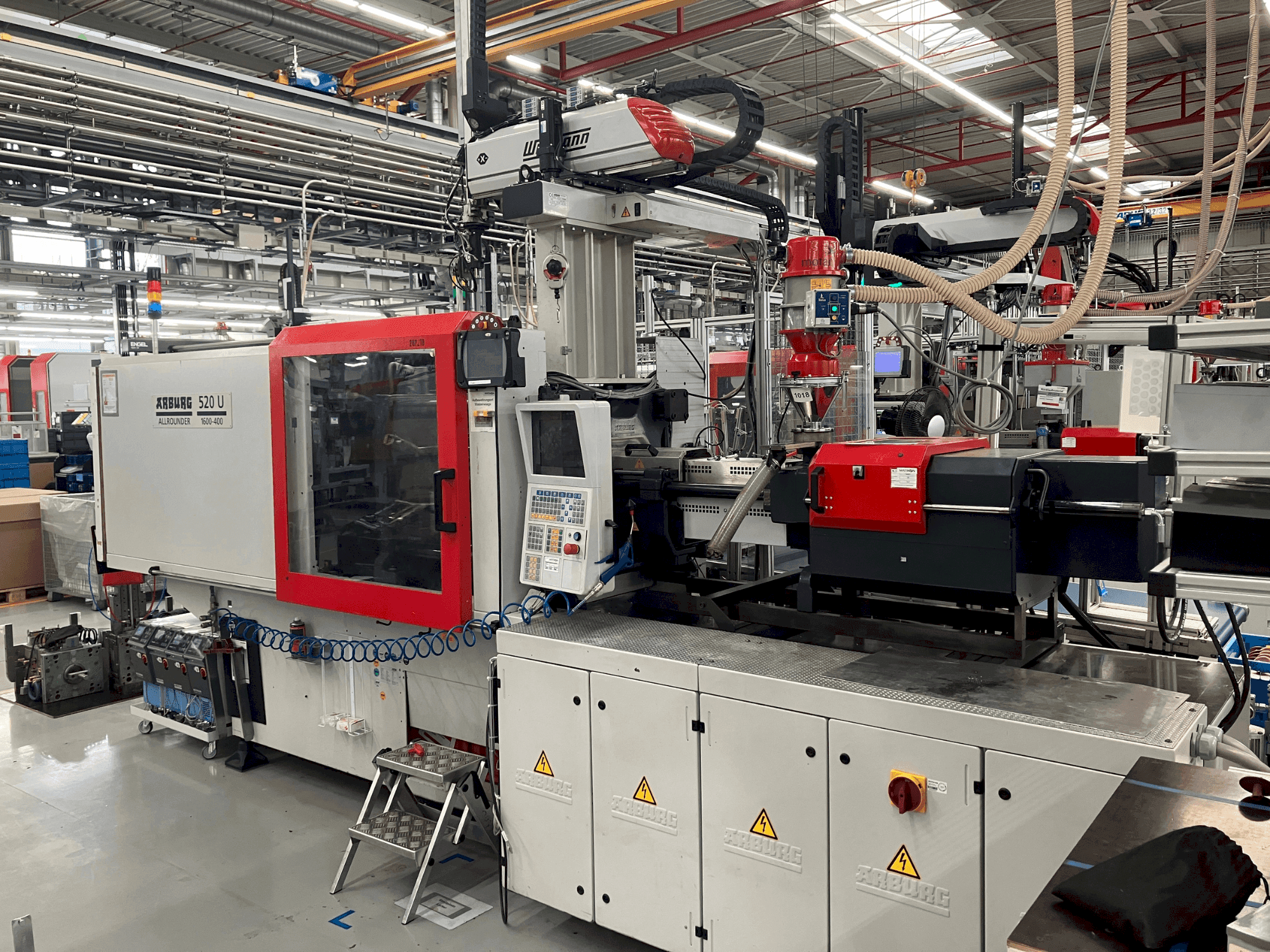

Arburg - Allrounder 520 U 1600-400DE-INJ-ARB-2007-00006
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Arburg Allrounder 520 U 1600-400 For Sale
This Arburg Allrounder 520 U 1600-400 was manufactured in 2007. A hydraulic injection moulding machine, it offers robust performance for your production needs. Consider the opportunity to buy this Arburg Allrounder 520 U 1600-400 hydraulic injection moulding machine. Contact us for more information.
Overview
- brand: Arburg
- year: 2007
- MODEL: Allrounder 520 U 1600-400
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: 01 07 2025
Technical Information - Arburg Allrounder 520 U 1600-400
Injection Unit
- Screw diameter: 35 mm
- Stroke volume: 154 ccm CM³
- Injection pressure: 2500 bar
Clamping unit
- Clamping force: 160 kn
- Max open daylight: 575 mm
- Distance between bars: 520 mm
- Mould height min: 350 mm
Additional Information
- Technical Machine Benefits:
- - Maximum plate distance: 925 mm
- - Temperature control unit 2, 3 & 4: 160 °c
- - Number of thermolators: 4
- - Thermolator max temperature: 4xhb160
- - Series: 3xserie5 1xserie4
- - Type of controller: intern
- - Cold water cycles max (tool, fixing site): 2
- - Temperature sensor (mold): yes
- - Robot: quick coupling 1 (qca90), communication connector 9-pol, robot vacuum circles number 8, robot gripper circles number 2, robot axes x, y, z, c, b.
- - Tray type: standard
- Qualitative Machine Benefits:
- - Oil filling quantity: 250 l
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
