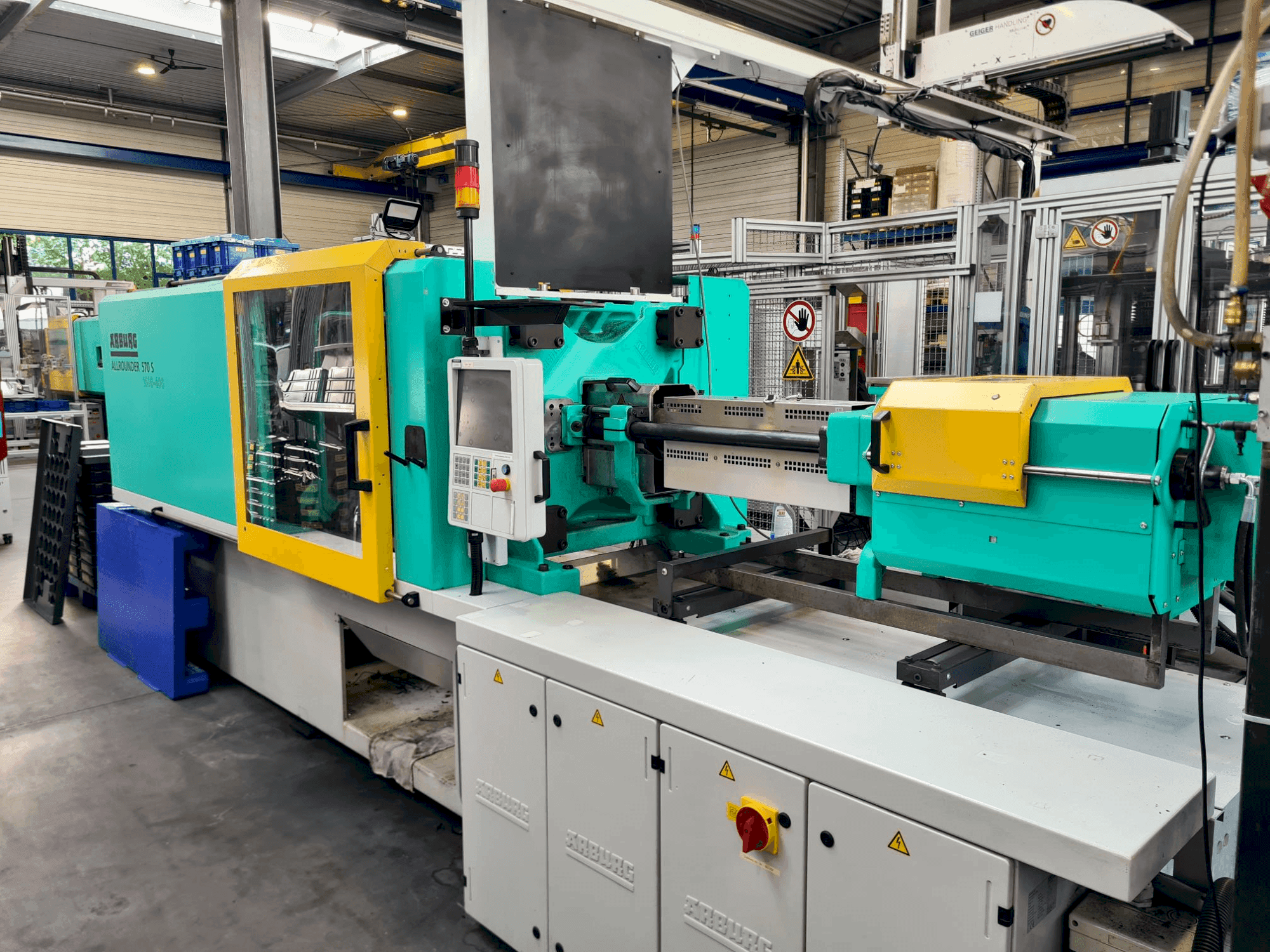

This Arburg Allrounder 570S 1600-400 was manufactured in 2017. A robust injection moulding machine featuring a clamping force of 1600 kN and a screw diameter of 40 mm, ensuring precise and efficient operation. It includes a Midi-Liner handling system by Geiger, enhancing its automation capabilities. Ideal for producers looking for a reliable machine with significant production capacity. For more information about this injection moulding machine, please reach out to us.
Overview
- brand: Arburg
- year: 2017
- MODEL: Allrounder 570S 1600-400
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Immediately
Technical Information - Arburg Allrounder 570S 1600-400
Main drive
- Main motor power: 30 kW
Injection Unit
- Screw diameter: 40 mm
- Stroke volume: 201 cm³
- Injection pressure: 2000 bar
Clamping unit
- Clamping force: 1600 kN
- Opening stroke: 575 mm
- Max open daylight: 1200 mm
- Distance between bars: 570 x 570 mm
- Mould height min: 550 mm
- Size of mold platens: 795 x 795 mm
Additional Equipment
- - Handling equipment: Midi-Liner (Geiger)
- - Robot: YASKAWA DX200
- - Handling: Geiger Handling
Additional Information
- Technical Machine Benefits:
- - Oil tank capacity: 390 l
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
