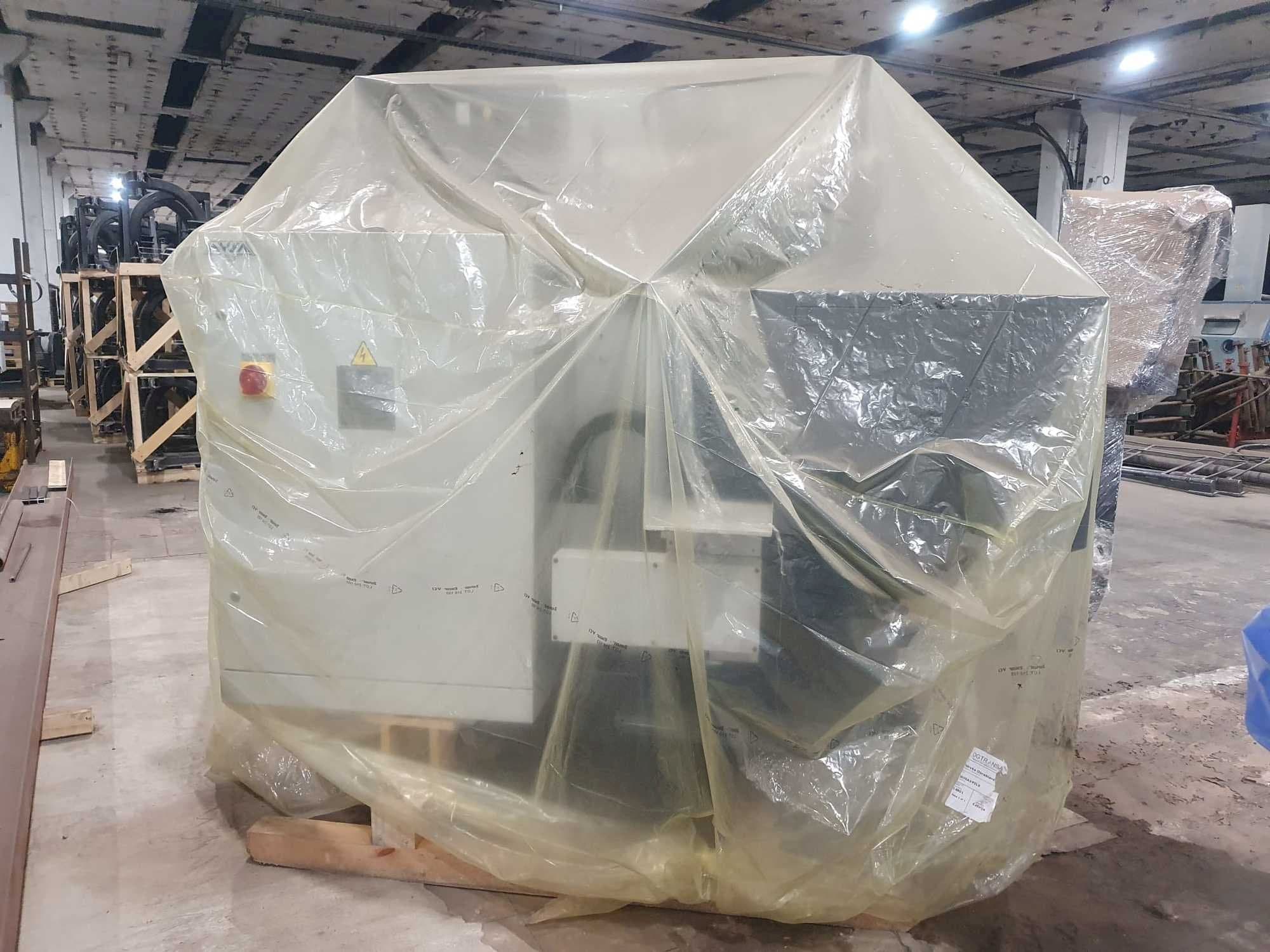

Avia FOP FNE 50P Universal Machining center

This Avia FOP FNE 50P Universal Machining center was manufactured in the year 2021 in Poland has never been used. It is equipped with an Avia control unit and has 3 axis. The machine has a spindle speed of 4000 rpm.

Overview

brand: Avia
year: 2021
MODEL: FOP FNE 50P
production hours: 0
application type: Milling
Location: Latvia
machine type: Universal Machining Centre
availability: Sold

Technical Information - Avia FOP FNE 50P

General Data

Measurements width: 2450 mm
Measurements depth: 3200 mm
Measurements height: 2100 mm
Machine weight: 3000 kg

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 7,5 kW
Tool taper: ISO 40
Number of axis: 3

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 420 mm

Table

Outer length: 1000 mm
Outer width: 500 mm

Tools

Max weight: 7 kg
Max tool diameter: 160 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque: 198,8nm
- - Quill travel: 80 mm
- - Swivel head angle degree: ±45.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
