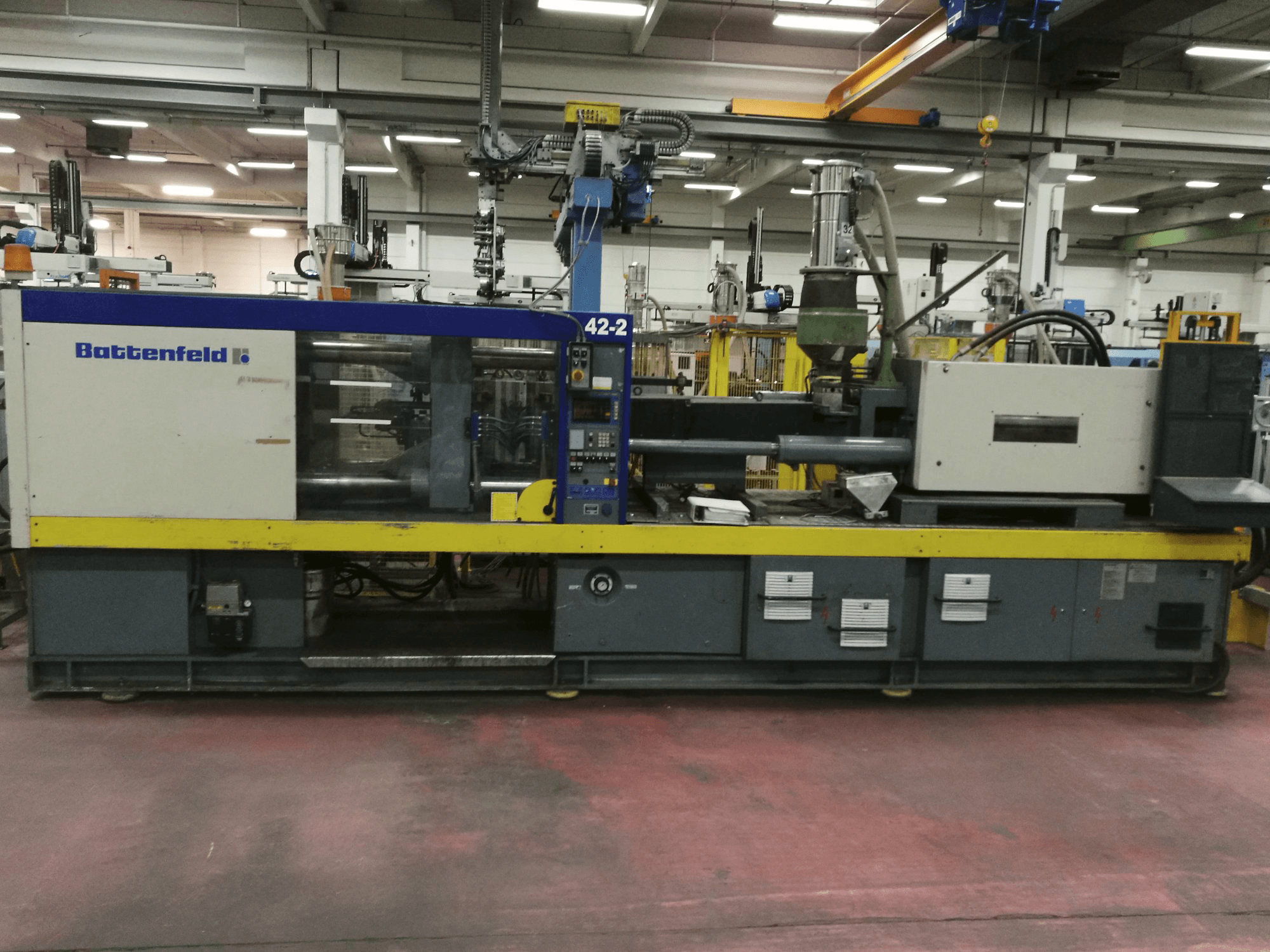

Injection Moulding Machine Battenfeld BKT 2500/1400

This Injection Moulding Machine Battenfeld BKT 2500/1400 from 1990 was manufactured in Germany and has a production record of 102727 working hours since then. This machine is equipped with an Unilog 4000 Control unit and includes an additional core pull cylinder. During the past, this model has mainly worked with PP56M10 polymer, producing wheels for shopping carts.

Overview

brand: Battenfeld
year: 1990
MODEL: BKT 2500/1400
production hours: 102727
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Battenfeld BKT 2500/1400

General Data

Measurements width: 8020 mm
Measurements depth: 1360 mm
Measurements height: 2049 mm
Machine weight: 13950 kg

Control Unit

Model: 4000

Injection Unit

Screw diameter: 65 mm
Injection pressure: 1714 bar
Plasticizing rate max.: 669 g/s PS
Screw speed: 98 / 185 1/min
Nozzle pressure: 150 kN

Clamping unit

Clamping force: 2500 kN
Max open daylight: 550 mm
Distance between bars: 580 x 580 mm
Mould height min: 250 mm
Mould height max: 600 mm
Size of mold platens: 900 mm
Ejector stroke: 160 mm
Ejector force for / back: 54 kN

Media

Main electronic connection: 380 V / 50 Hz
Air pressure: 6 bar
Lubrication tank: 2.7 L
Oil tank: 400 L
Oil water separator: Yes
Internal cooling: Yes

Additional Equipment

- Core pull cylinder

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
