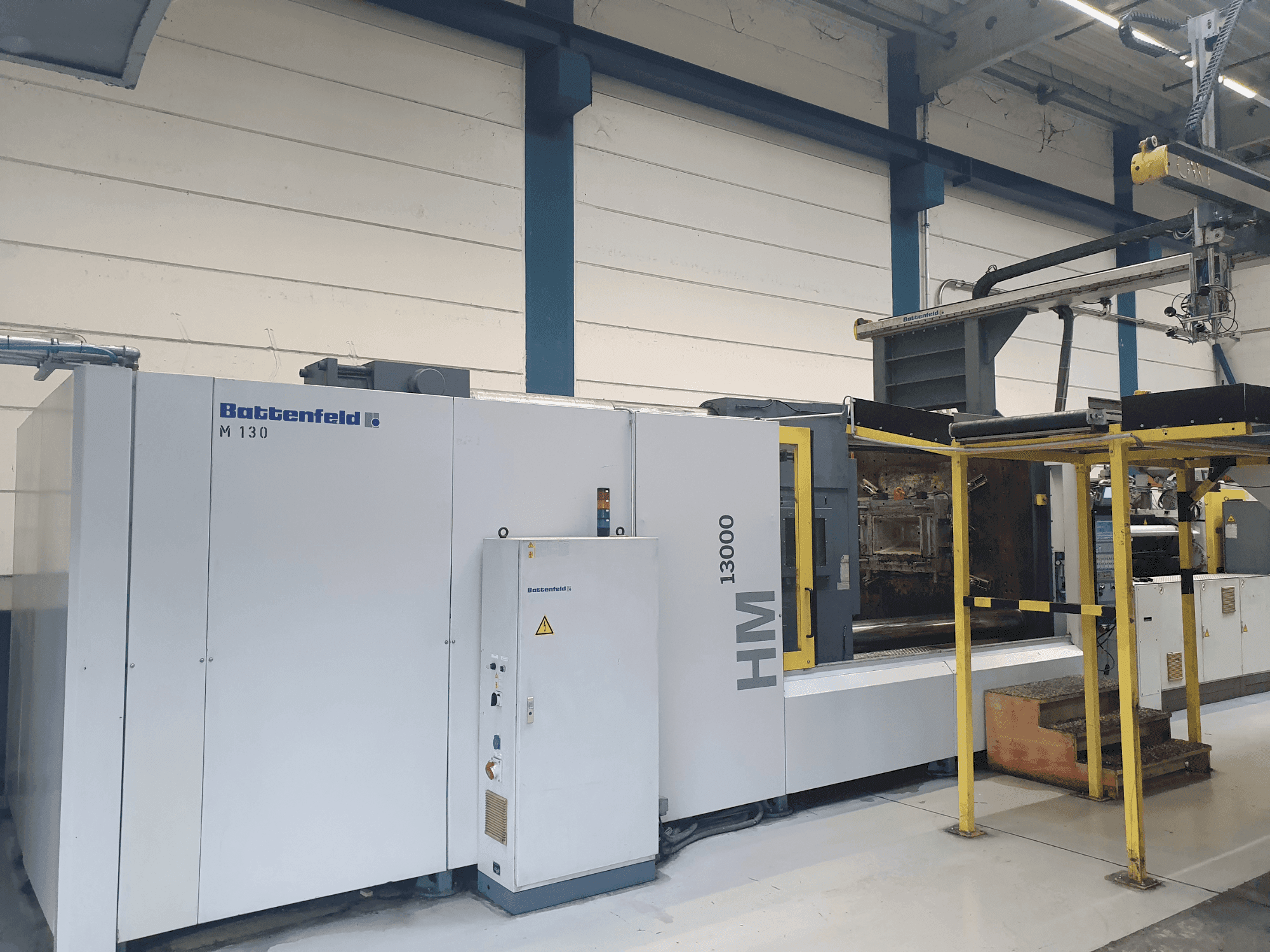

This Battenfeld HM 13000/12000 was manufactured in 2001. A robust injection moulding machine featuring a Unilog 9000C control system, clamping force of 13,000 kN, and a screw diameter of 120 mm. It supports a maximum opening travel of 1650 mm and a total installed power of 257.9 kW. Ideal for large-scale production, the Battenfeld HM 13000/12000 machine we have for sale represents a significant opportunity. Contact us for more information.
Overview
- brand: Battenfeld
- year: 2001
- MODEL: HM 13000/12000
- production hours: 84131
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- control unit brand: Unilog
Technical Information - Battenfeld HM 13000/12000
Control Unit
- Brand: Unilog
- Model: 9000C
Injection Unit
- Screw diameter: 120 mm
- Shot weight: 6,175 (PS), 4,816 (PP)
- Stroke volume: 6782 CMM CM³
- Injection pressure: 1765 bar
Clamping unit
- Clamping force: 13000 kn
- Opening stroke: 1650 mm
- Distance between bars: Horizontal - 1600 mm; Vertical - 1200 mm
- Mould height min: 500 mm
- Mould height max: 1200 mm
- Ejector stroke: 600 mm
Additional Equipment
- - Handling equipment (excluding conveyor belts)
Additional Information
- Technical Machine Benefits:
- - Max. Plate distance mm: 2850
- - Panel (w x h): 2200 x 1880 mm
- - Max. Nozzle immersion depth mm: 100
- - Core pulls piece: 2
- - Total install. Power : 257. 9 kw
- - Heating capacity : 80. 9 kw
- - Motor power (hydr. ): kw 137
- - Closing side centring ring: 250mm
- - Centring ring spray side: 250 mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
