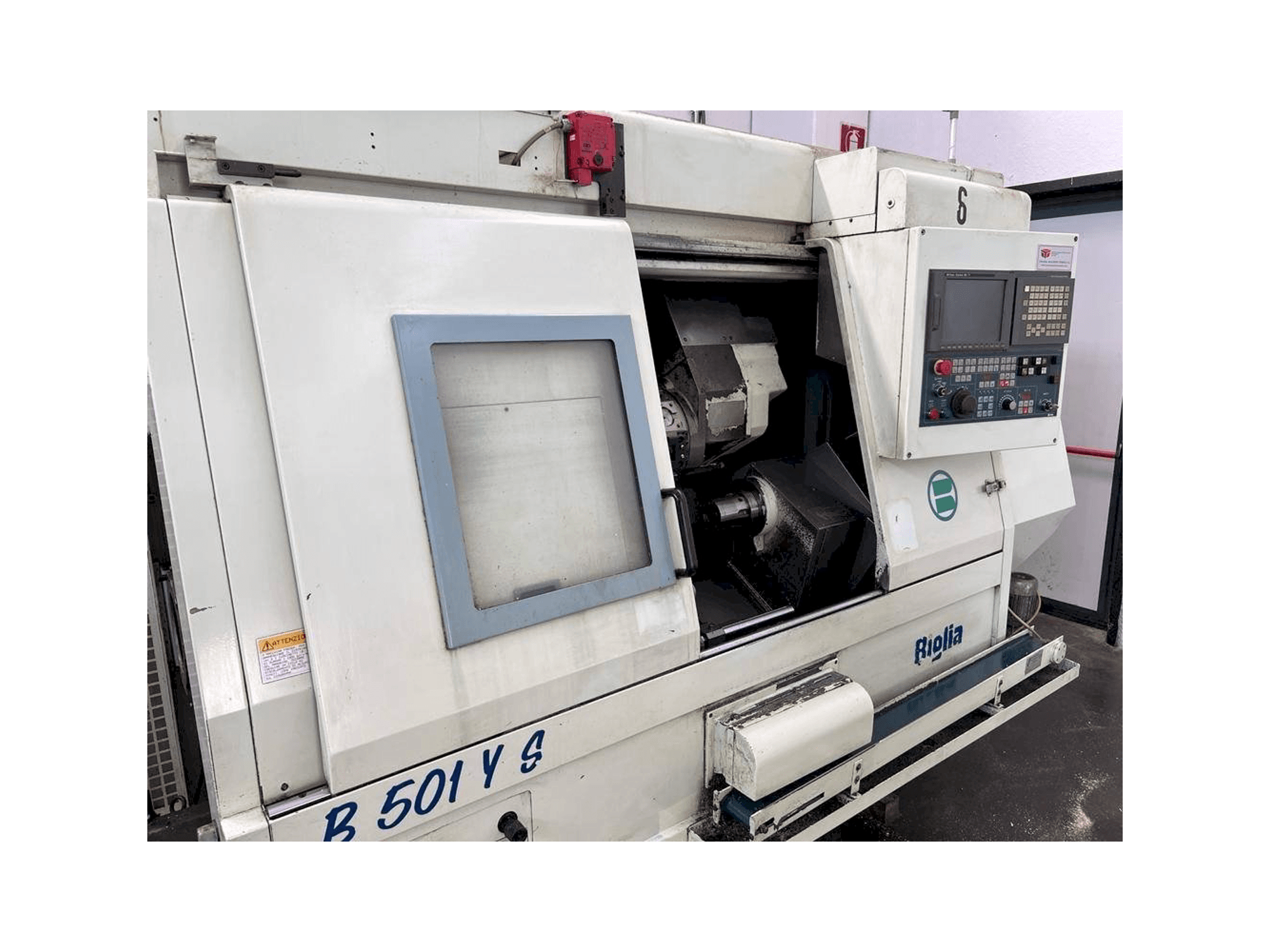

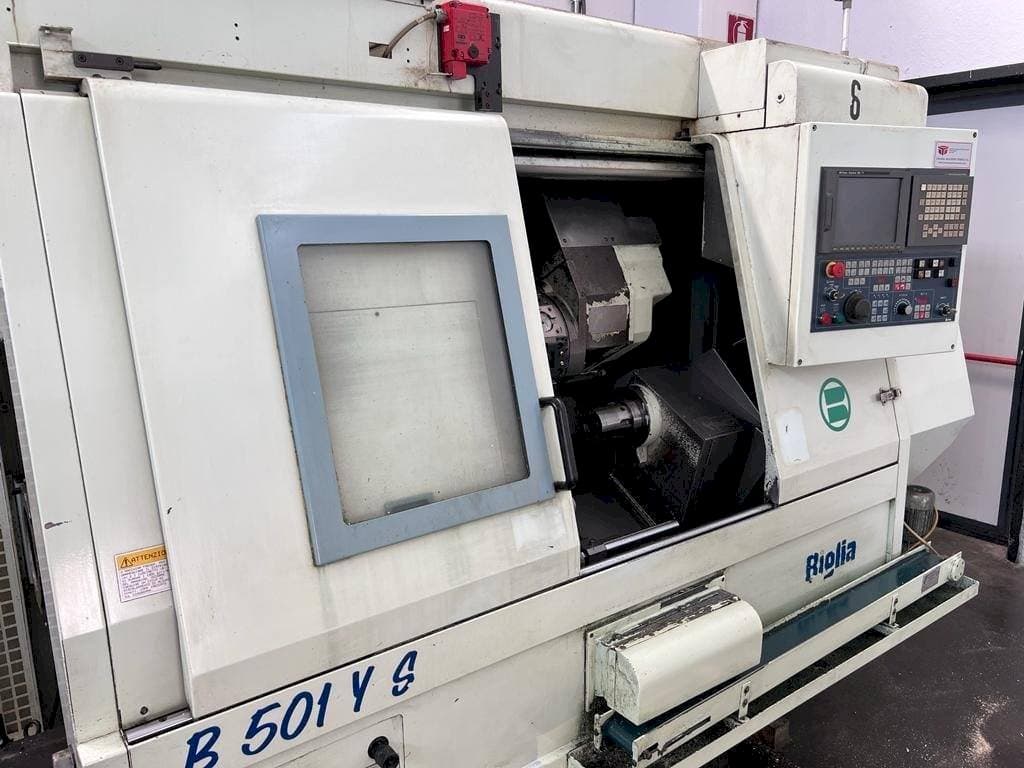

Biglia B501YS lathe

This Biglia B501YS lathe was manufactured in the year 1999 and retrofitted in 2017, has 9992 hours since retrofitting. It is equipped with a FANUC 18I-T control unit. The machine has a main spindle speed of 4000 rpm and is in perfect condition.

Overview

brand: Biglia
year: 1999
MODEL: B501YS
production hours: 9992
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - Biglia B501YS

General Data

Measurements width: 4000 mm
Measurements depth: 2000 mm
Measurements height: 2200 mm
Machine weight: 5100 kg

Control Unit

Model: 18I-T
Brand: FANUC

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 22KW

Movement

X-AXIS Movement: 200 mm
Y-AXIS Movement: 120 mm
Z-AXIS Movement: 500 mm
B-AXIS Movement: 510 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle
- - Max turn diameter: 320mm
- - Max bar diameter: 68mm
- - Spindle nose: asa 6
- - Sub spindle
- - Spindle nose: asa 5
- - Max bar diameter: 41mm
- - Spindle speed: 4000rpm
- - Spindle power: 7. 5kw
- - Turret with 12 live tools, 3000 rpm on the live tools
Qualitative Machine Benefits:
- - Machine retrofitted in 2017
- - Perfect condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
