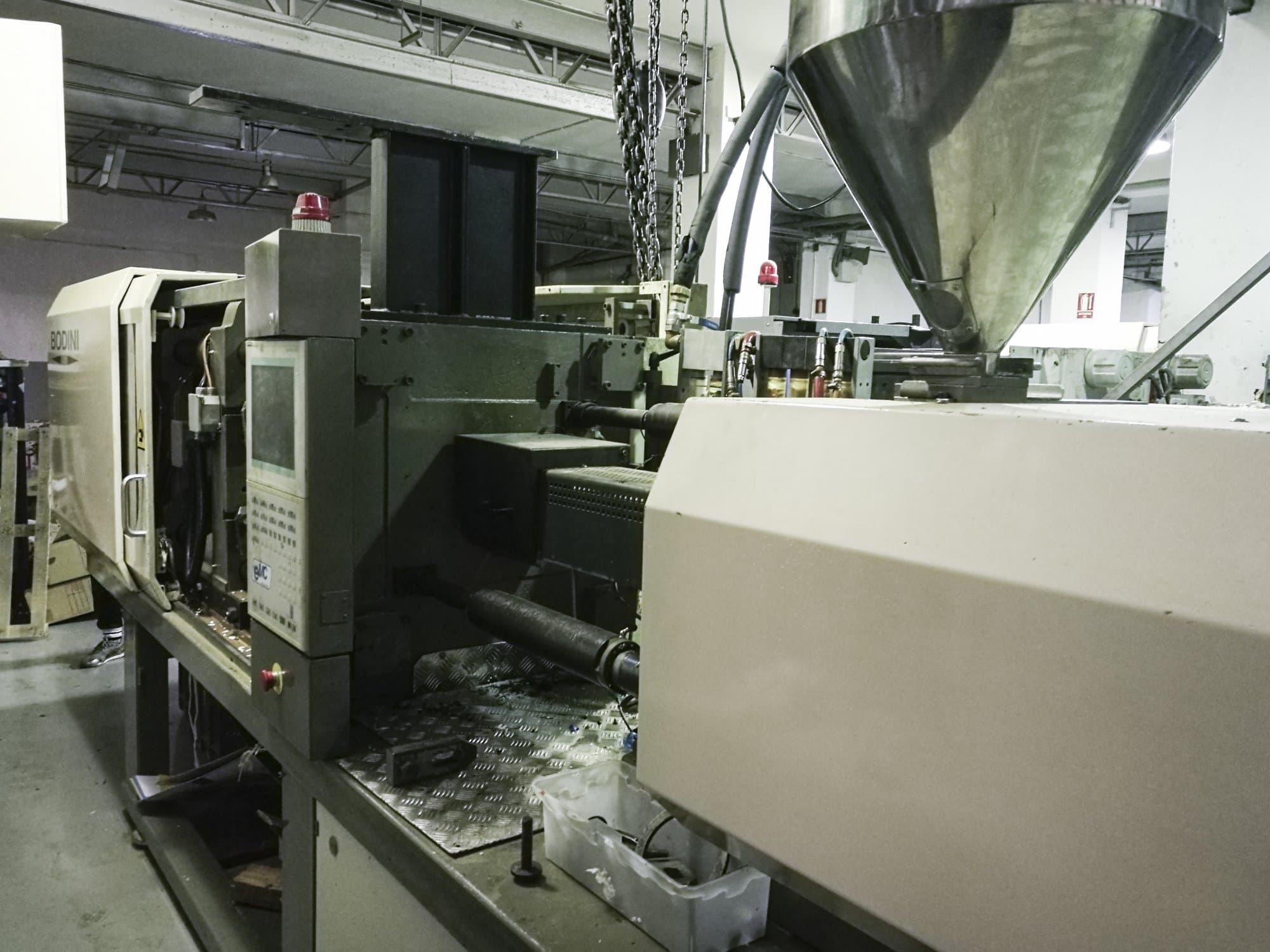

BODINI ELEDRIVE 165 Injection Moulding Machine

This BODINI ELEDRIVE 165 Injection Moulding Machine was manufactured in Italy in 2006, and has a record of about 10000 production hours. With a clamping force of 1650 kN, the machine has handled mainly polypropylene in the past and stands in excellent conditions due to regular maintenance.

Overview

brand: BODINI
year: 2006
MODEL: ELEDRIVE 165
production hours: 10000
application type: Injection Moulding
Location: Spain
machine type: Electrical Injection Moulding Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - BODINI ELEDRIVE 165

General Data

Measurements width: 5230 mm
Measurements depth: 1200 mm
Measurements height: 2010 mm

Control Unit

Model: SIMATIC MULTI PANEL TOUCH
Brand: SIEMENS

Injection Unit

Screw diameter: 45 mm
Stroke volume: 342 cm³
Injection pressure: 1700 bar
Plasticizing rate max.: 32 g/s PS
Screw speed: 400 1/min
Heating capacity: 10,5 kW

Clamping unit

Clamping force: 1650 kN
Opening stroke: 470 mm
Distance between bars: 510 x 510 mm
Ejector stroke: 165 mm
Ejector force for / back: 30 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
