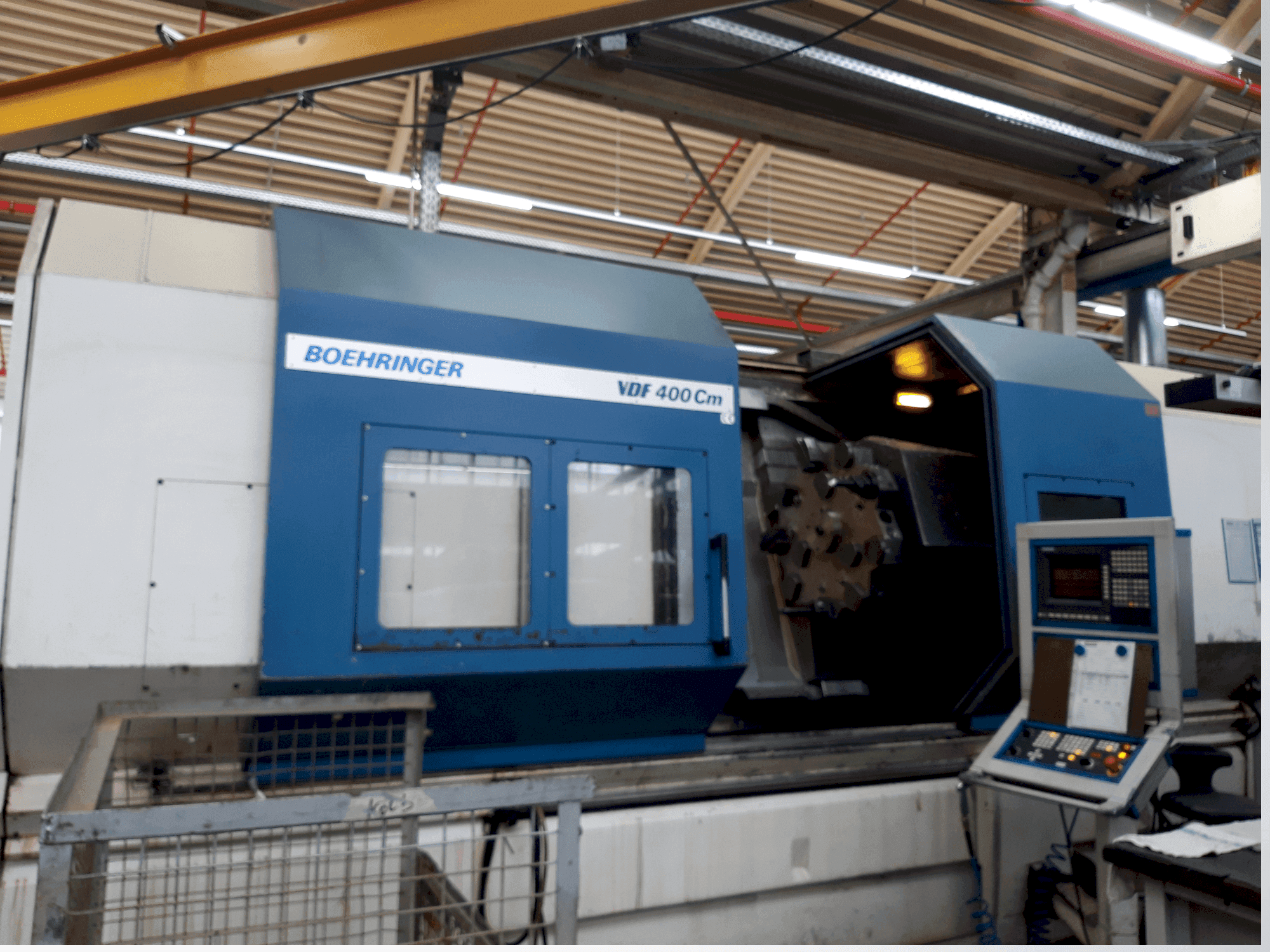

Front view of BOEHRINGER VDF 400 CM  machine

BOEHRINGER - VDF 400 CMDE-TUR-BOE-1998-00002

20,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Lathes was manufactured in 1998. The BOEHRINGER VDF 400 CM features a Siemens Sinumerik 840 C control, a spindle bore of 132 mm, and a maximum turning diameter of 700 mm. It includes a high-capacity coolant system and an integrated chip conveyor for efficient operation. Ideal for those looking to buy this BOEHRINGER VDF 400 CM Lathes. Contact us for more information.

Overview

  • brand: BOEHRINGER
  • year: 1998
  • MODEL: VDF 400 CM
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • availability: 30 12 2024
  • control unit brand: SIEMENS

Technical Information - BOEHRINGER VDF 400 CM

General Data

  • Measurements width: 3420 mm
  • Measurements depth: 5365 mm
  • Measurements height: 2855 mm
  • Machine weight: 23000 kg

Control Unit

  • Model: Sinumerik 840 C
  • Brand: SIEMENS

Main drive

  • Spindle speed range: 7-2000 rpm 1/MIN
  • Spindle motor power: 65 kW (max, 60% ED)
  • Spindle bore: 132 mm

Workpiece

  • Workpiece drm over bed: 785/750/750 mm

    Additional Equipment

    • - Chip conveyor: integrated longitudinally with a discharge height of 1250 mm
    • - Coolant device: large capacity tank (min. 340 l), high delivery rate (40 l/min at 1 bar)
    • - the chuck is included in the accessories, it is a Röhm KFD-AF 500/3 chuck.
    • - C axle available

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - High feed force
        • - Dynamic ac servo motor per axis
        • - Collision protection for drive elements
        • - Programmable coolant supply for each tool
        • - Turning length in mm 2000.
        • - Swing diameter above the bed in mm 750.
        • - Traverse path of the bed slide 2224.
      • Qualitative Machine Benefits:
        • - Simple maintenance and installation of chip conveyor
        • - High coolant delivery rate supports modern cutting and drilling tools

      Extra information

      • - Steady rest: Originally installed but removed due to defectiveness. Tailstock: Included with a quill outer diameter of 130 mm and stroke of 120 mm. Hydraulic unit: Central unit for various machine functions with variable clamping pressure adjustment. Feed drive: Features high dynamics and protection class IP 64. Main spindle head: DIN 55026-A15.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
