➤ Used BOY 55A For Sale | gindumac.com

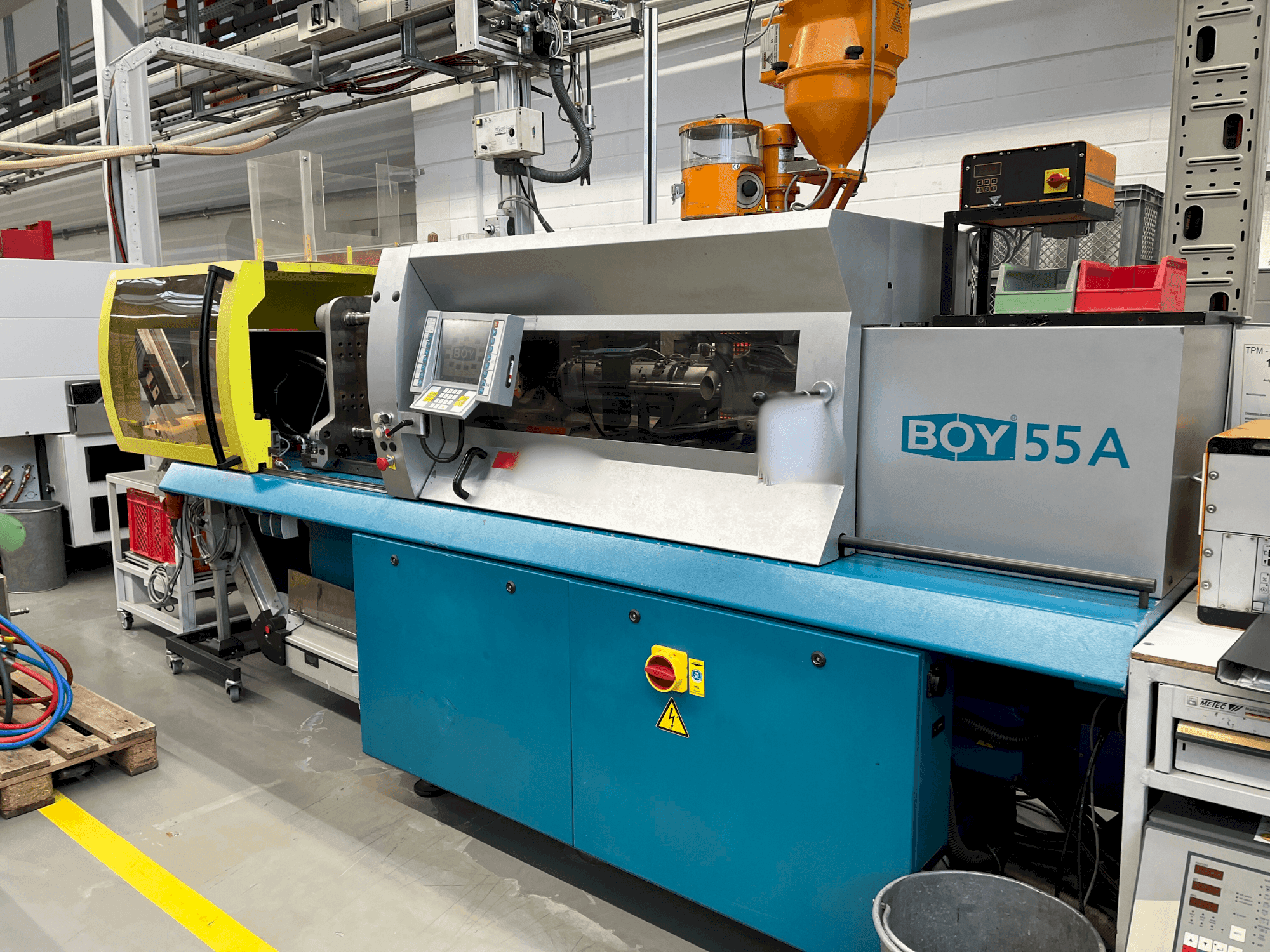

This hydraulic injection moulding machine was manufactured in 2006. The BOY 55A features a clamping force of 550 kN, a max. plate distance of 650 mm, and supports a max. tool weight of 800 kg. It offers a variety of screw diameters from 28 to 42 mm, enhancing its versatility for different injection pressures and volumes. Consider the opportunity to buy this BOY 55A hydraulic injection moulding machine. Contact us for more information about this machine.

Overview

brand: BOY
year: 2006
MODEL: 55A
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - BOY 55A

General Data

Measurements width: 1090 MM
Measurements depth: 4213 MM
Measurements height: 2040 MM
Machine weight: 2580 KG

Tools

Max weight: 800 kg

Injection Unit

Screw diameter: 28 / 32 / 38 / 42 mm
Shot weight: 71.1 / 92.3 / 129.8 / 158.9 g
Stroke volume: 2.30 / 2.00 / 2.28 / 2.24 CM³
Injection pressure: 2778 / 2127 / 1508 / 1235 bar
Screw speed: 325 / 410 rpm

Clamping unit

Clamping force: 550 kn
Opening stroke: 38.0 kN
Max open daylight: 400 mm
Distance between bars: 380 x 335 mm
Mould height min: 250 mm
Mould height max: 650 mm
Ejector stroke: 24.4 kN MM
Ejector force for / back: 20.4 / 13.5 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Core diameter: 45 mm
- - Casting plate dimensions: 565 x 540 mm
- - Max. Weight of moving tool half: 400 kg
- - Screw l/d ratio: 22. 7 / 20 / 18. 7 / 15
- - Theoretical shot volume: 73. 9 / 96. 6 / 138. 1 / 166. 3 cm³
- - Plasticizer screw stroke: 11. 5 / 15. 3 / 21. 9 / 23. 8
- - Plasticizer screw stroke: 11. 5 / 15. 3 / 21. 9 / 23. 8
- - Injection force: 171 kn
- - Screw stroke: 120 mm
- - Screw torque: 490 / 390 nm
Qualitative Machine Benefits:
- - Screw back pressure: 29. 7 kn
- - Nozzle clamping force: 66 kn
- - Nozzle stroke: 210 mm
- - Dry run: 252 mm
- - Installed pump power: 11 kw
- - Form and ejection zone cooling: 1/2"
- - Hydraulic system pressure: 180 bar
- - High pressure: 295 bar
- - Oil tank capacity: 200 l
- - Water connection (main and return line): 3/4"

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
