➤ Used BYSTRONIC BySprint Fiber 3015 Fiber Laser Cutting Machine

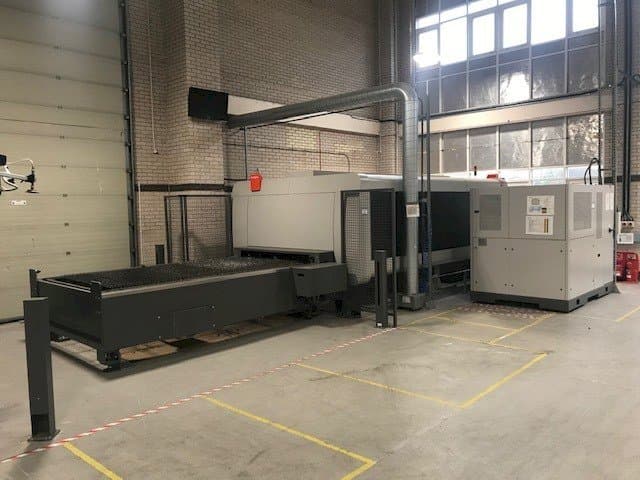

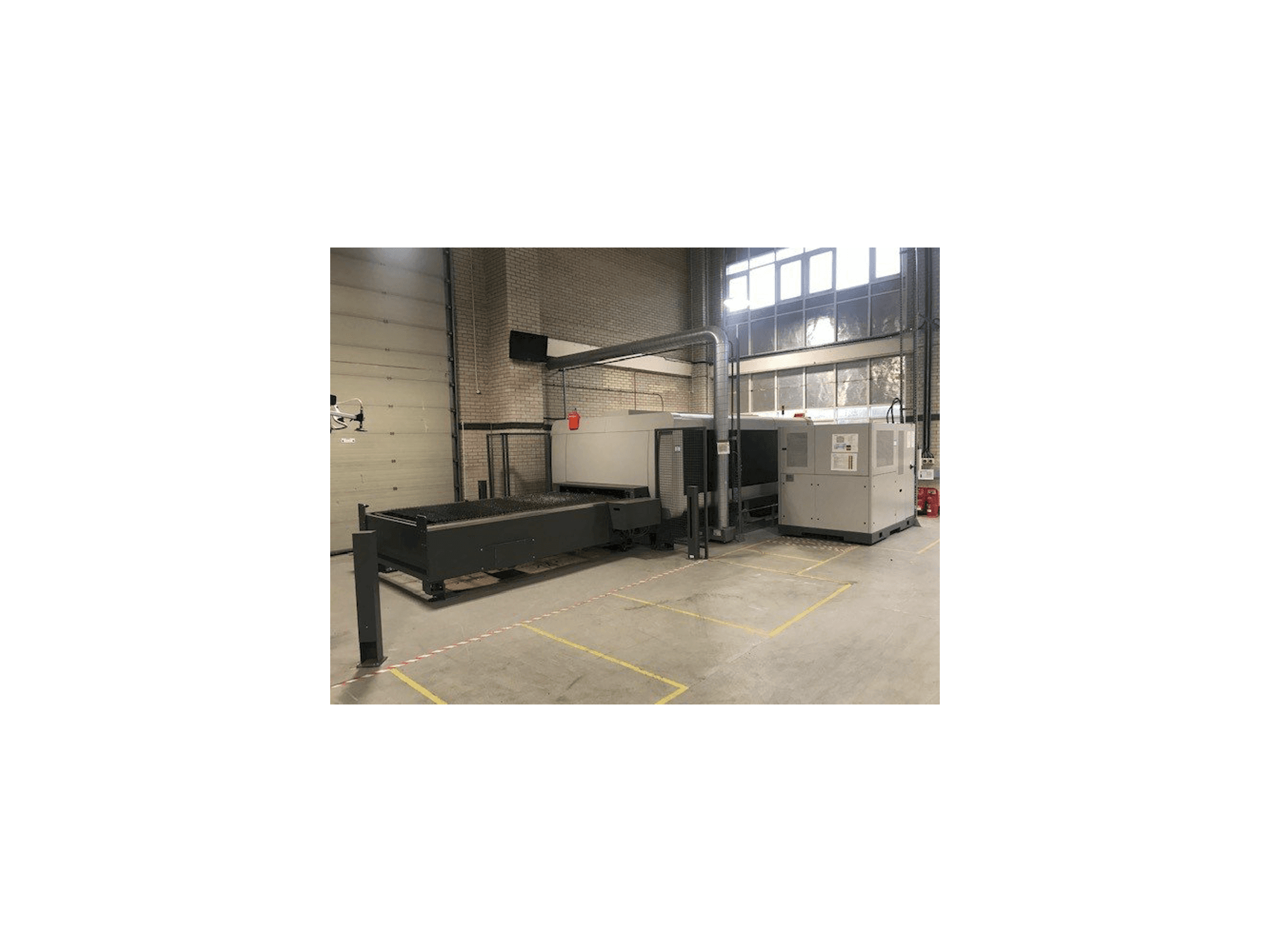

This Bystronic BySprint Fiber 3015 Fiber Laser Cutting Machine was built in the year 2017. It is equipped with a ByVision control unit. This machine works with a laser power of 3 kW and can cut steel sheets up to 20 mm of thickness.

Overview

brand: Bystronic
year: 2017
MODEL: BySprint Fiber 3015
application type: Cutting
Location: United Kingdom
machine type: Fiber Laser Cutting Machine
availability: Sold
control unit brand: BYSTRONIC

Technical Information - Bystronic BySprint Fiber 3015

General Data

Measurements width: 11000 mm
Measurements depth: 6050 mm
Measurements height: 2565 mm
Machine weight: 16002 kg

Control Unit

Brand: BYSTRONIC

Main drive

Laserpower: 3 kW

Table

Table load: 890 kg

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 12 mm

Additional Information

Machine history

Material type: Cooper
material thickness: 6 mm

Machine Benefits

Technical Machine Benefits:
- - Maximum material size: 3000mm x 1500mm
- - Max, positioning speed parallet axis x,y: 100m/min
- - Max, simultaneous positioning speed: 140m/min
- - Cutting area: x, 3048mm. / y, 1524mm. / z, 70mm
- - Input: 400/3/50hz
- - Fitted with: dust collector
- - Equipment: sheet storage rack
- - Features: abus crane and vaccum sheet lifting attachment

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
