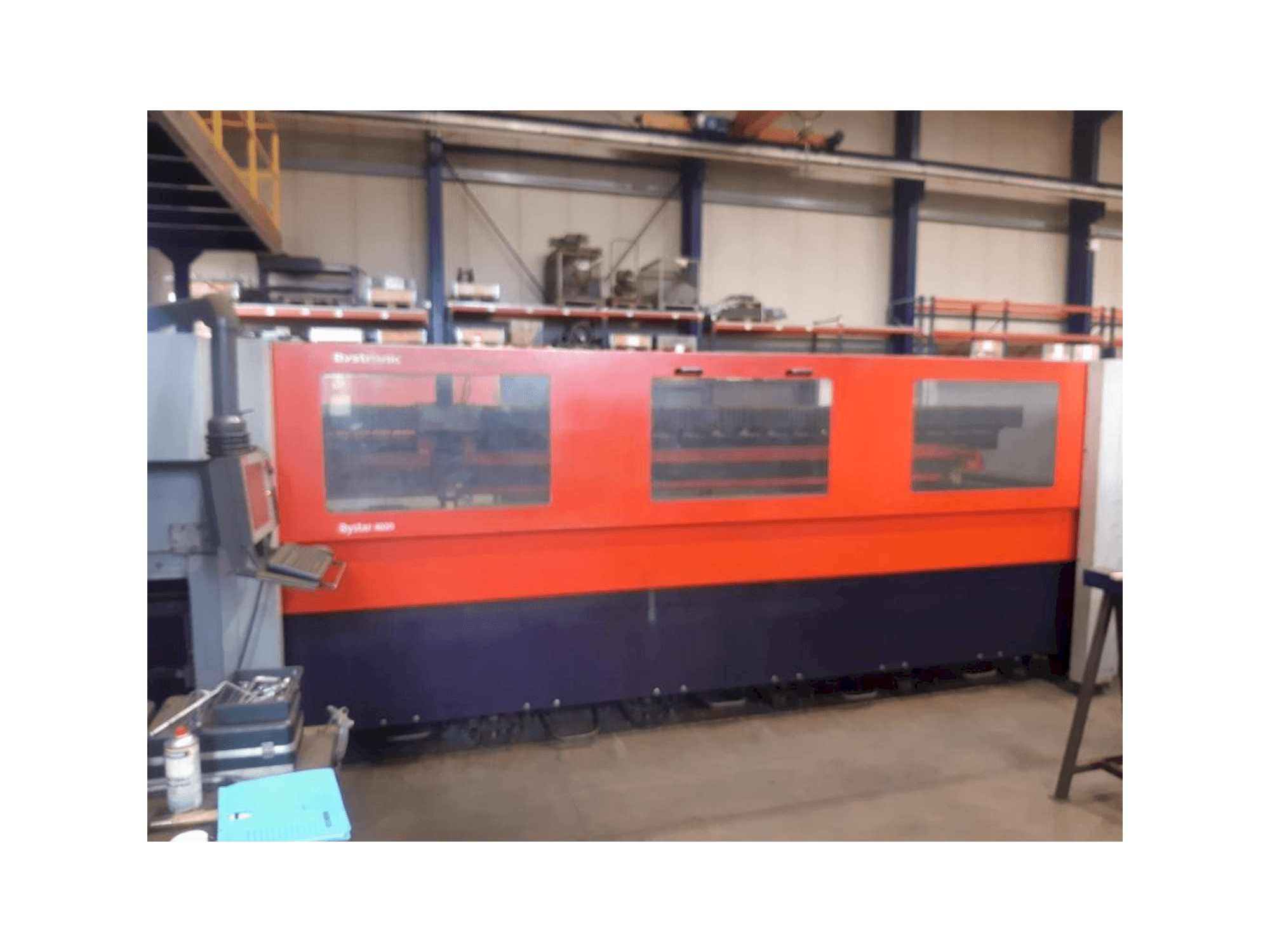

Front view of Bystronic Bystar 4020 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bystronic Bystar 4020

Photo Gallery

Bystronic - Bystar 4020DE-LAS-BYS-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

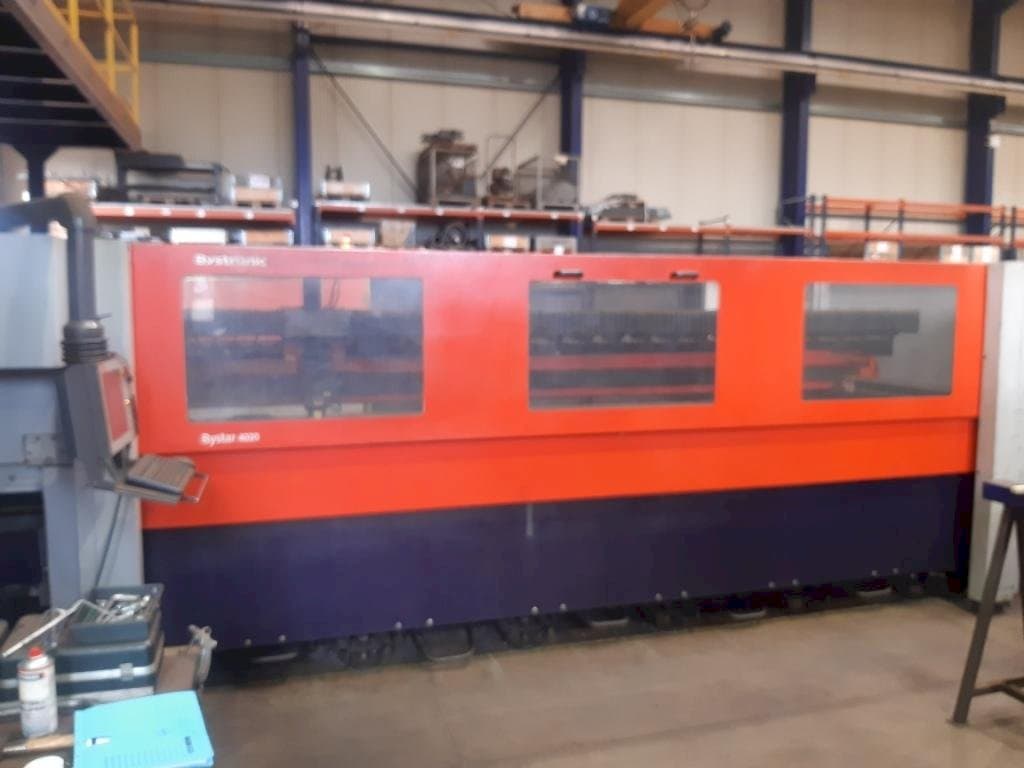

➤ BYSTRONIC Bystar 4020 Laser Cutting Machine DE-LAS-BYS-2008-00001

This Bystronic Bystar 4020 Laser Cutting Machine was made in the year 2008. It has 56000 production hours, from which 41500 are cutting hours. It is equipped with a Bystronic Byvision control unit. It works with a 6 kW laser power and is capable of cutting mild steel up to 25 mm of thickness. It has been well maintained.

Overview

brand: Bystronic
year: 2008
MODEL: Bystar 4020
production hours: 41500
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: BYSTRONIC

Technical Information - Bystronic Bystar 4020

General Data

Measurements width: 21000 mm
Measurements depth: 6700 mm
Measurements height: 2070 mm
Machine weight: 27950 kg

Control Unit

Model: Byvision
Brand: BYSTRONIC

Main drive

Laserpower: 6 kW
Laser type: HF- semiconductor generated

Movement

X-AXIS Movement: 4048 mm
Y-AXIS Movement: 2024 mm
Z-AXIS Movement: 170 mm

Additional Information

Machine history

Material type: Mild steel, aluminum
material thickness: 25 mm, 15 mm

Machine Benefits

Technical Machine Benefits:
- - Laser range capacity: 150 - 6000 watt
- - Cooling unit: e. Furrer wkl 560 s1
- - Dust extraction: torrit df pro 6-sprk
- - Electrian capacity total: 78 kw machine + 5,5 kw extraction + 6 kw bytrans
- - Cutting machine with operator safety advice by cutting, loading and unloading
- - Automatic table changer
- - 2 cutting heads with 5“ + 7,5“ lenses
- - Cut control
- - Bypos-w
- - Cross-jet
Qualitative Machine Benefits:
- - • service through the manufactor/company

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
