CIDAN Futura 25 Bending Machine

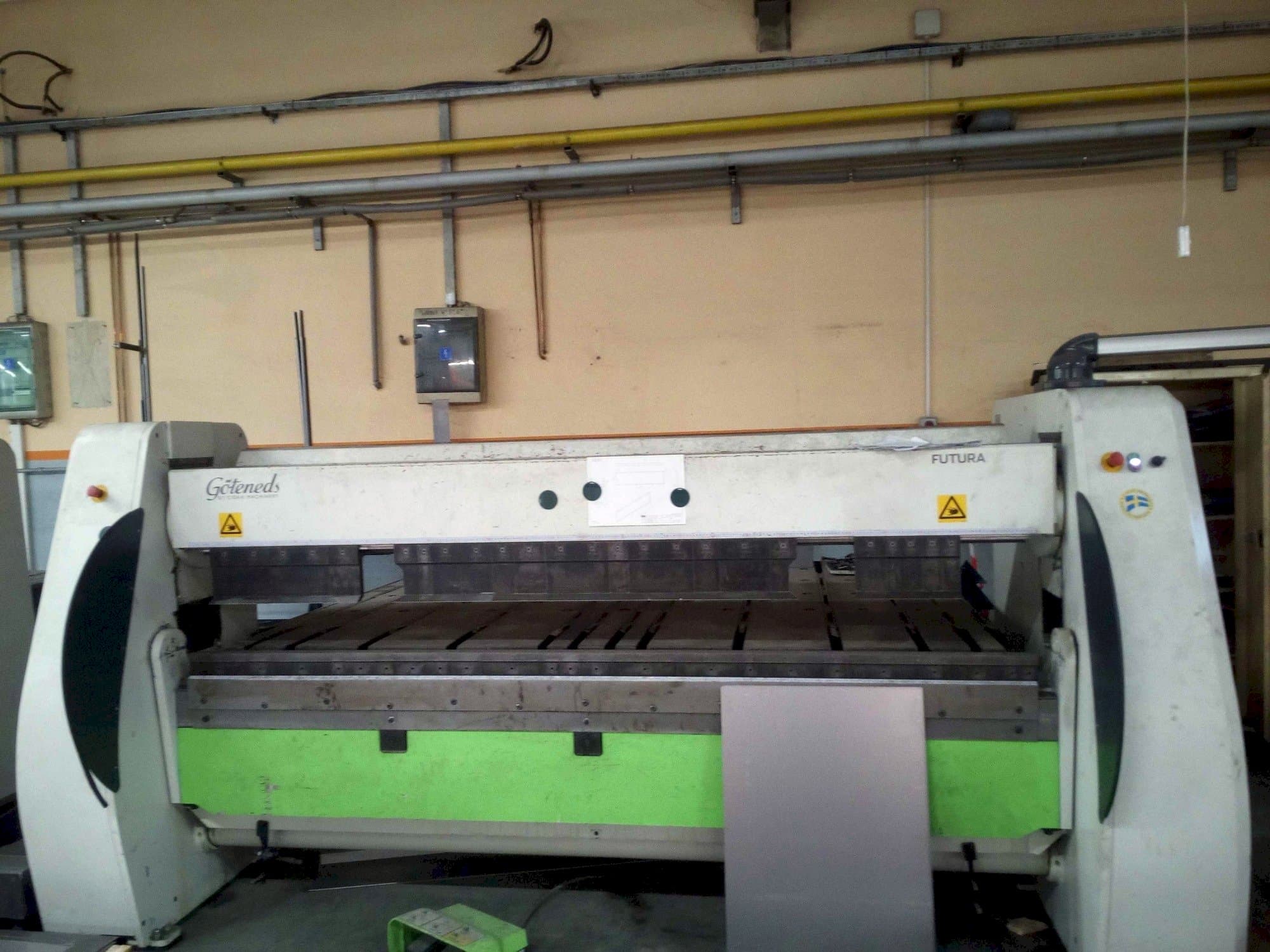

This CIDAN Futura 25 Bending Machine was built in Sweden in the year 2016. It has a production record of only 155 hours. It is equipped with a ProLink control unit. This 2 axis machine can work with a bending length 2600 mm, and a clamping beam 195mm. It includes a set of tooling. This machine presents very good working conditions, is ready for test, and full documentation is included.

Overview

brand: CIDAN
year: 2016
MODEL: Futura 25
production hours: 155
application type: Bending
Location: Poland
machine type: Press Brake
availability: Sold

Technical Information - CIDAN Futura 25

General Data

Measurements width: 3600 mm
Measurements depth: 2300 mm
Measurements height: 1845 mm
Machine weight: 4195 kg

Main drive

Bending length: 2600 mm

Max Material thickness

Steel: 2.5 mm
Stainless steel: 1.6 mm
Aluminum: 3.7 mm

Media

Main electronic connection: 3 x 400V / 50Hz

Additional Equipment

- Set of tooling included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clamping pressure: 30 tons
- - Clamping beam: 195 mm
- - Clamping beam motor power: 2. 2 kw
- - Folding motor power: 1. 1 kw
- - Control system: prolink control, with touch screen and graphic programming system
- - Automatic adjustment of sheet thickness: 0 - 4. 0 mm
- - Folding beam rail 10 mm and 20 mm with quick change tooling
- - Adjustable crowning of folding beam rail
- - Servo driven motors for both clamping and folding
- - Beams for variable folding speed
Qualitative Machine Benefits:
- - Continuous cooling of the motor for the upper beam
- - Foot pedal for operator

Extra information

- Machine in very good, working condition, ready for tests. Full documentation included.
