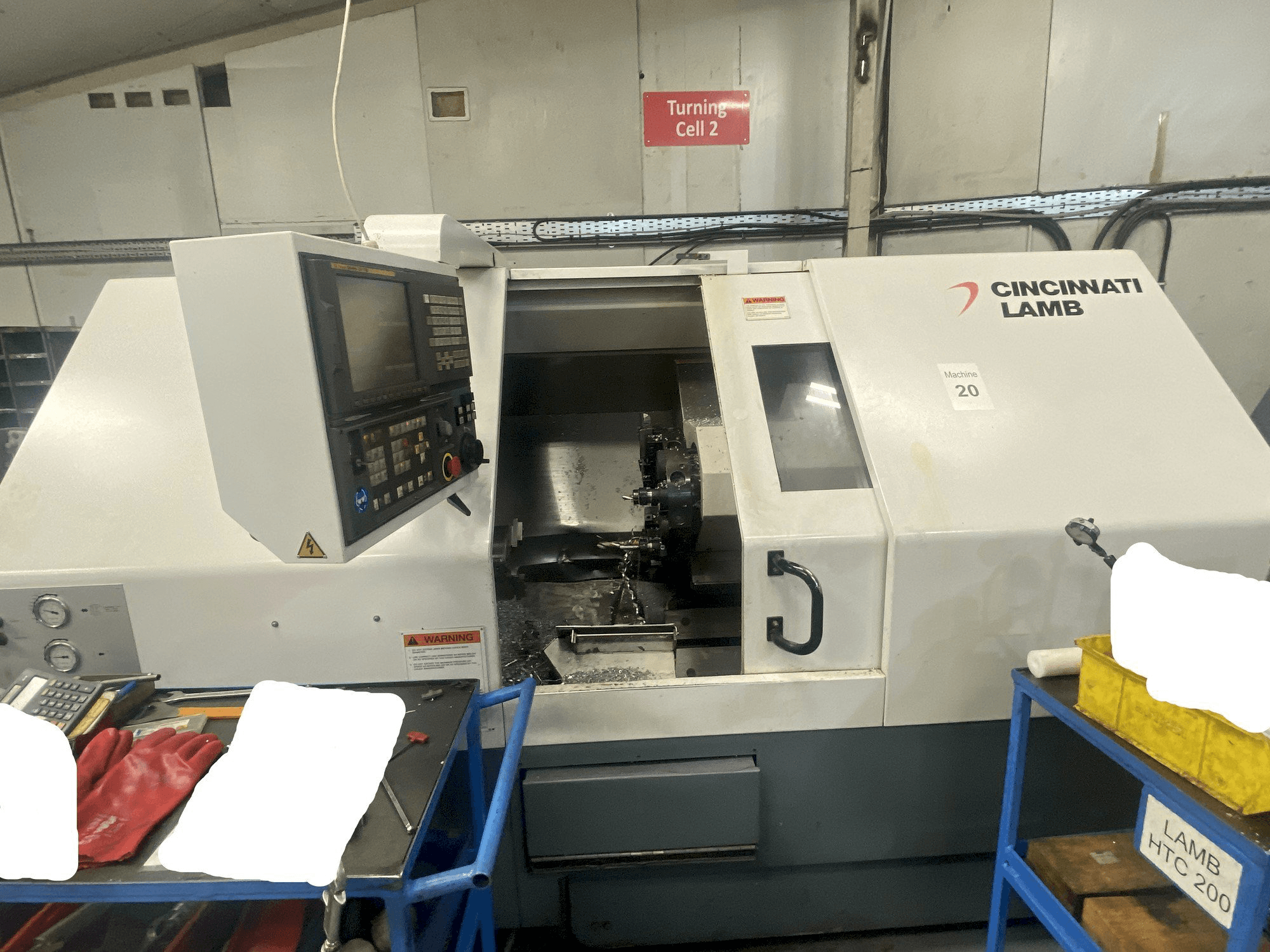

Cincinnati HTC 200 Lathe

This Cincinnati HTC 200 Lathe was manufactured in the year 2005 in United Kingdom. It is equipped with a Fanuc 21i-TB control unit. The machine has a spindle speed of 4500 rpm, Iemca TAL Auto 65-38 Bar Feed as additional equippment.

Overview

brand: Cincinnati
year: 2005
MODEL: HTC 200
application type: Turning
Location: Ireland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Cincinnati HTC 200

General Data

Measurements width: 3000 mm
Measurements depth: 1900 mm
Measurements height: 1800 mm
Machine weight: 4500 kg

Control Unit

Model: 21i-TB
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 245 mm
Z-AXIS Movement: 540 mm

Workpiece

Workpiece drm: 300 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: ISO40

Media

Main electronic connection: 400 V
Power consumption: 38 kVa

Additional Equipment

- Iemca TAL Auto 65-38 Bar Feed

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Includes 3. 8m barfeed
- - 2 axis machine
- - Includes tailstock
- - 12 station static tool turret

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
