CMZ - TA20M Z640ES-TUR-CMZ-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

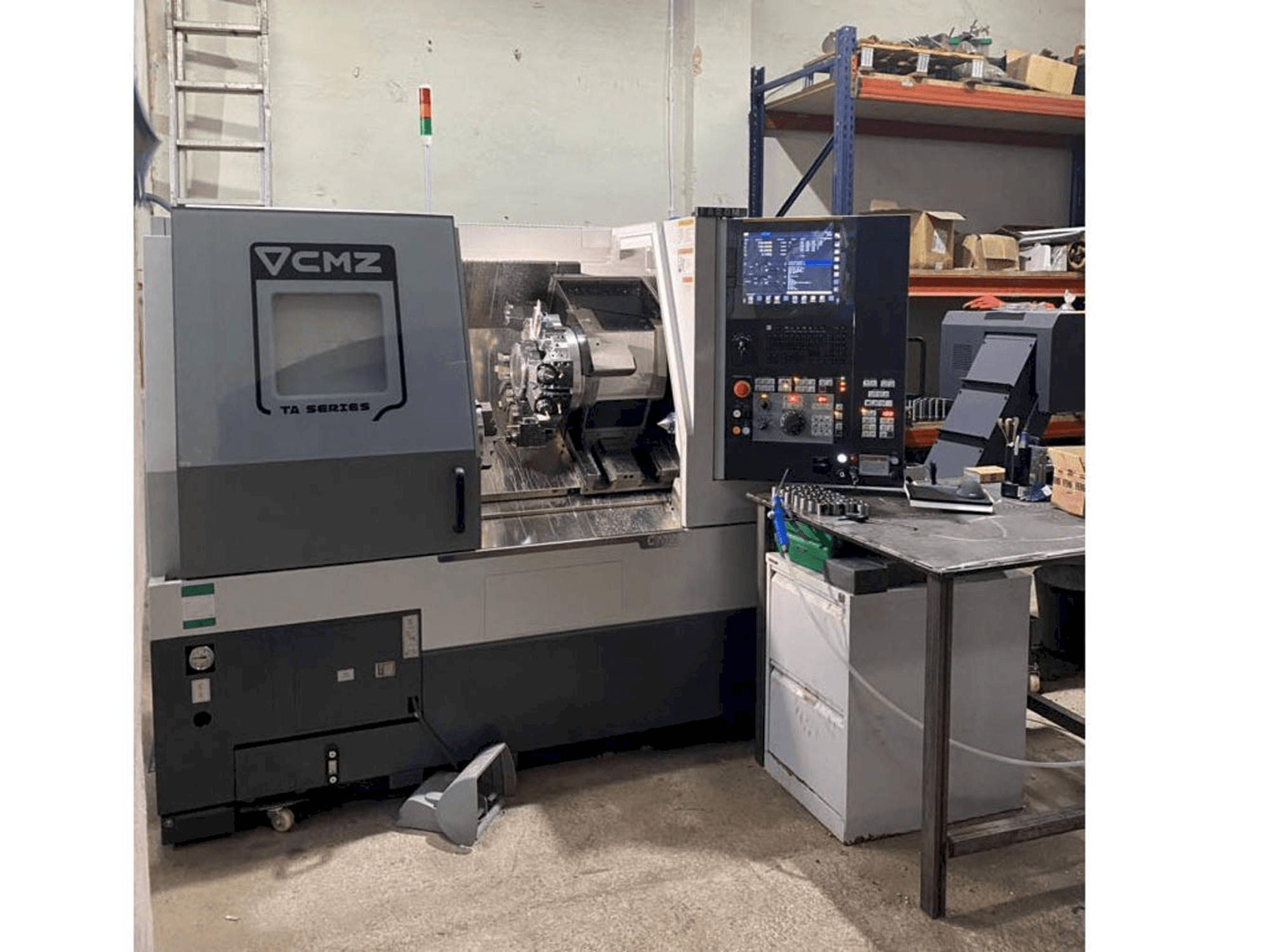

This CMZ TA20M Z640 Lathe was manufactured in the year 2019 and bought on July 2020. It has been on for 1700 hours and it just has 500 cutting hours. It is operated through a Fanuc 32i Model B control unit. This 2 axis machine can work with a spindle speed up to 4000 rpm. It includes 6 driven tools and a chip conveyor. This machine is as new.

Overview

brand: CMZ
year: 2019
MODEL: TA20M Z640
production hours: 500
application type: Turning
Location: Spain
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - CMZ TA20M Z640

General Data

Machine weight: 5900 Kg

Control Unit

Model: 32i Model B
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Number of axis: 2

Workpiece

Workpiece drm over bed: 760 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional Equipment

- 6 driven tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum swing diameter over bed 760 mm
- - Maximum turning diameter over carriage 600 mm
- - Maximum turning diameter 460 mm
- - Distance between chuck face and point 713 mm
- - Bar hole 66 mm
- - Plate 250 mm
- - Programmable tailstock
- - 12000 rpm 11 kw motorized turret
- - Rohm counterpoint
- - Prepared for bar loader
Qualitative Machine Benefits:
- - 500 hours cutting
- - Machine as new
- - It was bought in july 2020
- - High pressure coolant pump
- - Integrated head
- - Preset probe

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
