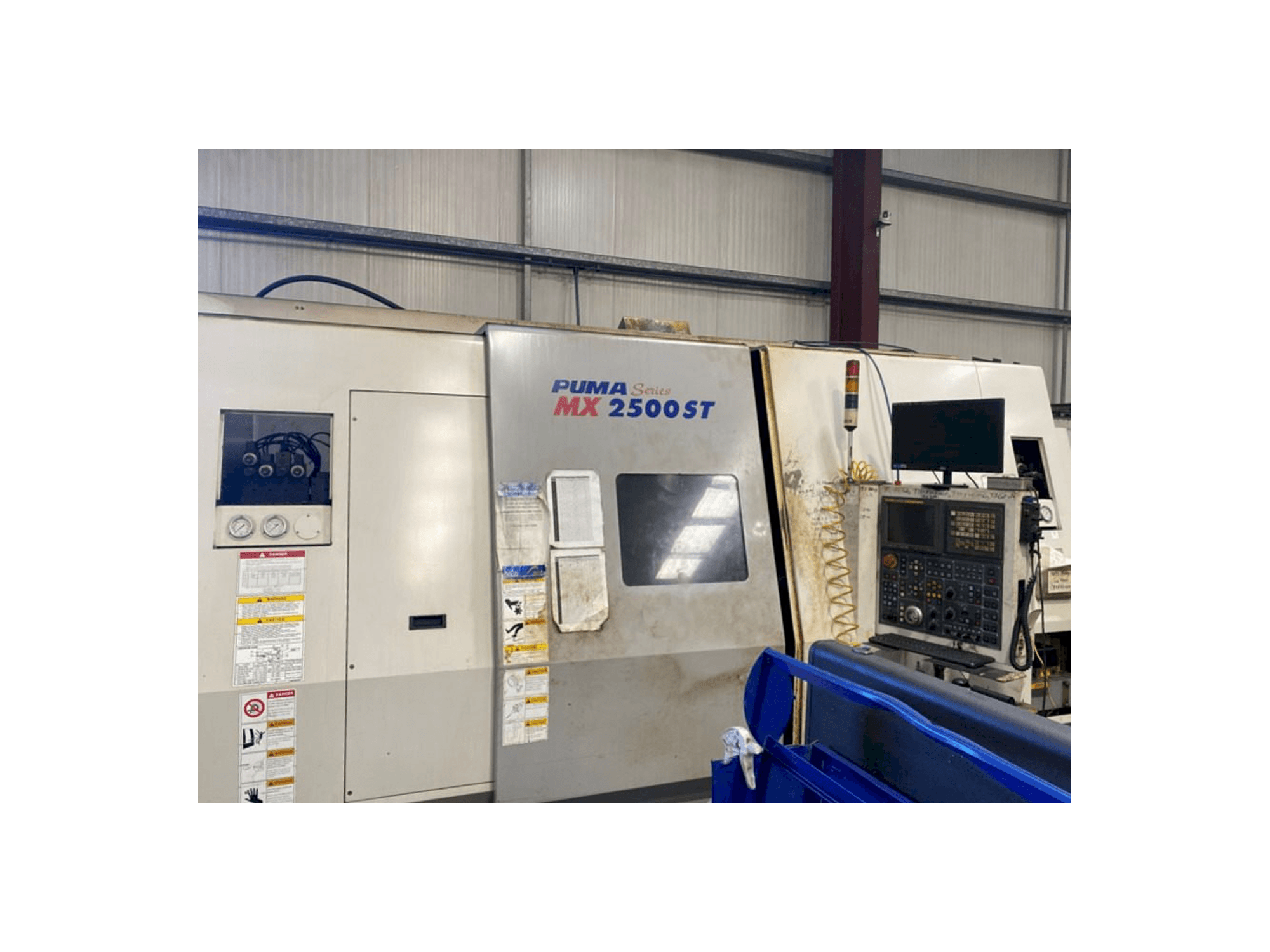

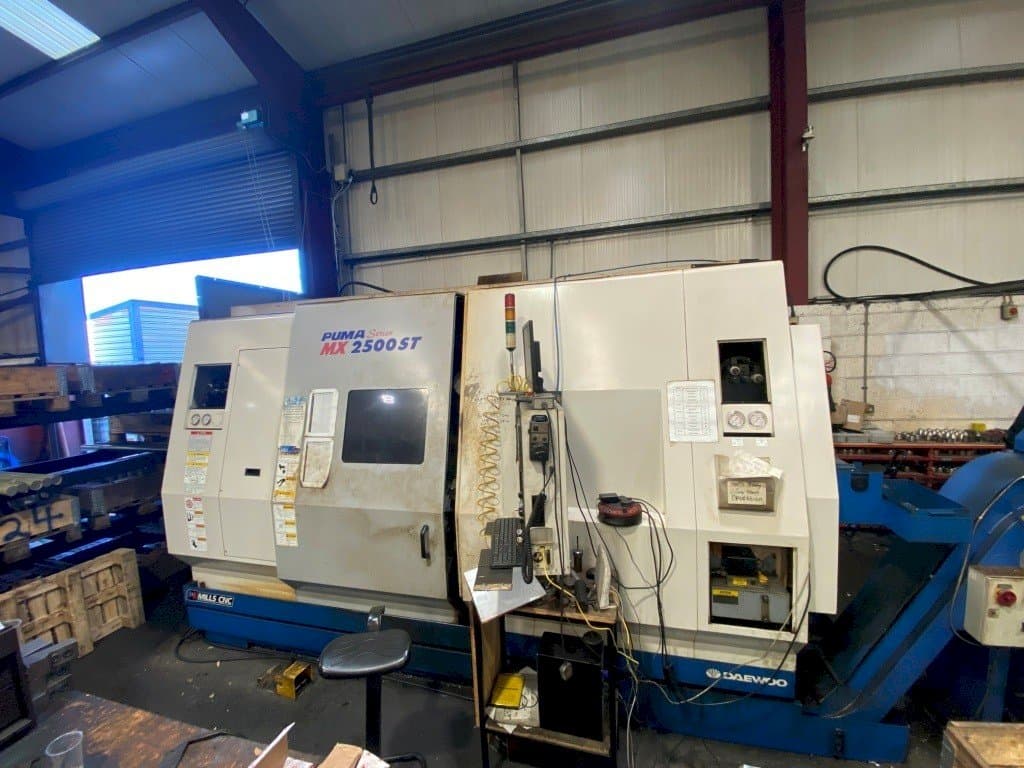

DAEWOO PUMA MX2500ST Turning

This DAEWOO PUMA MX2500ST Lathes machine was manufactured in 2004 in Korea. The machine operates through a Fanuc Series 18i-TB control unit. It works with a spindle speed up to 3500 rpm. This machine has 9 Controoled Axes (X,X1,Z,Z2,Y,A,C1,C2,B).

Overview

brand: DAEWOO
year: 2004
MODEL: PUMA MX2500ST
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DAEWOO PUMA MX2500ST

General Data

Measurements width: 4520 mm
Measurements depth: 2495 mm
Measurements height: 2600 mm
Machine weight: 12500 kg

Control Unit

Model: Series 18i-TB
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 3
Spindle speed range: 3500 1/MIN

Movement

X-AXIS Movement: 555 mm
Y-AXIS Movement: 160 mm
Z-AXIS Movement: 1095 mm
A-AXIS Movement: 1065 mm
B-AXIS Movement: 240 deg MM
C-AXIS Movement: 360 deg MM

Workpiece

Workpiece drm over bed: 550 mm
Workpiece z: 1020 kg MM

Turret

Number of turrets: 1

Tools

Slots in storage: 40
Max weight: 8 kg
Max tool length: 300 mm
Type of tool holder: Capto C6

Media

Main electronic connection: 400 V
Power consumption: 93,92 kVA
Chip conveyor: Yes

Additional Information

Machine history

Material type: Mild steel

Machine Benefits

Technical Machine Benefits:
- - 9 controoled axes (x,x1,z,z2,y,a,c1,c2,b)
- - Multi tasking turning/milling center
- - Format: spindle 1, spindle 2, milling spindle, lower turret
- - Atc for milling spindle: 40 station
- - Turret: 12 station driven tool turret

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
