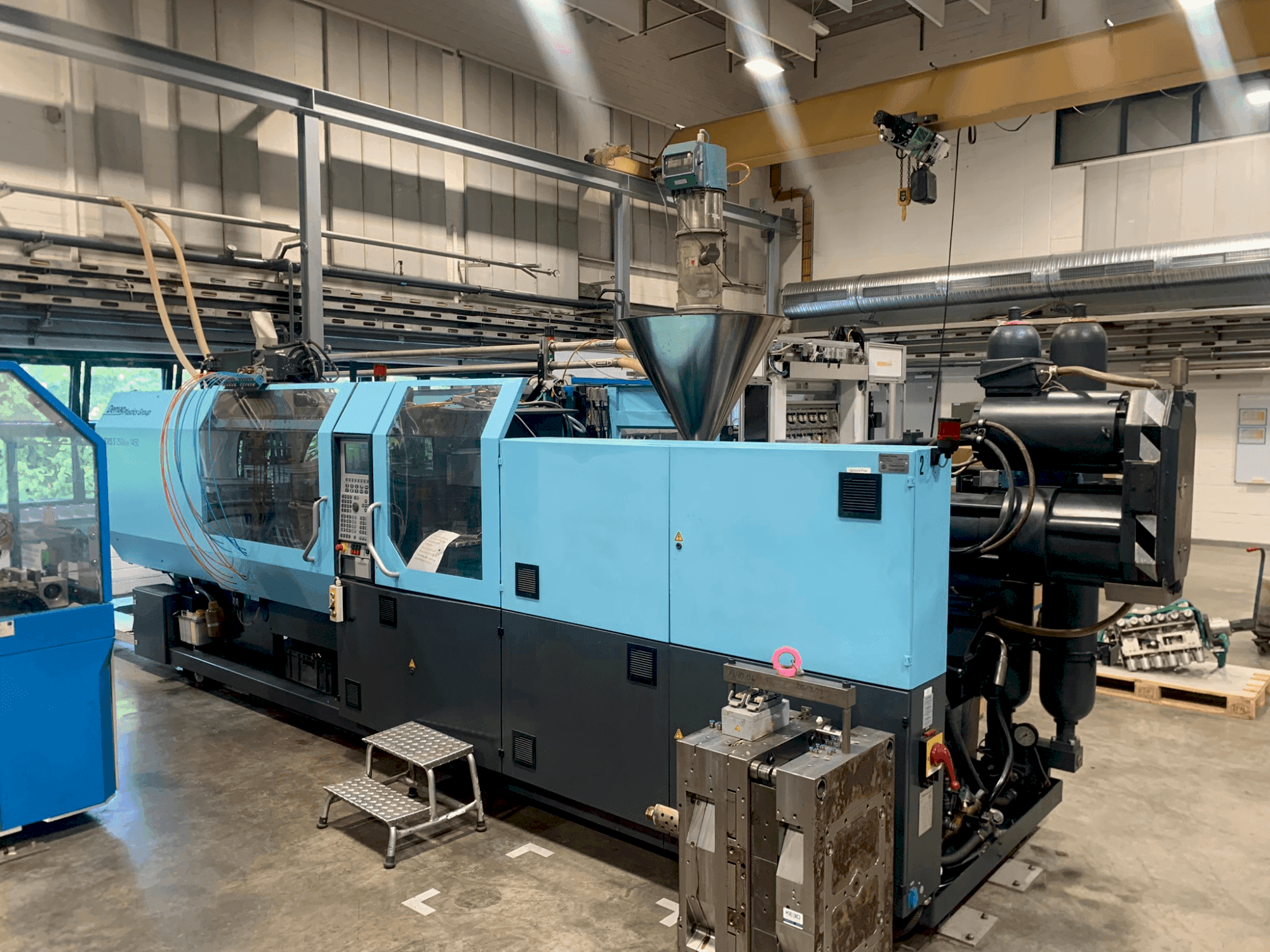

➤ Used DEMAG EL-Exis S 250/630-1450 | Injection Moulding

This electrical injection moulding machine was manufactured in 2005. A robust DEMAG EL-Exis S 250/630-1450, it features a clamping force of 2500kN and a locking force of 2750kN. It supports a mould weight of up to 3300kg and offers a screw diameter range of 50 to 70 mm. Ideal for precision in large-scale production, the machine we have for sale is a significant asset for any operation. Contact us for further details regarding this electrical injection moulding machine.

Overview

brand: DEMAG
year: 2005
MODEL: EL-Exis S 250/630-1450
application type: Injection Moulding
Location: Germany
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - DEMAG EL-Exis S 250/630-1450

General Data

Measurements width: 1900 mm
Measurements depth: 6500 mm
Measurements height: 2300 mm
Machine weight: 14200 kg

Injection Unit

Screw diameter: 50/60/70/50/60 mm
Shot weight: 480/690/950 g
Injection pressure: 2426/1905/1400/2426/1905 bar
Nozzle pressure: 110 kN

Clamping unit

Clamping force: 2500 kN
Opening stroke: 675 mm
Distance between bars: 630 x 630 mm
Mould height min: 330 mm
Mould height max: 710 mm
Size of mold platens: 950 x 950 mm
Ejector stroke: 200 mm
Ejector force for / back: 69 kN / 31 kN

Additional Information

Extra information

- Net weight (without oil filler): 14200 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
