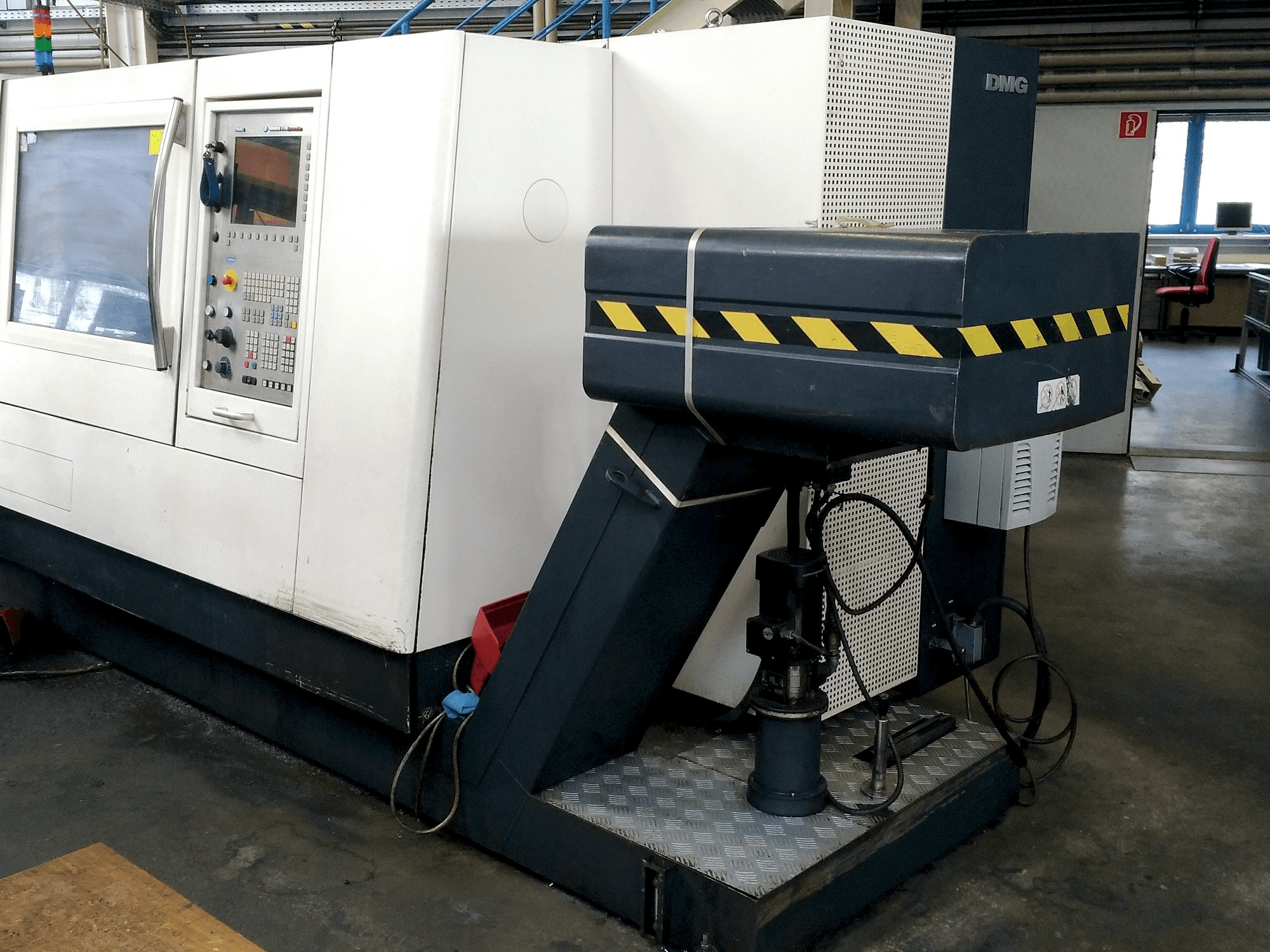

Gildemeister DMG CTX 510 eco lathe

This DMG CTX 510 eco lathe machine was manufactured in 2008 in China. The machine has 45263 working hours. It is operated through a Siemens 810D powerline control unit. This 2 axis machine has a spindle range of 500 - 3250 rpm.

Overview

brand: DMG
year: 2008
MODEL: CTX 510 eco
production hours: 45263
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG CTX 510 eco

General Data

Measurements width: 5080 mm
Measurements depth: 1855 mm
Measurements height: 1930 mm
Machine weight: 7500 kg

Control Unit

Model: 810D powerline
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 500 - 3250 1/MIN
Spindle bore: 102,5 mm
Number of axis: 2

Movement

X-AXIS Movement: 300 mm
Z-AXIS Movement: 1050 mm

Media

Main electronic connection: 400 V - 50/60 Hz
Power consumption: 50 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck diameter: 250 mm
- - Spindle nose: fl 220 h5
- - Nominal torque (s1): 420/500 nm
- - Maximum turning diameter: 465 mm
- - Maximum turning length: 1000 mm
- - Maximum mass between center: 350 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
