- DMG MORI CMX 50 U Universal Machining center

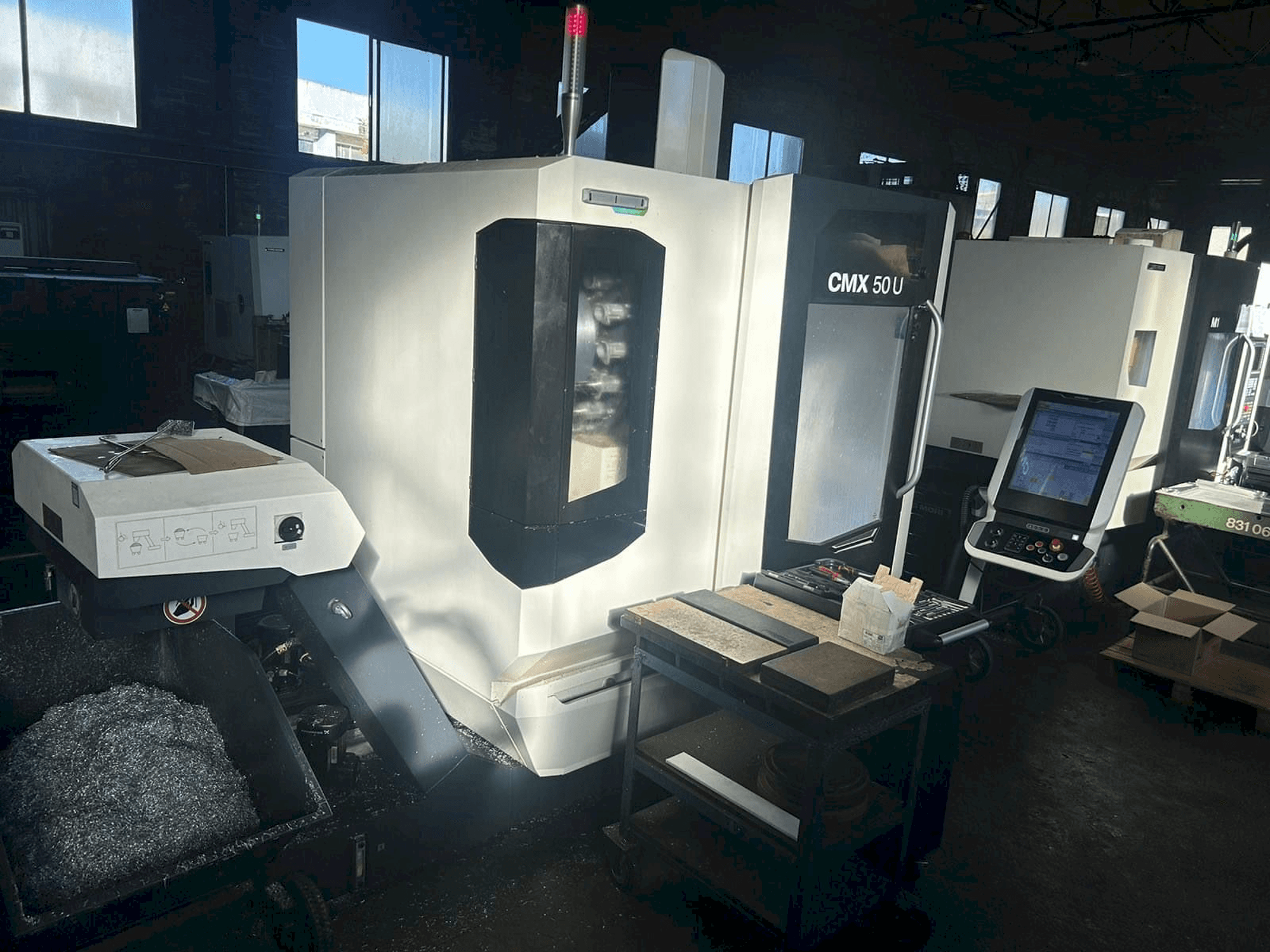

This DMG MORI CMX 50 U Universal Machining center was manufactured in the year 2021 in Poland and has 8115 production hours, of which 5436 are spindle hours. It is equipped with a SIEMENS DMG MORI SLIMline Multi touch control unit and has 3+2 axis. The machine has a spindle speed of 20-12000 rpm.
Overview
- brand: DMG MORI
- year: 2021
- MODEL: CMX 50 U
- production hours: 8115
- application type: Milling
- Location: Greece
- machine type: Machining centers (universal)
- availability: Sold
- control unit brand: DMG MORI
Technical Information - DMG MORI CMX 50 U
General Data
- Machine weight: 4700 kg
Control Unit
- Brand: DMG MORI
- Model: SLIMline Multi Touch control
Main drive
- Spindle speed range: 20- 12000 1/MIN
- Number of axis: 3+2
Movement
- X-AXIS Movement: 500 mm
- Y-AXIS Movement: 450 mm
- Z-AXIS Movement: 400 mm
Additional Information
- Technical Machine Benefits:
- - 3d control unit technology
- - Swivel rotary table powered b/c axes
- - Standard inline spindel, opt. Inlinemaster®
- - Tool magazine 30 pos
- - Rigidity, stability of the body
- - Dmg mori iotconnector included in standard
- - Table d 630x500
- - Rotary range b (-5°/+110°) / c (360°)
- - Rapid feed linear axes 30 m/min
- - Ac main drive: 13/9 kw (40/100% dc)
- Qualitative Machine Benefits:
- - Tool taper sk40 din 69871
- - Tool clamping according to din69872
- - Tool magazine 30 places, chain with pockets and with double gripper
- - Direct measuring system x, y, z inclusive air purge for measuring system
- - Coolant air-blast changeover external switchable via m-function
- - Chip tank
- - Internal coolant supply 20 bar
- - Chip conveyor (scraper type) with tank capacity: 250 l
- - Bed and atc arm flushing via m-function
- - Coolant spray gun for swarf removal, external electronic handwheel, cabin roof, signal lamp with 4 colours, double cartridge filter for coolant
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
