➤ Used DMG Sauer Lasertec 40 | Laser engraving & cutting

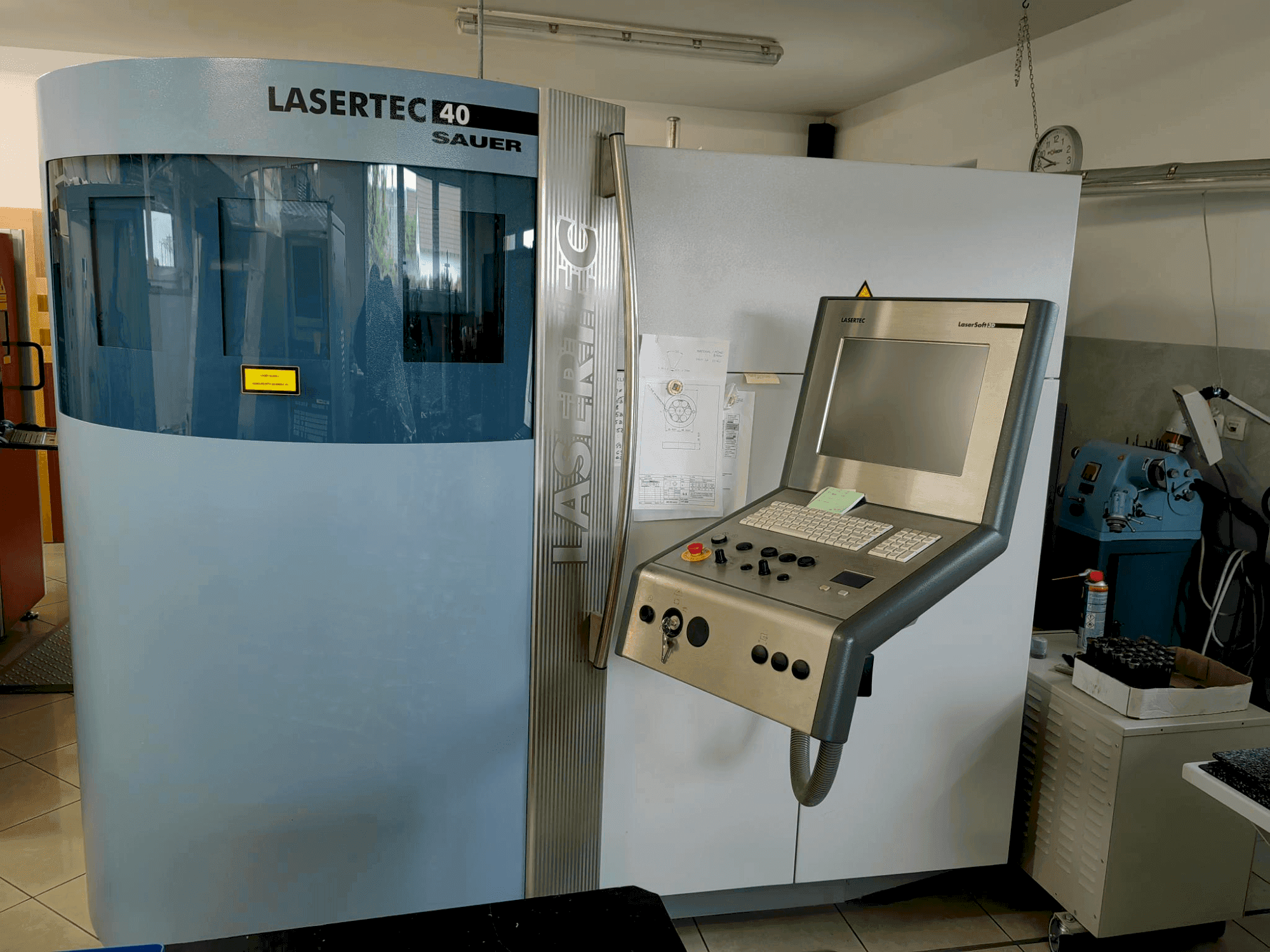

This 4-axis DMG SAUER LASERTEC 40 Laser engraving and cutting machine was manufactured in 2008. It utilizes a Nd:YVO4 laser with a wavelength of 1064 nm, ensuring precise and detailed work. The machine features an acousto-optic Q-Switch for pulse enhancement, contributing to its efficiency and quality. A cooling system using deionized water maintains optimal temperature during operations. Buy this DMG SAUER LASERTEC 40 Laser engraving and cutting machine. For more information about this laser engraving and cutting machine, please reach out to us.

Overview

brand: DMG
year: 2008
MODEL: SAUER LASERTEC 40
application type: Other Sheet Metal Machinery
Location: Slovenia
machine type: Laser Engraving Machine
availability: Immediately
control unit brand: BROTHER

Technical Information - DMG SAUER LASERTEC 40

General Data

Measurements width: 2846 mm
Measurements depth: 1671 mm
Measurements height: 2274 mm
Machine weight: 2250 kg

Control Unit

Model: TC 22A
Brand: BROTHER

Main drive

Number of spindles: 1
Spindle speed range: 12-20000 1/MIN
Tool taper: HSK-A40
Laser type: Nd:YVO4
Number of axis: 4

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 410 mm

Workpiece

Workpiece weight: 200 kg

Table

Outer length: 650 mm
Outer width: 400 mm

Additional Equipment

- Maximum tool storage capacity: 18 Maximum tool diameter: 55 mm Maximum tool length: 200 mm Tool changing time: 0.7 sec
- Machine Specific Data
- Spindle speed in tapping: 8000 rpm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance from table top surface to spindle nose: 200-610 mm
- - Distance from column front to axis of spindle: 294 mm
- - Laser class: 4
- - Wavelength: 1064 nm
- - Pulse enhancement: acousto-optic/her q-switch
- - Cooling medium: deionized water
- - Conductivity: 5-10 µs/cm

Extra information

- Feed rates:Rapid traverse: 56,000 mm/min Cutting feedrate: 5-20,000 mm/min Manual feedrate: 50-40,000 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
