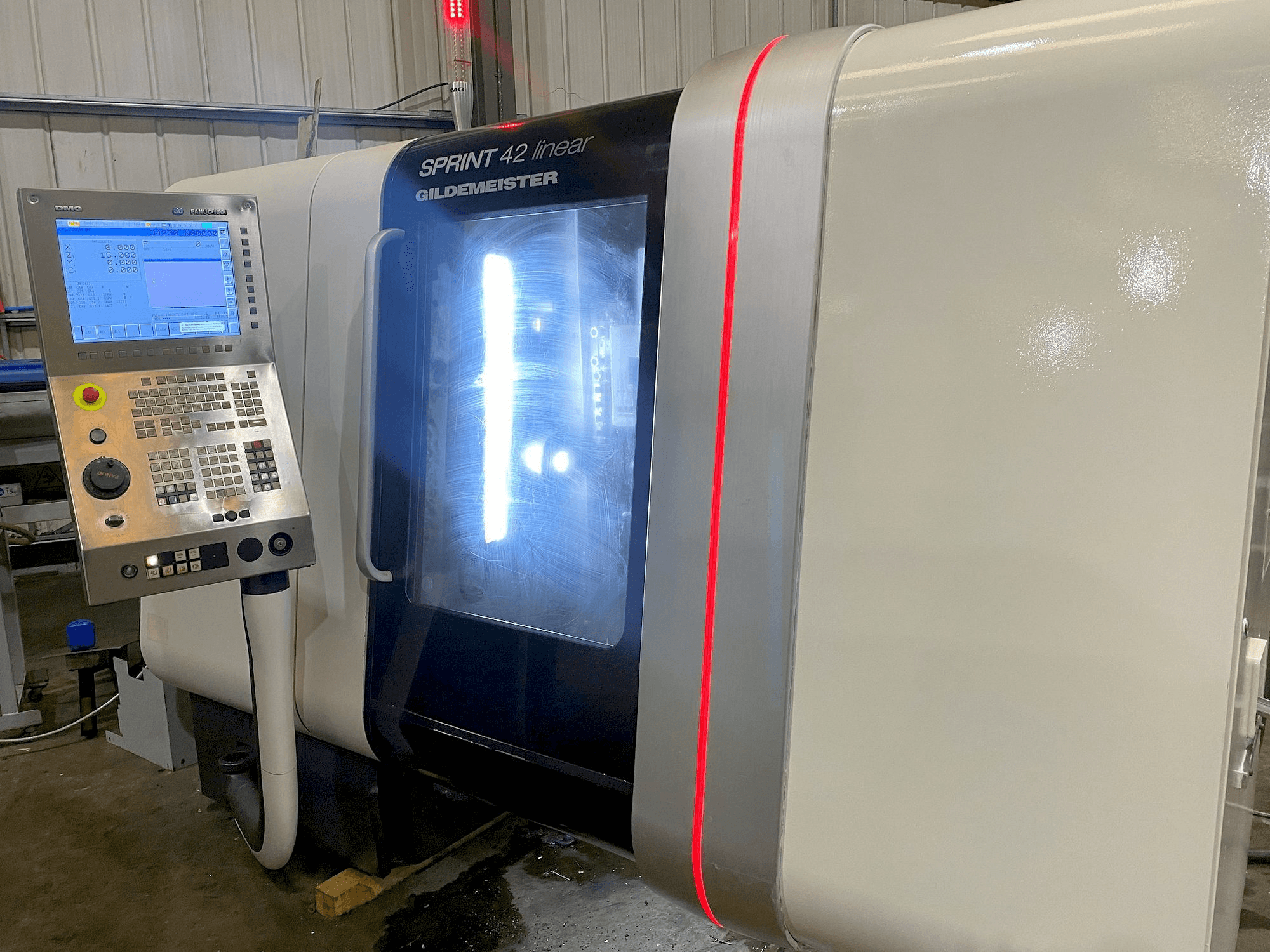

DMG GILDEMEISTER SPRINT 42 linear Lathe

This DMG SPRINT 42 linear Lathe was made in Italy in the year 2011. It has a production record of 76273 hours, of which 38019 are cutting time. This 8 axis machine is equipped with a Fanuc 160l control unit. It works with a spindle speed up to 6500 rpm and a milling speed up to 6800 rpm. It includes a machine manual and it is a very good condition.

Overview

brand: DMG
year: 2011
MODEL: SPRINT 42 linear
production hours: 76273
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DMG SPRINT 42 linear

General Data

Machine weight: 6600 KG

Control Unit

Model: 160l
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6500 1/MIN
Spindle motor power: 5.5 - 7.5 KW
Number of axis: 8

Movement

X-AXIS Movement: 50 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 120 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: VDI 30

Media

Chip conveyor: Yes

Additional Equipment

- IEMCA Boss 545E barfeed

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool carriage 1: fixed turning tool x front working tools - 6 x turning tools, 4 x driven
- - Tool carriage 2: fixed turning tool x front working tools
- - Tool carriage 3: 3 x front
- - Rapid feedrates 40m/minute
- - Sub spindle bore 38mm, speed 6500 rpm, c axis 0. 001 degree
- - Bar capacity 42 mm
- - Milling motor 4. 6 kw
- - Milling rpm 6800
- - X2 axis travel 310 mm, y2 axis travel 300 mm, z2 axis travel 350 mm
- - Swarf conveyor, parts catcher, coolant
Qualitative Machine Benefits:
- - Includes machine manual
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
