DN SOLUTIONS Puma 2600 LSYB II (2021) Horizontal Turning Center

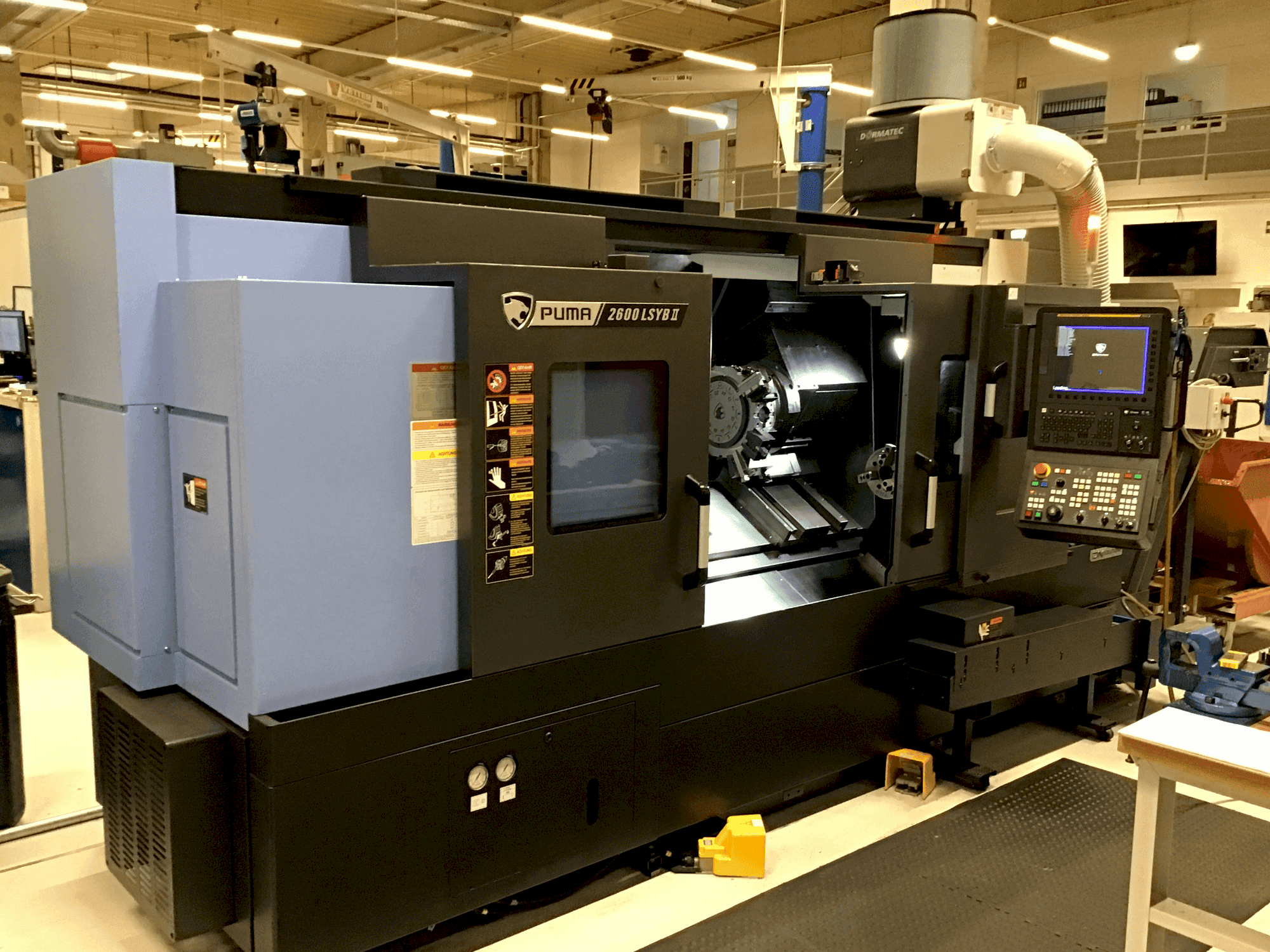

This DN SOLUTIONS Puma 2600 LSYB II (2021) Horizontal Turning Center is located in Germany and was manufactured 2021 in South Korea. It is equipped with a main spindle with 12'' power chuck (approx. 315mm) and a counter spindle with 6'' power chuck (approx. 175mm). Operated by a FANUC F0TF Plus control it comes with a turret with 12 driven tool positions (BMT65). With only around 331 run time it is in a very good condition. As additional equipment there are chip conveyor, hinged belt, upgrade chuck flushing from outside for main spindle and Dormatec AF-30 P extraction unit available. For full technical details see original order confirmation (German) as PDF attached.

Overview

brand: DN SOLUTIONS
year: 2021
MODEL: Puma 2600 LSYB II
production hours: 331
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DN SOLUTIONS Puma 2600 LSYB II

Control Unit

Brand: FANUC
Model: F0TF Plus
Interface: 15'' screen

Main drive

Number of spindles: 2

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: 105 (+/- 52.5) mm
Z-AXIS Movement: 1350 mm
B-AXIS Movement: 1350 MM

Turret

Number of tool slots: 12
Rotating tools: Yes
Tool taper: BMT 65

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C1/c2 axis 0. 001°
- - Main spindle with 12" power chuck (approx. 315mm)
- - Counter spindle with 6"" power chuck (approx. 175mm)
- - Bar capacity main spindle 102m // bar passage counter spindle 60m
- - Turret with 12 driven tool positions bmt 65
- - 3 jaw power chuck for counter spindle size: 210mm
- - Hardened top jaws
- - Pressure increase to approx. 5 bar
- - Cooling through the counter spindle for workpiece ejector by coolant
- - Workpiece ejector // oil skimmer
Qualitative Machine Benefits:
- - Automatic tool measurement
- - Electrical bar feeder
- - Tool load monitoring system (dtmt)
- - Chuck flushing from outside for main spindle
- - Programmable clamping pressure
- - Operation: 51 days, 20 hours, 6 min // run time: 331h 11m 5s

Extra information

- Additional tool package (upon request): 2x Eppinger Preci-Flex 135305 Tool holder for driven tools // 2x Eppinger Preci-Flex 134826-9 Tool holder for driven tools // 2x WTO solid drill/drill rod holder Ø40 // Comprehensive jaw set.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

DOOSAN Puma 2600 LSYB II (2021) - Original Order Confirmation (GERMAN).pdf
