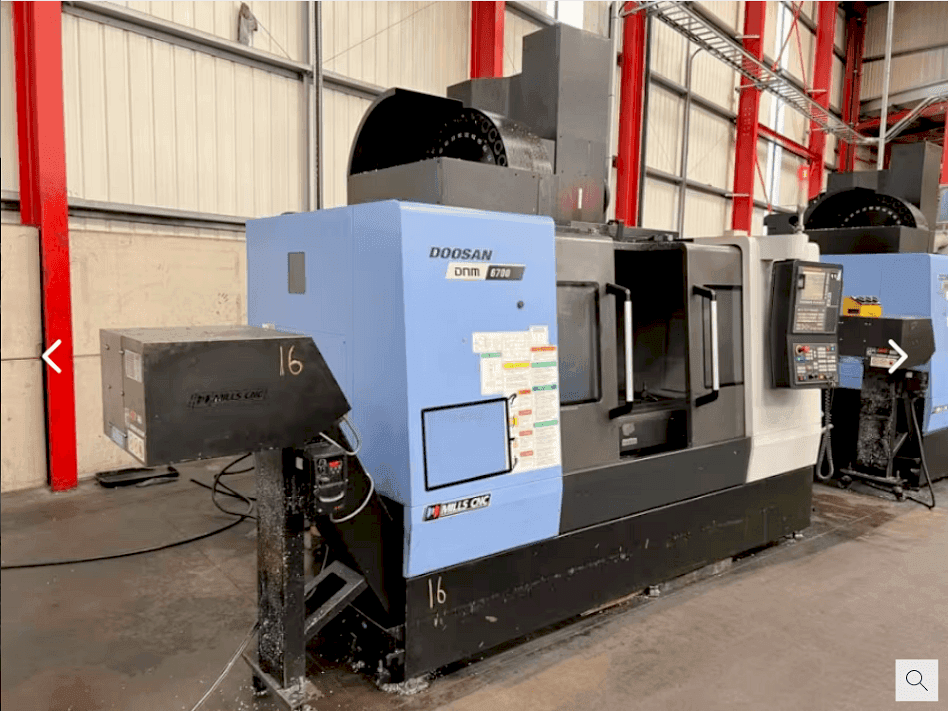

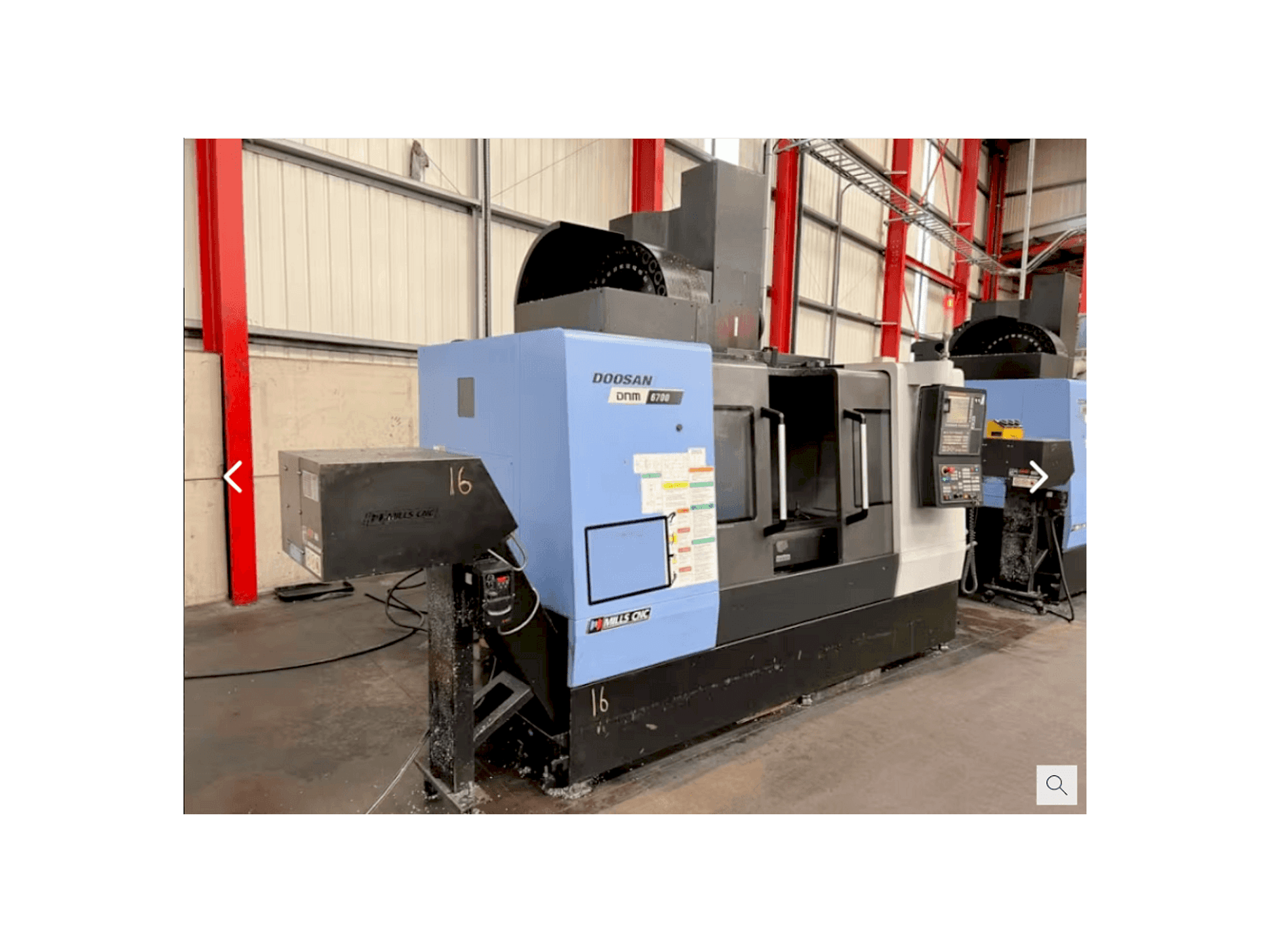

Doosan DNM 6700 Vertical Machining center

This Doosan DNM 6700 Vertical Machining center was manufactured in the year 2016 in South Korea. It is equipped with a Doosan Fanuc i-Series control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: DOOSAN
year: 2016
MODEL: DNM 6700
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN DNM 6700

General Data

Measurements width: 4342 mm
Measurements depth: 2415 mm
Measurements height: 3100 mm
Machine weight: 8500 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1300 mm
Y-AXIS Movement: 670 mm
Z-AXIS Movement: 625 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 80/125 mm
Max tool length: 300 mm
Type of tool holder: BT 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid feedrates: xyz: 36 x36 x 30m/minute
- - Min-max height under spindle 150-775 mm
- - Tool change time (chip to chip): 3. 2 seconds
- - Spindle motor power 18. 5 kw
- - Through spindle coolant
- - Coolant
- - Remote hand wheel, usb port
Qualitative Machine Benefits:
- - Good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
