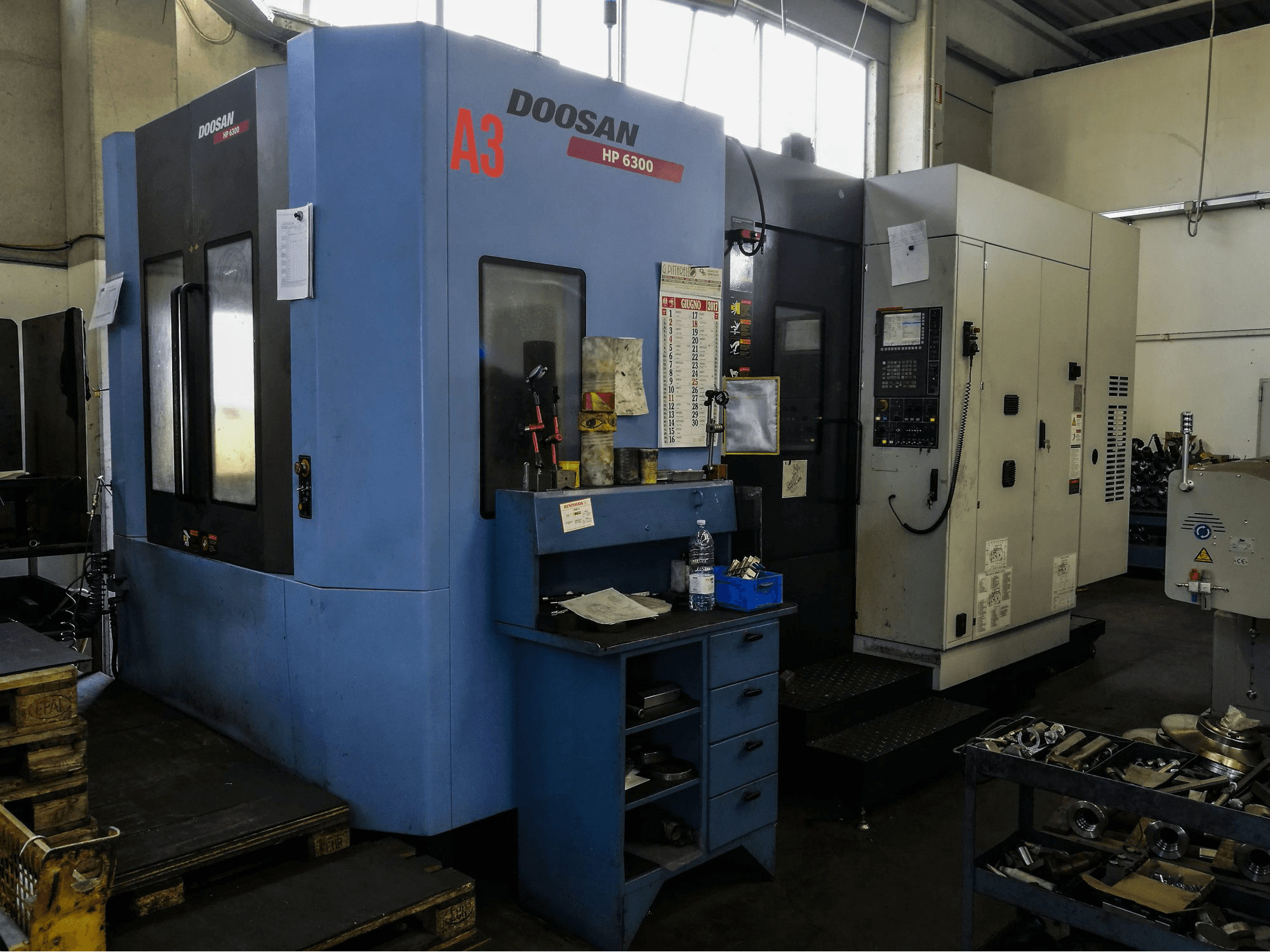

Doosan HP 6300 Machining Center

This Doosan HP 6300 Machining Center from 2012 has a production record of 16317 working hours. Operated through a FANUC 31i-MODEL A control unit (with Serial/USB interface and remote control), this young machine stands out for its 60x tools changer and its 2x pallet changer with a good pallet load ability. In the past, the equipment has handled mostly steel.

Overview

brand: DOOSAN
year: 2012
MODEL: HP 6300
production hours: 16317
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN HP 6300

General Data

Measurements width: 7300 mm
Measurements depth: 4700 mm
Measurements height: 3400 mm
Machine weight: 19500 kg

Control Unit

Model: 31i-MODEL A
Interface: Serial, USB
Remote control: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 695-10000 1/min
Spindle motor power: 30 kW
Tool taper: ISO 50

Movement

X-AXIS Movement: 1000 mm
X-AXIS Working Feed: 1-24000 mm/min
X-AXIS Rapid traverse: 48 m/min
Y-AXIS Movement: 850 mm
Y-AXIS Working Feed: 1-24000 mm/min
Y-AXIS Rapid traverse: 48 m/min
Z-AXIS Movement: 850 mm
Z-AXIS Working Feed: 1-24000 mm/min
Z-AXIS Rapid traverse: 48 m/min
B-AXIS Movement: 360° MM

Workpiece

Workpiece drm: 1000 mm
Workpiece z: 1150 mm
Workpiece weight: 1200 kg

Table

Outer length: 800 mm
Outer width: 800 mm

Tools

Slots in storage: 60
Max weight: 20 kg
Max tool diameter: 125/250 mm
Max tool length: 450 mm

Media

Power consumption: 68 kVA
Air pressure: 6 bar
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
