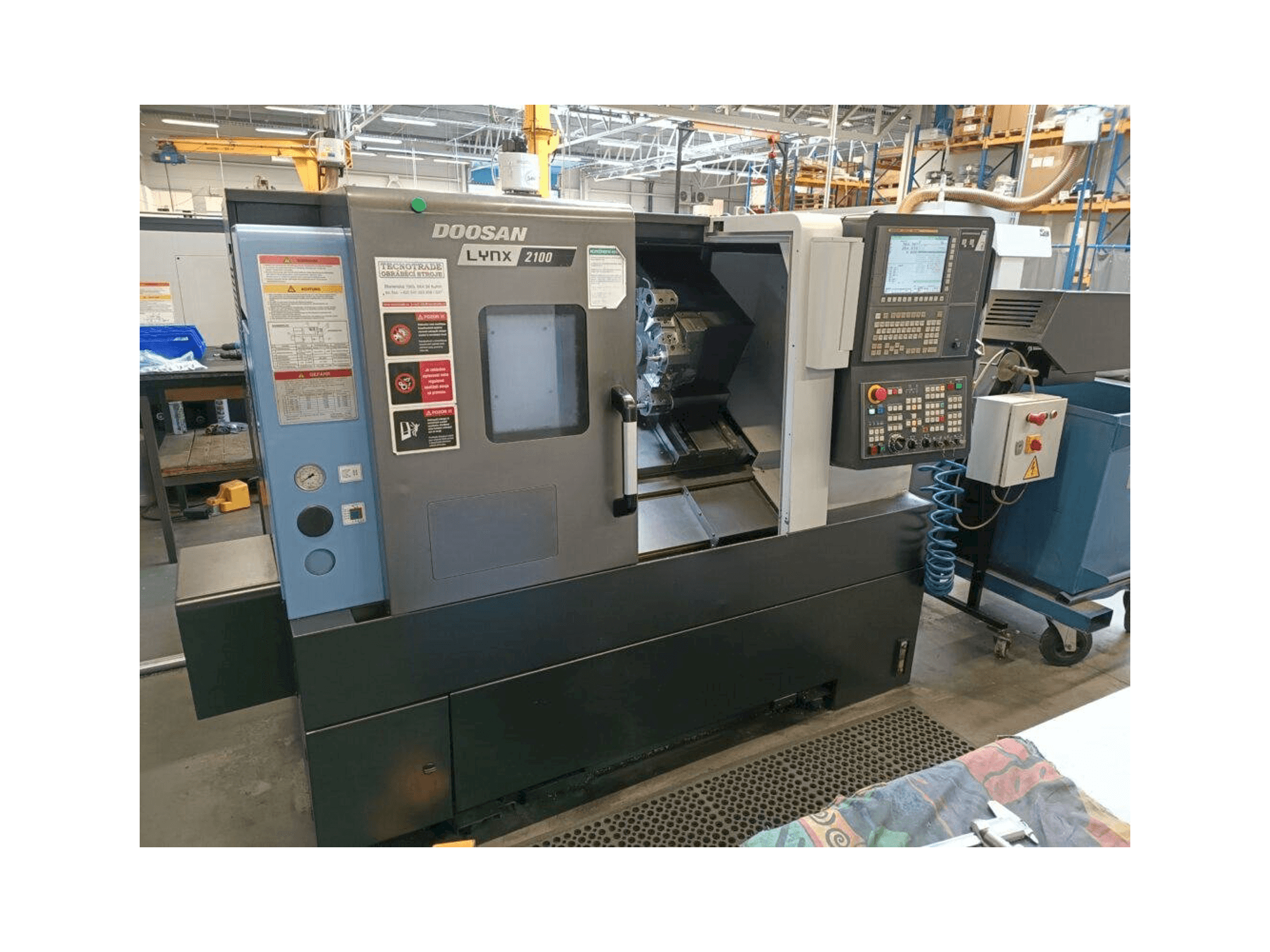

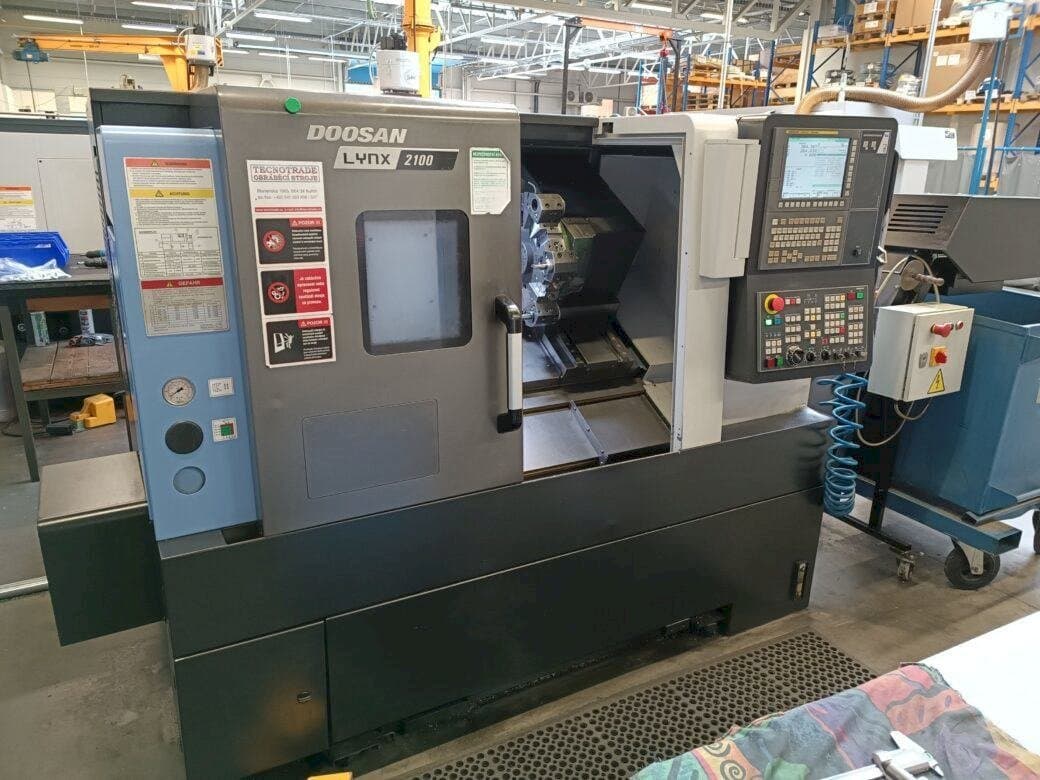

This Doosan Lynx 2100A Lathe was made in 2017 in South Korea and has 5122 production hours. It is equipped with a Fanuc i-Series control unit and has 2 axis. The machine has a spindle speed of 6000 rpm, is in good condition, and is well maintained.
Overview
- brand: DOOSAN
- year: 2017
- MODEL: Lynx 2100A
- production hours: 5122
- application type: Turning
- Location: Czech Republic
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: Fanuc
Technical Information - DOOSAN Lynx 2100A
General Data
- Measurements width: 2570 mm
- Measurements depth: 1595 mm
- Measurements height: 1693 mm
- Machine weight: 2700 kg
Control Unit
- Brand: Fanuc
- Model: i-Series
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 1/MIN
- Number of axis: 2
Movement
- X-AXIS Movement: 205 mm
- Z-AXIS Movement: 340 mm
Turret
- Number of turrets: 1
Tools
- Slots in storage: 12
Media
- Power consumption: 24,21 kVa
Additional Information
- Technical Machine Benefits:
- - Swing over bed 600 mm, over carriage 400 mm
- - Maximum machining diameter 350 mm
- - Maximum machining length 330 mm
- - Through hole diameter 52 mm
- - Main spindle motor power 15 kw
- - Rapid feedrates xz: 30 x 36m/minute
- - Spindle nose a2-6
- Qualitative Machine Benefits:
- - Very good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
