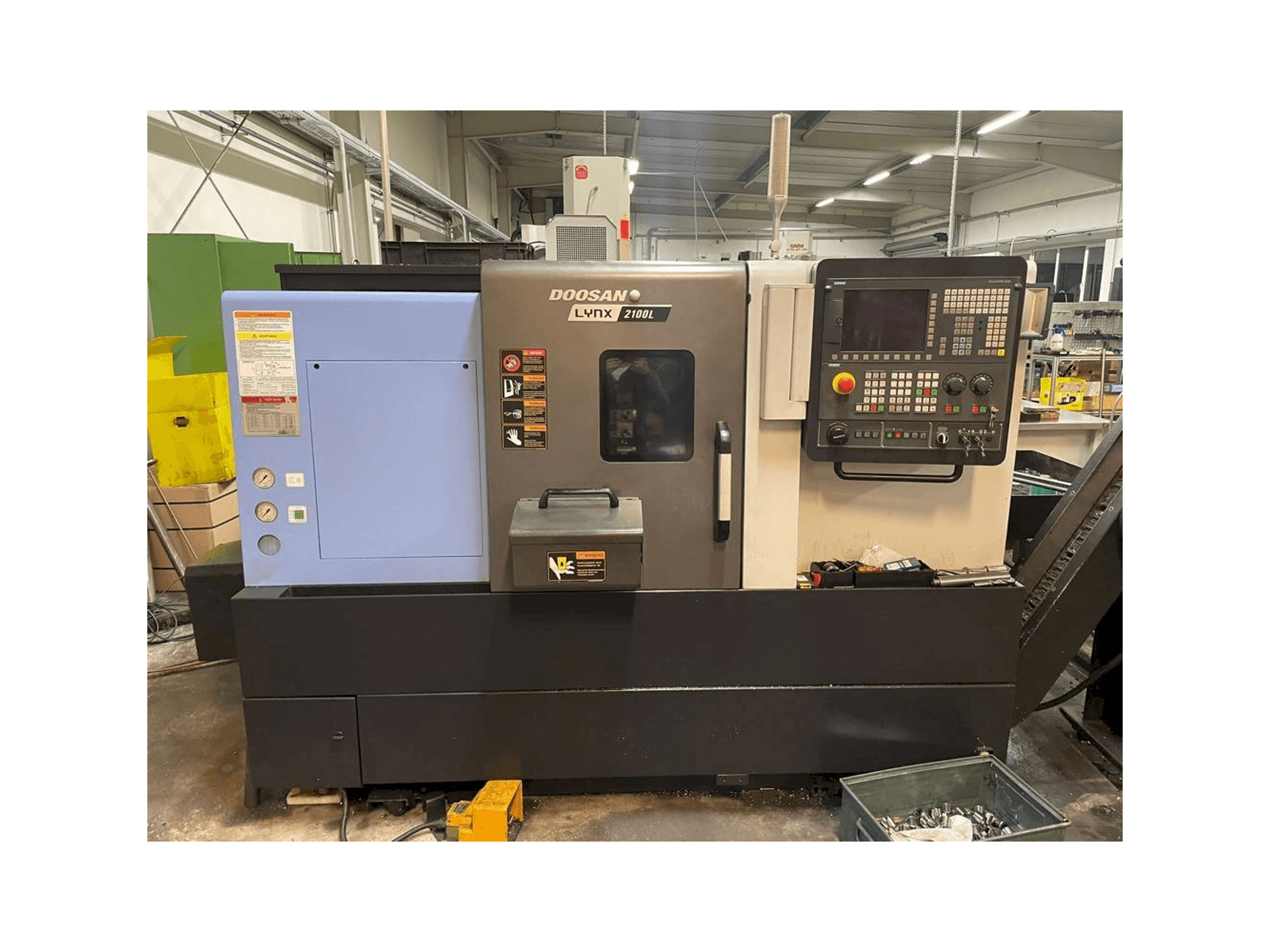

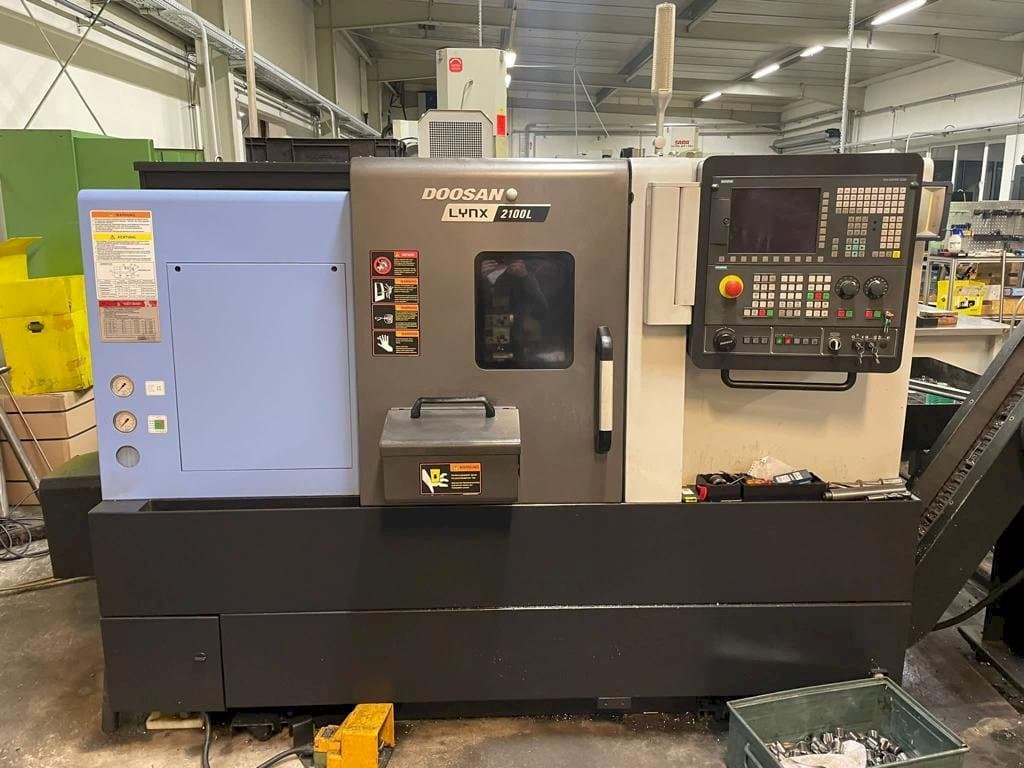

Doosan Lynx 2100LB Lathe

This Doosan Lynx 2100LB Lathe was made in 2019 in South Korea. It is equipped with a Siemens Sinumerik 828D control unit and has 2 axis. The machine has a spindle speed of 4500 rpm, is in very good condition and well maintained.

Overview

brand: DOOSAN
year: 2019
MODEL: Lynx 2100LB
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - DOOSAN Lynx 2100LB

General Data

Measurements width: 2570 mm
Measurements depth: 1595 mm
Measurements height: 1693 mm
Machine weight: 2950 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 828D

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 205 mm
Z-AXIS Movement: 560 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 600 mm, over carriage 400 mm
- - Maximum machining diameter 300 mm
- - Maximum machining length 550 mm
- - Bar capacity 65 mm
- - Main spindle motor power 15. 7/10. 5kw
- - Rapid feedrates xz: 30 x 36m/minute
- - Spindle nose a2-6
- - Tailstock travel 360 mm (taper mt #4, quill diameter 65)
- - Tool setter, parts catcher, coolant, 3 jaw chuck, usb port
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
