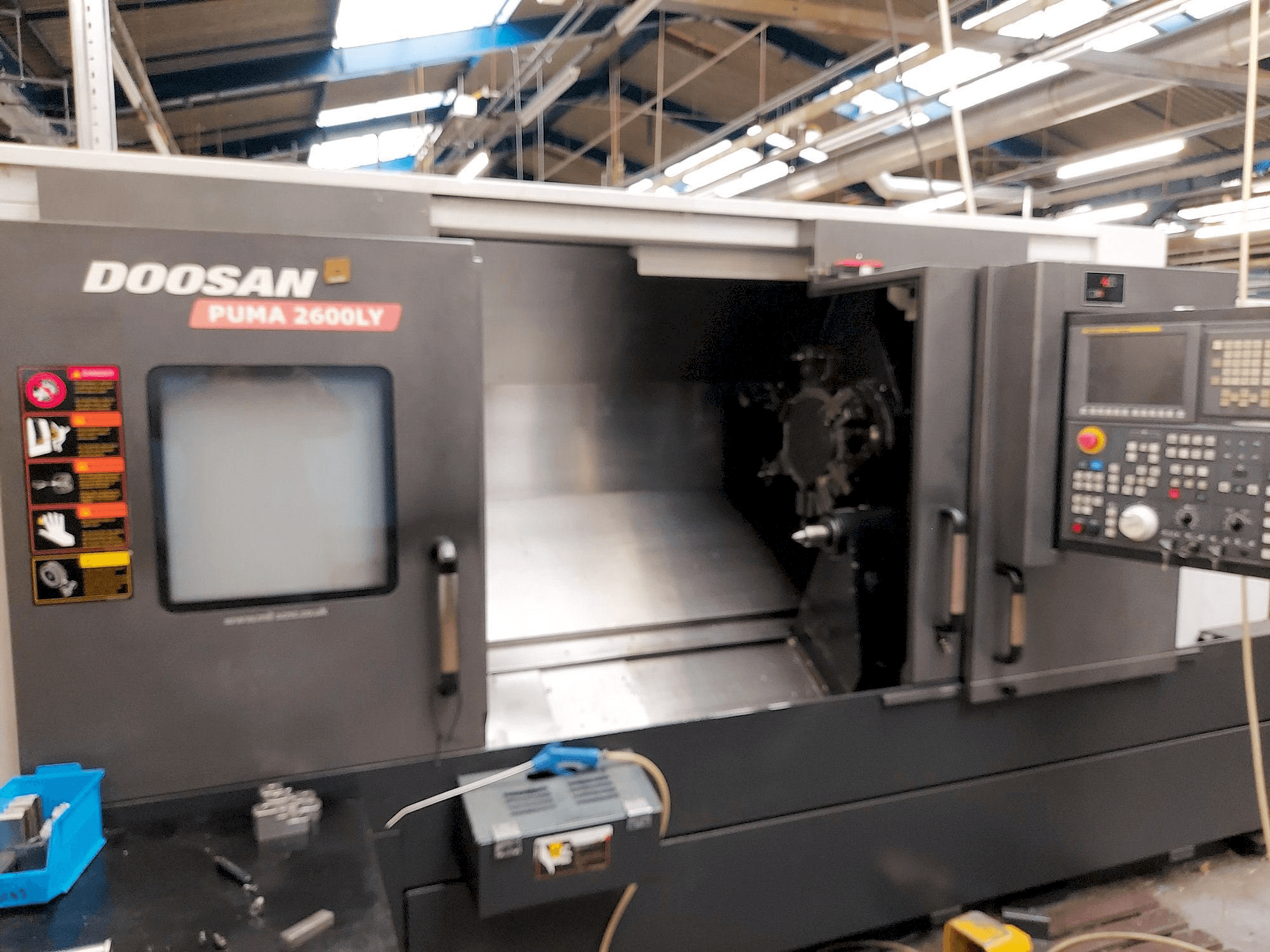

Doosan Puma 2600LY lathe machine

This Doosan 2600LY lathe machine was manufactured in South Korea in the year 2011. This 4 axis machine operates through a DOOSAN - FANUC i Series control unit. The machine has a spindle speed of to 3500 rpm. This machine is in very good condition.

Overview

brand: DOOSAN
year: 2011
MODEL: Puma 2600LY
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Puma 2600LY

General Data

Measurements width: 5389 mm
Measurements depth: 1965 mm
Measurements height: 1863 mm
Machine weight: 7300 KG

Control Unit

Model: i Series
Brand: FANUC

Main drive

Number of spindles: 1

Movement

X-AXIS Movement: 260 MM
Y-AXIS Movement: 52.5 MM
Z-AXIS Movement: 1350 MM

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional Equipment

- Bar feeder IEMCA KID80

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 780 mm, over carriage 630 mm
- - Maximum machining diameter 376 mm
- - Maximum machining length 1280 mm
- - Bar capacity 76 mm
- - Main spindle motor power 22/15 kw
- - Turret milling power 5. 5 kw; speed 5000 rpm
- - 0. 001 degree c axis
- - Tool setter, parts catcher, coolant, barfeed
- - Collet chuck, 3 jaw chuck
- - Tailstock (taper mt #5, quill diameter & stroke 100 mm)

Extra information

- 4 controlled axes (X, Z, C, Y)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
