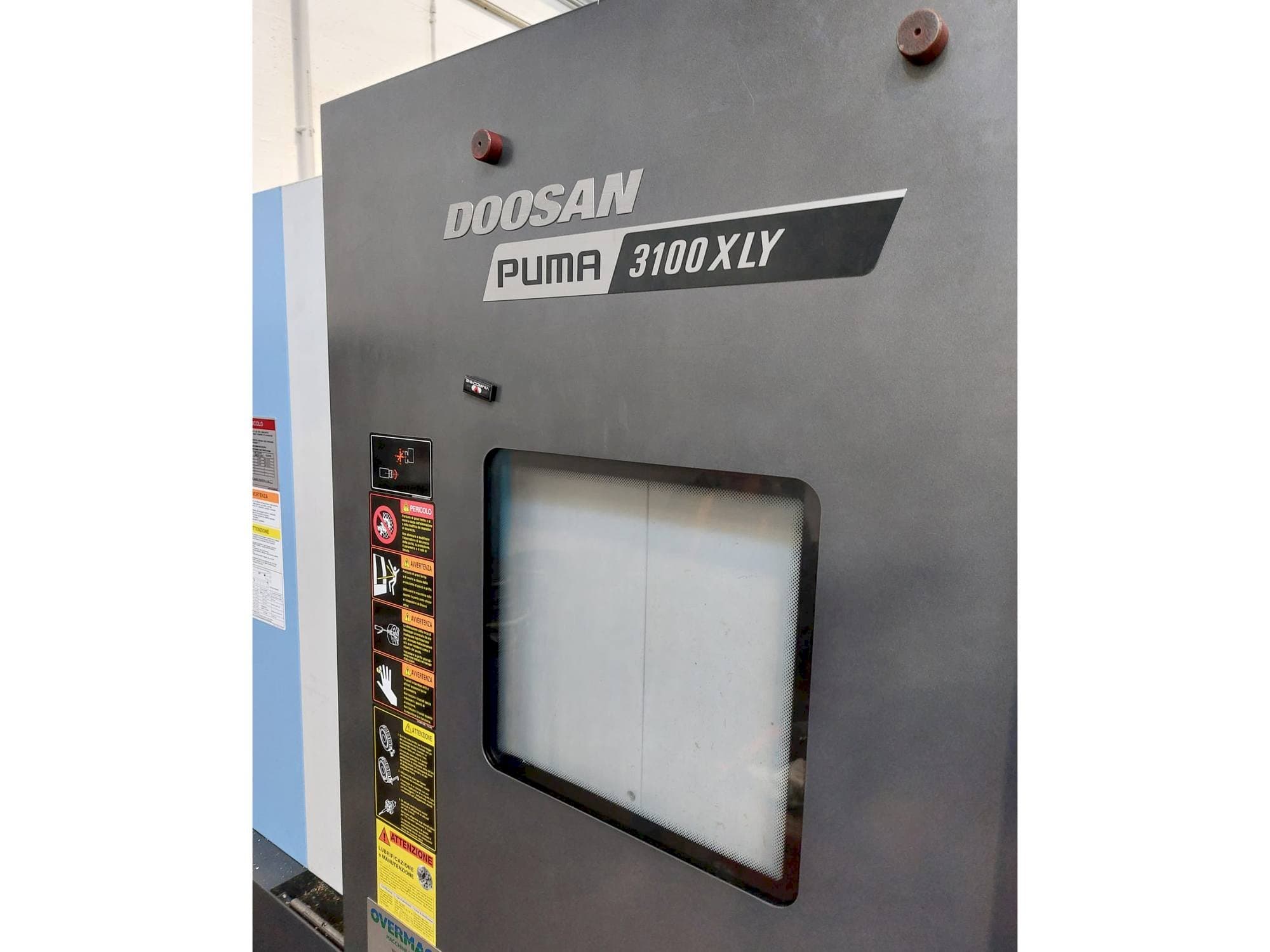

This Doosan Puma 3100LY Lathe was manufactured in the year 2019 in Korea and has approximately 1150 hours. It is equipped with a DOOSAN FANUC i SERIES control unit. The machine has a spindle speed of 3000 rpm.
Overview
- brand: DOOSAN
- year: 2019
- MODEL: Puma 3100LY
- production hours: 1150
- application type: Turning
- Location: Italy
- machine type: Lathe
- availability: Sold
- control unit brand: DOOSAN FANUC
Technical Information - DOOSAN Puma 3100LY
General Data
- Measurements width: 2280 mm
- Measurements depth: 5595 mm
- Measurements height: 2315 mm
- Machine weight: 10800 kg
Control Unit
- Brand: DOOSAN FANUC
- Model: i SERIES
Main drive
- Spindle speed range: 3000 1/MIN
- Spindle motor power: 22/18.5 KW
Movement
- X-AXIS Movement: 293 mm
- Y-AXIS Movement: 2190 mm
- Z-AXIS Movement: 130 mm
Additional Information
- Technical Machine Benefits:
- - Rotating diameter on bench 850 mm
- - Rotating diameter on the undercarriage 670 mm
- - Max. Turning diameter 420 mm
- - Max. Turning length 2125 mm
- - Bar diameter 102 mm
- - Spindle hole diameter 115 mm
- - Number of tool stations 12
- - External tool size 25 mm.
- - Boring diameter 50 mm
- - Indexing time 0. 15 sec
- Qualitative Machine Benefits:
- - Live tool speed 5000
- - Stem diameter 120
- - 120 row stroke
- - Axis feed motor 4. 0/7. 0 kw
- - 5. 5/7. 5 kw powered tool motor
- - Coolant pump motor 0. 4 kw
- - Lunette included
- - Tailstock included
- - 9 live holders included
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
