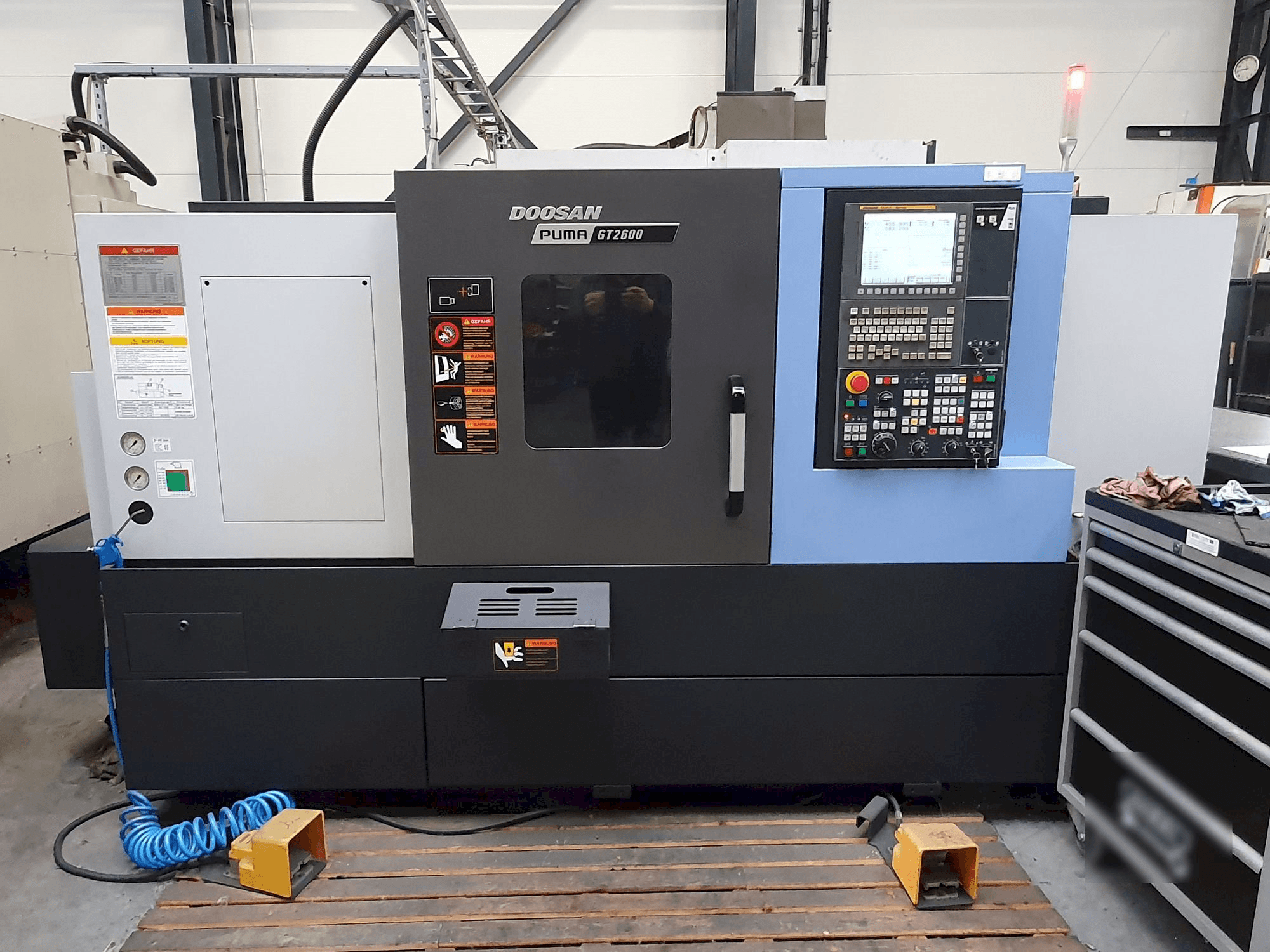

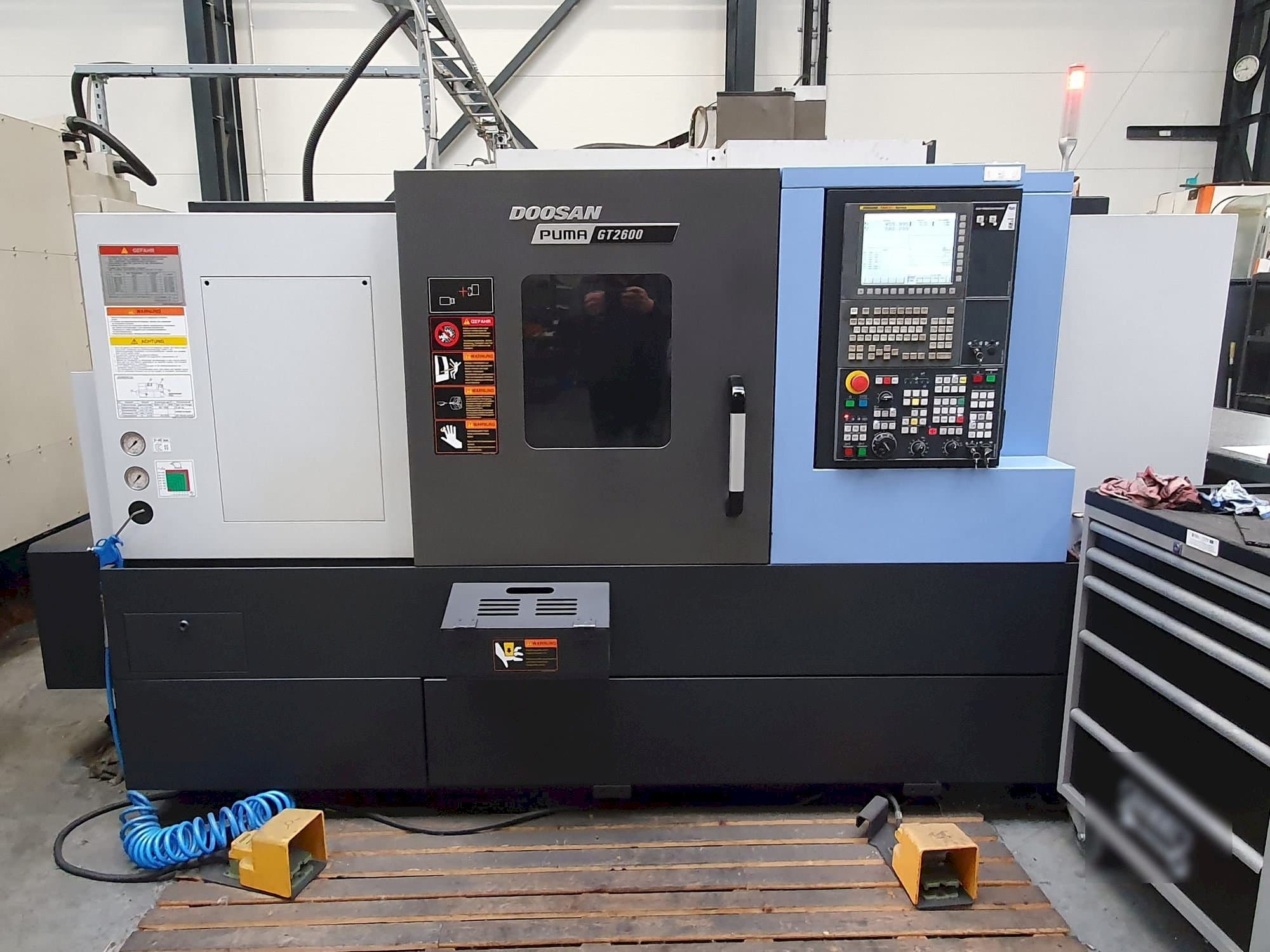

Doosan PUMA GT2600 Lathe

This Doosan GT2600 Lathe was manufactured in Korea in 2017. It shows 226 production hours. This 2 axis machine is equipped with a FANUC i Plus control unit. It operates with a spindle speed of 3500 rpm. It comes with some accessories and full documentation. The machine is in perfect condition, not used at the production. Ready for tests.

Overview

brand: DOOSAN
year: 2017
MODEL: PUMA GT2600
production hours: 226
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN PUMA GT2600

General Data

Measurements width: 3290 mm
Measurements depth: 1632 mm
Measurements height: 1700 mm
Machine weight: 4700 KG

Control Unit

Model: i Plus
Brand: FANUC

Main drive

Spindle speed range: 3500 1/MIN
Spindle motor power: 22 / 158.5 kW
Number of axis: 2

Movement

X-AXIS Movement: 265 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 620 mm
Z-AXIS Rapid traverse: 30 m/min

Tools

Number of stations: 10 pcs

Media

Main electronic connection: 380V - 50/60 Hz
Power consumption: 35 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 630 mm
- - Swing over saddle: 460 mm
- - Max turning dia. : 460 mm
- - Max turning length: 658 mm
- - Max. Torque: 622 nm
- - Chuck size: 10 inch
- - Tail stock travel: 680 mm
- - Bar working dia. : 81 mm
- - Spindle through hole: 91 mm
- - Spindle bearing dia. : 140 mm
Qualitative Machine Benefits:
- - Quill di. : 100 mm
- - Quill bore taper: mt5
- - Cooler tank capacity: 268 liters
- - Machine is in perfect condition, not used at the production
- - Full documentation available
- - Ready for tests
- - Some accessories included
- - There are no tooling included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
