Doosan Puma TT1800SY Lathe

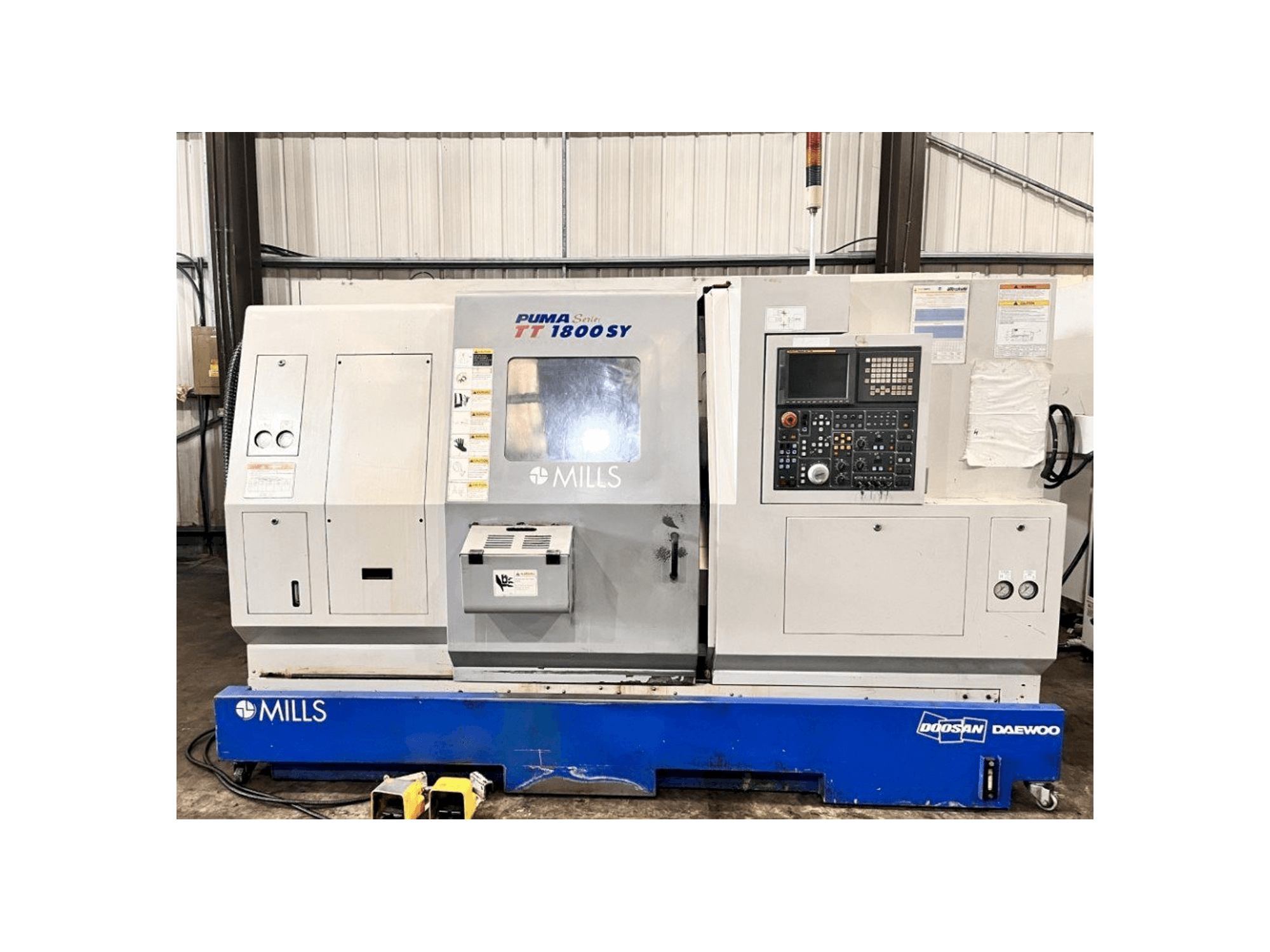

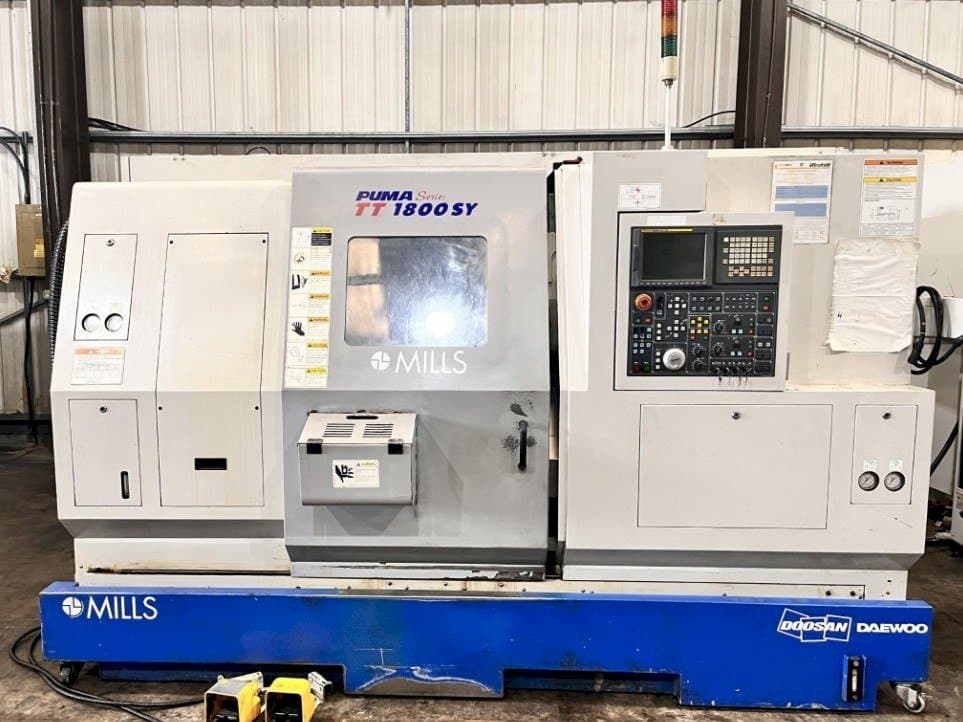

This Doosan TT1800SY Lathe machine was manufactured in the year 2006 in South Korea. It is equipped with a FANUC 18I-TB control unit. The machine has a spindle speed up to 5000 rpm. It counts with 8 controlled axes. Very good condition.

Overview

brand: DOOSAN
year: 2006
MODEL: TT1800SY
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN TT1800SY

General Data

Measurements width: 3905 MM
Measurements depth: 2070 MM
Measurements height: 2080 MM
Machine weight: 8800 kg

Control Unit

Model: 18I-TB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN

Movement

X-AXIS Movement: 165/190 MM
Y-AXIS Movement: +/- 50 MM
Z-AXIS Movement: 700/720 MM
A-AXIS Movement: 770 MM

Turret

Number of turrets: 2

Tools

Slots in storage: 12+12

Media

Chip conveyor: Yes

Additional Equipment

- Machine manual

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 230 mm
- - Bar capacity 65 mm for both spindles
- - Main spindle motor power 22/15 kw
- - Subspindle max. Speed 5000 rpm
- - 0. 001 degree c1 & c2 axis
- - Tool setter, parts catcher, coolant, barfeed magazine
- - Collet chuck
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
