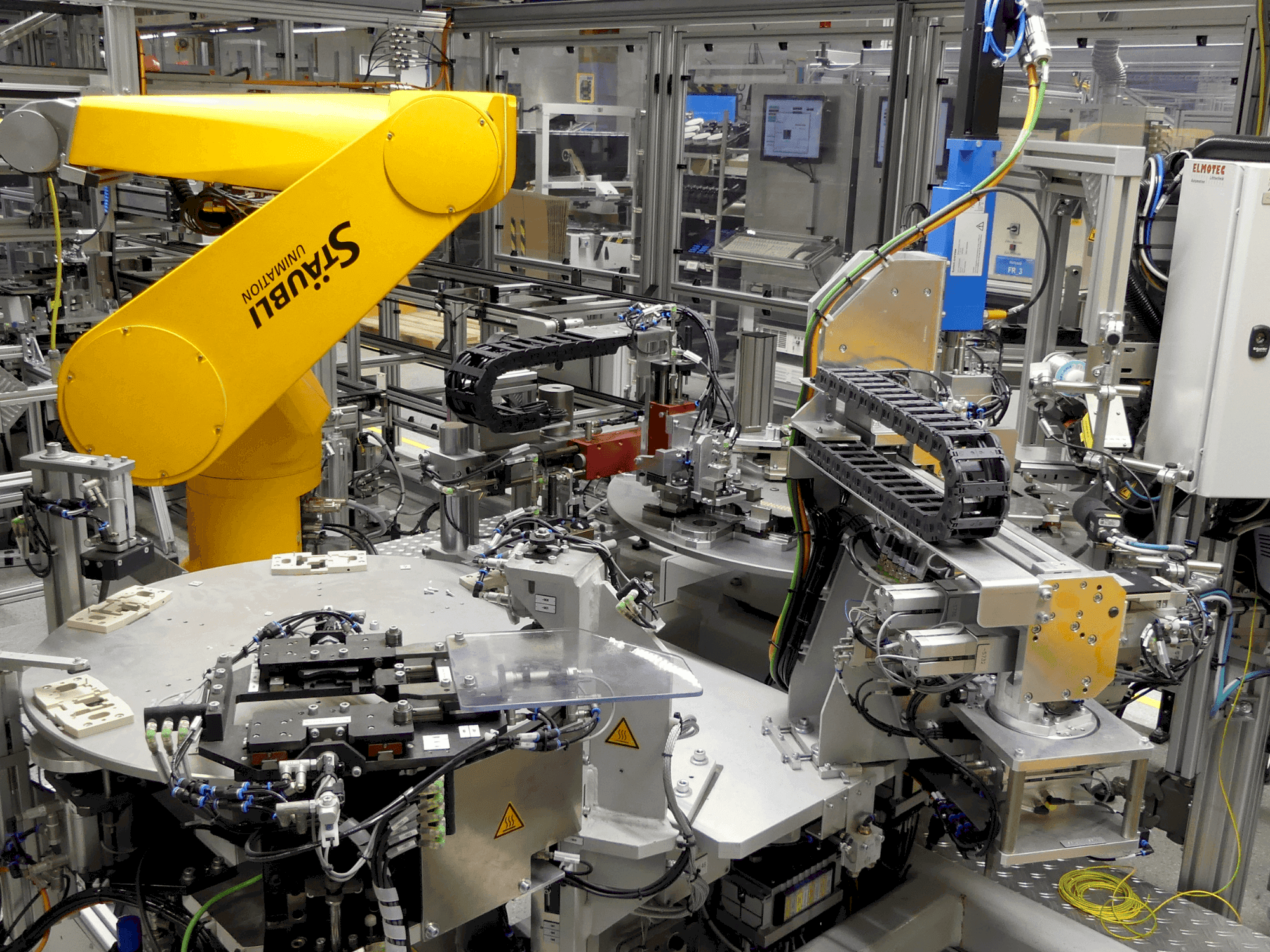

ELMOTEC - 16479DE-OTH-ELM-2021-00001

Additional Equipment

• - Safety fence included
• - Console and pneumatic units for horizontal and vertical slide
• - Grippers: Includes 2 grippers specifically for batteries
• - Pneumatic pressing unit for printed circuit board
• - Pneumatic contacting unit for PCB after battery assembly
• - HPL translator integrated as NC axis

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Integrated translation station for lp assembly
  • - This setup includes a comprehensive range of equipment and features to support various assembly and manufacturing tasks, particularly in handling batteries and printed circuit boards efficiently.
  • - Axes: 6-axis robot with multiple grippers
  • - Robot and gripper combinations: one robot with gripper, additional robot with gripper
  • - Provide defined circuit board / reading a data matrix code from the printed circuit board / insert detector into flash programmer, eject nok / record ired and insert into circuit board / attach the measuring chamber to the pcb assembly and heat caulk
  • - Get the upper part of the detector with power supply and fibre-optic rod (a finished group) and / insert the pcb assembly into 4 plastic domes. / get battery and fit on circuit board (one or two) / check batteries for correct installation via magnet. / get the cover and insert it into 8 plastic domes.
  • - Joining plastic domes via hot caulking. / insert detector in function tester/smoke equalisation, eject nok / record detector from function tester/ smoke calibration / insert 12% of the detectors in random sample, eject nok / sampling - record detector / product labelling

Extra information

• - Machine still under power
