➤ Used EMAG VL 3 Lathe

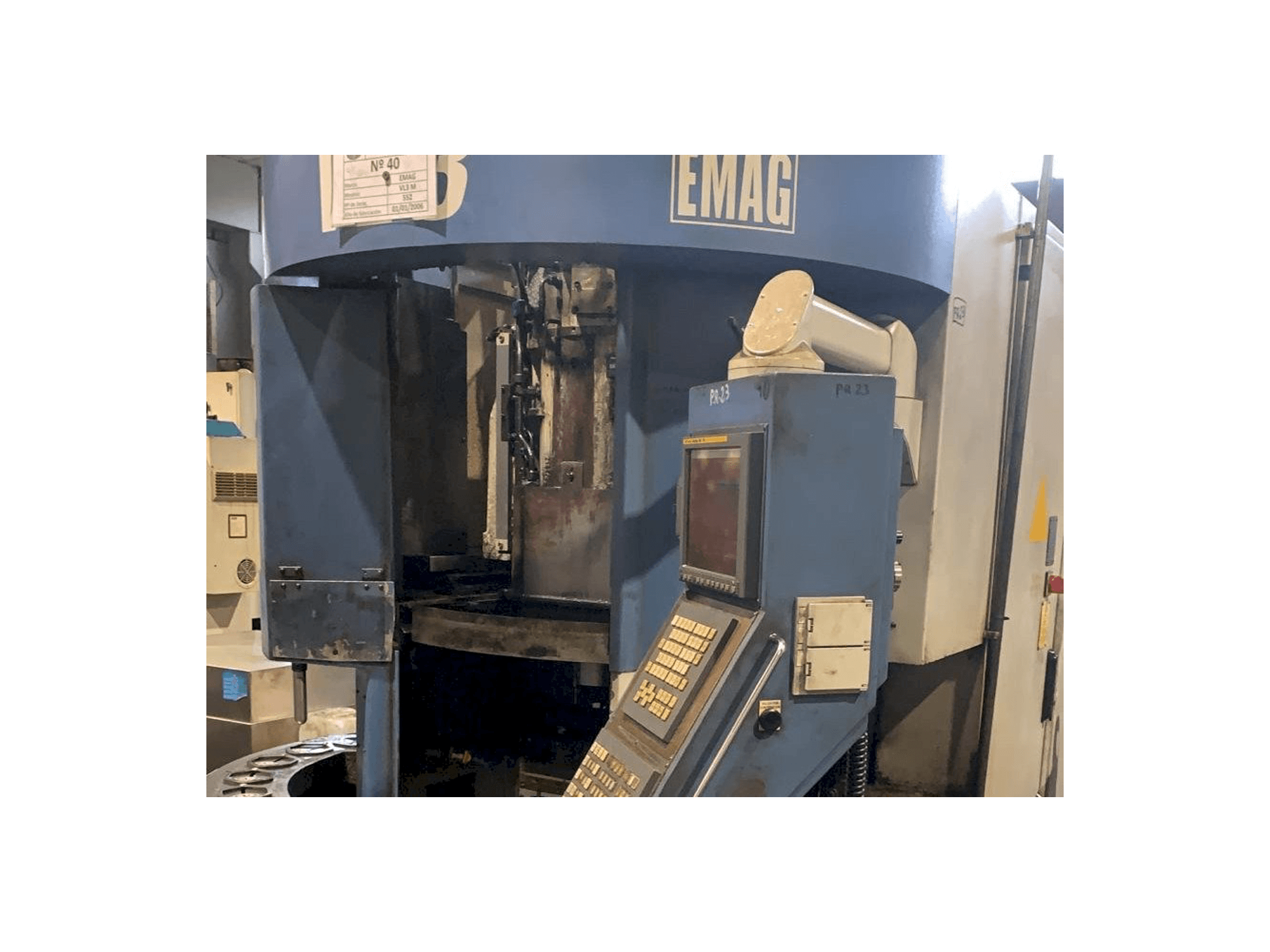

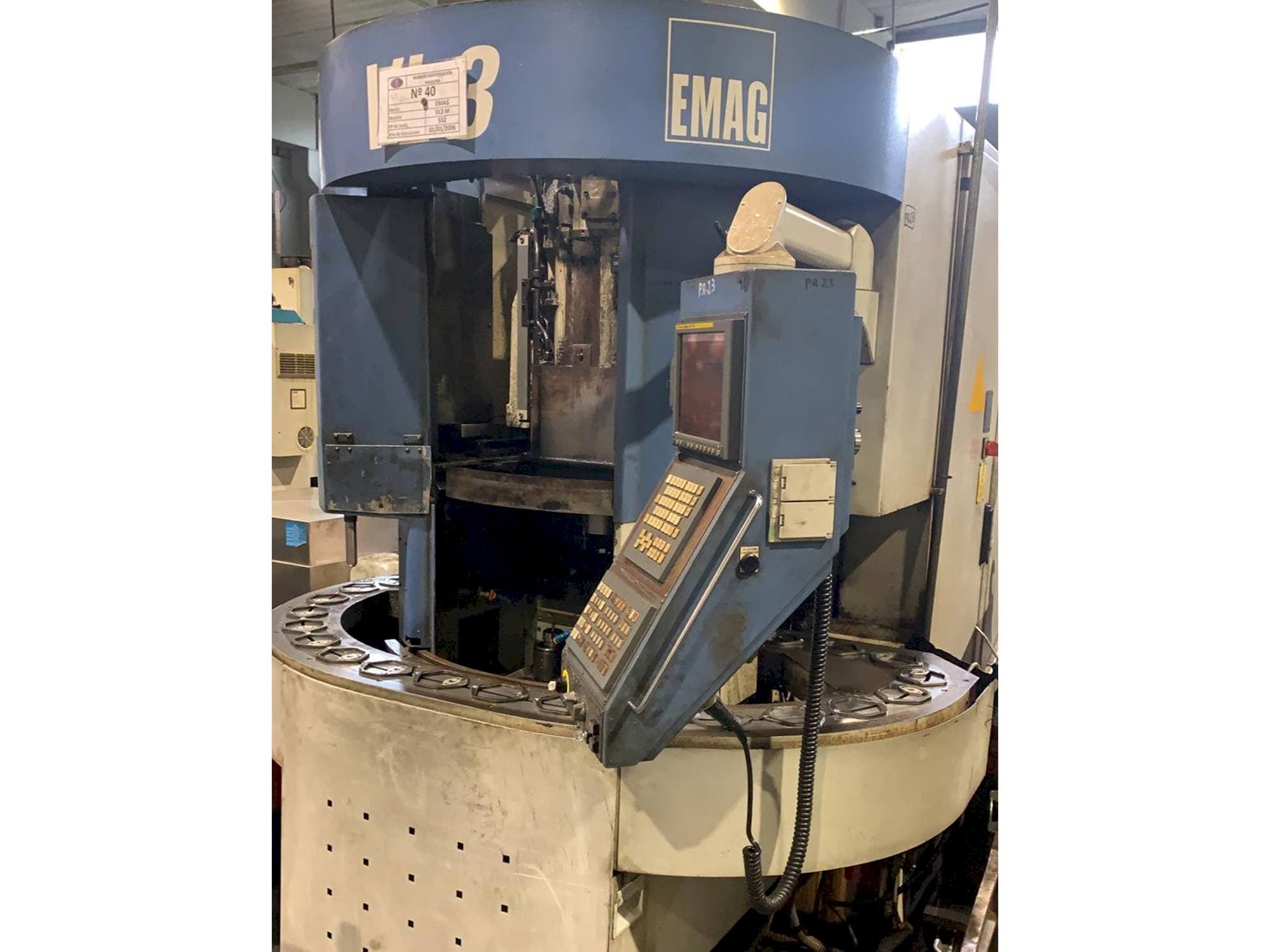

This EMAG VL 3 Lathe was built in 2005 in Germany. It is equipped with a FANUC Series 18i-TB Control unit and can perform with a spindle speed up to 7500 rpm. It stands out for having a a motorized turret VDI 40.

Overview

brand: EMAG
year: 2005
MODEL: VL 3
application type: Turning
Location: Spain
machine type: Vertical Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - EMAG VL 3

General Data

Measurements width: 2450 mm
Measurements depth: 1900 mm
Measurements height: 2300 mm
Machine weight: 5500 kg

Control Unit

Model: Series 18i-TB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 7500 rpm 1/MIN
Spindle bore: 80 mm

Movement

X-AXIS Movement: 400 mm
X-AXIS Feed Force: 5 kN
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Feed Force: 5 kN
Z-AXIS Movement: 200 mm
Z-AXIS Feed Force: 5 kN
Z-AXIS Rapid traverse: 30 m/min

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 31 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Motorized turret vdi 40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
