EMCO EMCOTURN 342

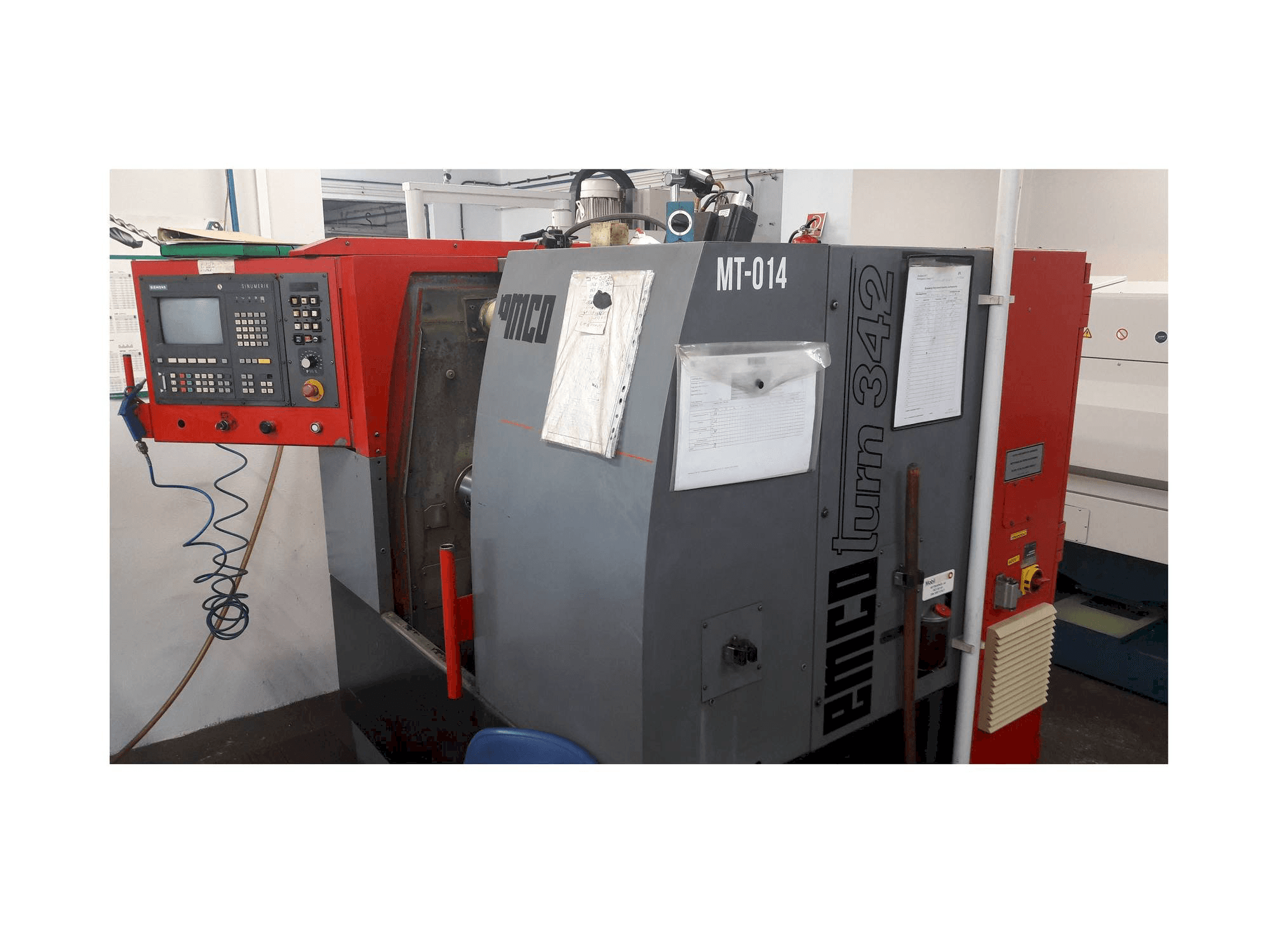

This EMCO TURN 342 Lathe was made in 1993 in Austria. It is equipped with a SIEMENS SINUMERIK control unit. This machine stands out due to its spindle speed range of 0-6000 rpm and its spindle bore 53 mm. Includes 9 tool holders, a chuck, and a machine manual.

Overview

brand: EMCO
year: 1993
MODEL: TURN 342
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - EMCO TURN 342

General Data

Measurements width: 2275 mm
Measurements depth: 2115 mm
Measurements height: 1710 mm
Machine weight: 2400 kg

Control Unit

Model: SINUMERIK
Brand: SIEMENS

Main drive

Spindle speed range: 0-6000 1/MIN
Spindle motor power: 7.5/11 KW
Spindle bore: 53 mm
Tool taper: DIN 55026

Movement

X-AXIS Movement: 150 mm
X-AXIS Working Feed: 4000 N
X-AXIS Rapid traverse: 12 m/min
Z-AXIS Movement: 300 mm
Z-AXIS Working Feed: 6000 N
Z-AXIS Rapid traverse: 12 m/min

Media

Main electronic connection: 400 v 50/60 hz
Power consumption: 15 kva

Additional Equipment

- 9 tool holders
- Chuck

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Circumferential diameter over bed 340 mm
- - Circulation diameter over cross slide 158 mm
- - Max. Workpiece size for chuck parts (theoretical) 210 mm
- - Spindle stroke diameter in front bearing 80 mm
- - Diameter in the drawtube 42 mm
- - Max. Torque 90 nm
- - Pinole diameter 60 mm
- - Inner cone mk4
- - Max. Headstock displacement by hand 300 mm
Qualitative Machine Benefits:
- - Machine manual

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
