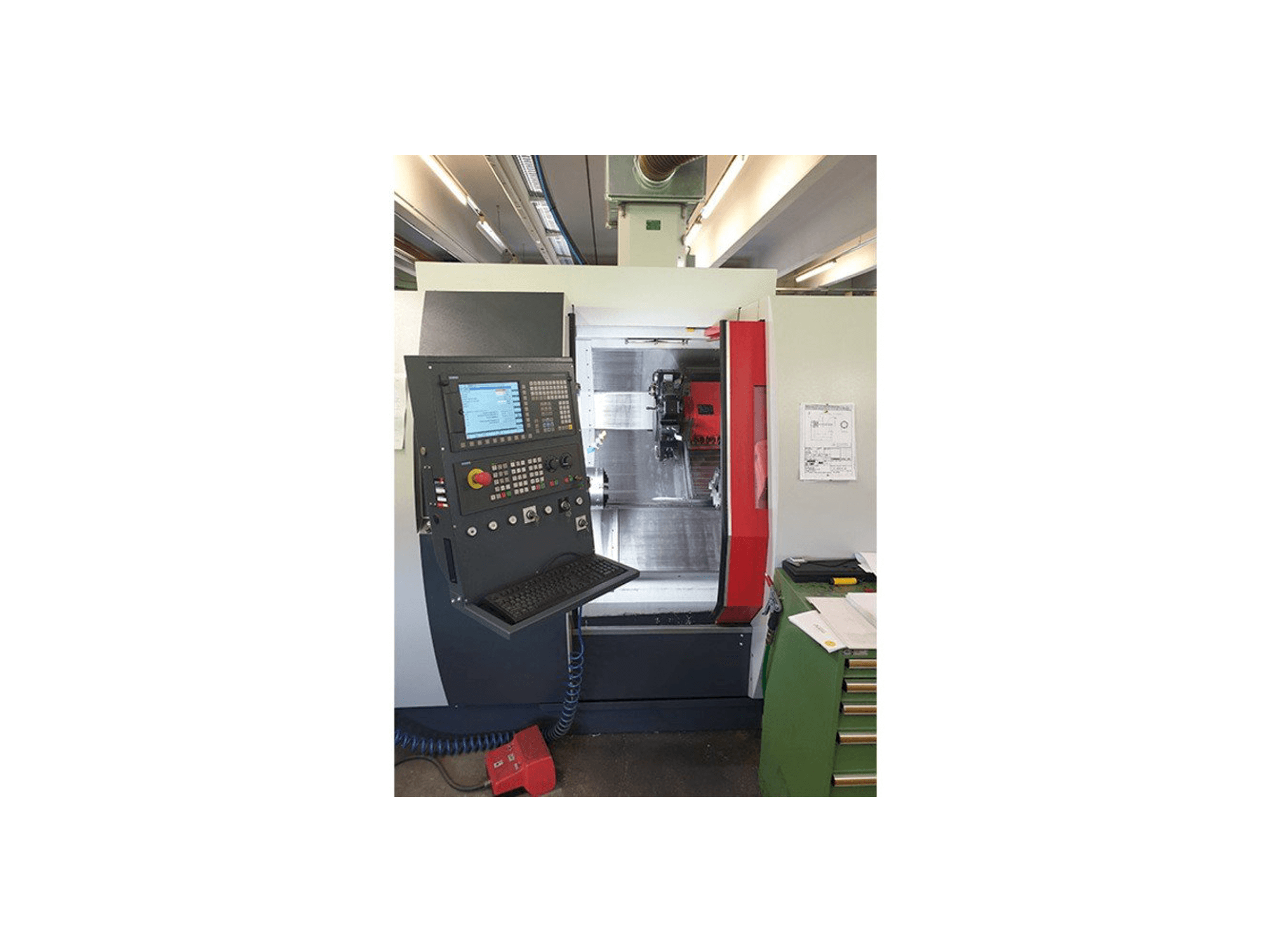

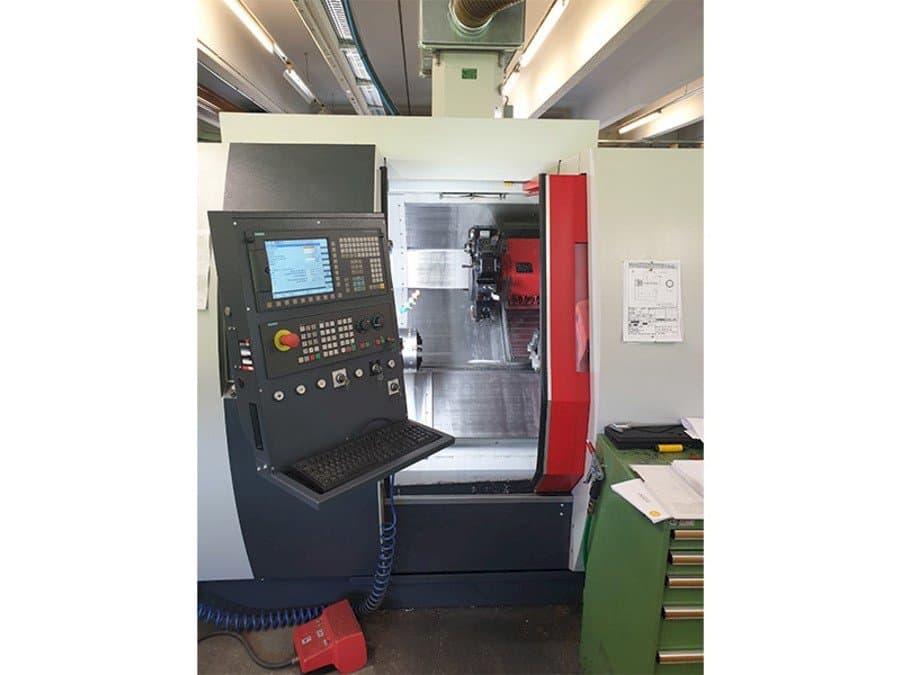

EMCO Turn E 65 Lathe

This EMCO Turn E 65 Lathe was manufactured in the year 2018. It has a record of only 388 production hours. It is equipped with a Siemens Sinumerik 828D control unit. This double spindle machine can work wit a spindle speed up to 5000 rpm, a max turning diameter 500 mm, and a max part length 520 mm. It includes some tools as additional equipment.

Overview

brand: EMCO
year: 2018
MODEL: Turn E 65
production hours: 388
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - EMCO Turn E 65

Control Unit

Model: Sinumerik 828D
Brand: SIEMENS

Main drive

Spindle speed range: 0 - 5000 1/MIN
Spindle motor power: 22 kw
Spindle bore: 73 (105) mm

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: 80 (+/-40) mm
Z-AXIS Movement: 610 mm

Media

Main electronic connection: 3x400V - 50/60Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Double spindle machine
- - Counter spindle with tailstock function. (contact pressure programmable via current consumption)
- - Vdi-40 revolver - 12-station, driven
- - Automatic door
- - Swing diameter over bed 610 mm
- - Swing diameter over cross slide 360 mm
- - Center distance for tailstock version 682 mm distance main spindle - counter spindle 840 mm
- - Max. Turning diameter 500 mm
- - Max. Part length 520 mm
- - Max. Bar diameter 65 (95) mm
Qualitative Machine Benefits:
- - Very good condition
- - The machine is ready for operation and under power and can be inspected at any time by appointment

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
