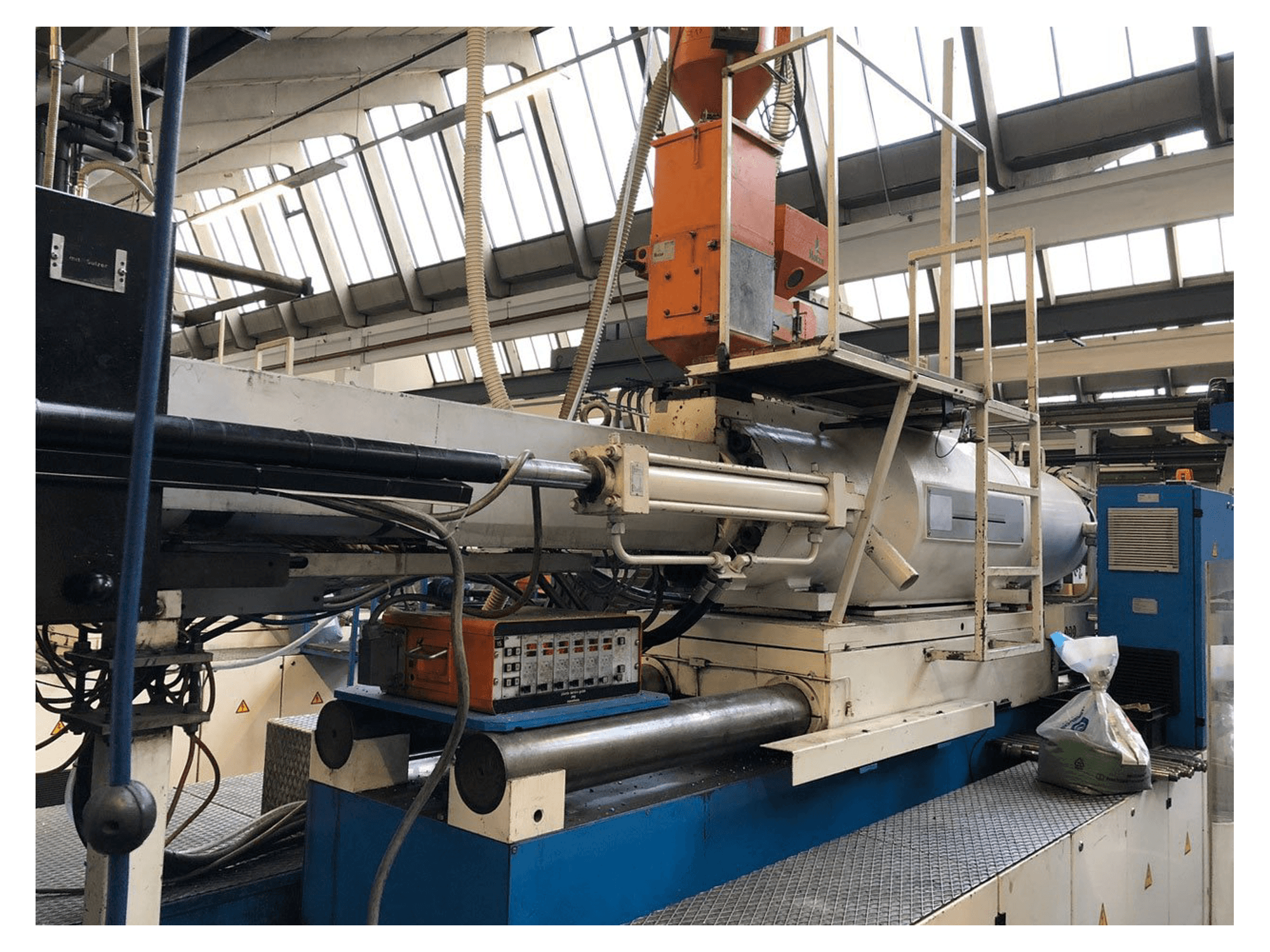

ENGEL ES 7000/800 Injection Moulding Machine

This ENGEL ES 7000/800 Injection Moulding Machine was built in 1990 in Austria and shows a production record of 121180 hours. Operated through an ENGEL Control unit, this model offers a clamping force of 8000 kN and 2200 bar injection pressure. It comes with an additional ENGEL ERC 83/1-C Robot.

Overview

brand: Engel
year: 1990
MODEL: ES 7000/800
production hours: 121180
application type: Injection Moulding
Location: Austria
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel ES 7000/800

General Data

Machine weight: 61000 kg

Control Unit

Brand: ENGEL

Main drive

Main motor power: 132 kW (55+55+22 kW)

Injection Unit

Screw diameter: 90 mm
Shot weight: 3255 g
Injection pressure: 2200 bar

Clamping unit

Clamping force: 8000 kN
Opening stroke: 1000 mm
Max open daylight: 1000 mm
Distance between bars: 1000 mm
Mould height min: 400 mm
Mould height max: 1000 mm
Size of mold platens: 1500 x 1500 mm
Ejector stroke: 300 mm

Media

Power consumption: 190 kW

Additional Equipment

- Robot ENGEL ERC 83/1-C

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
