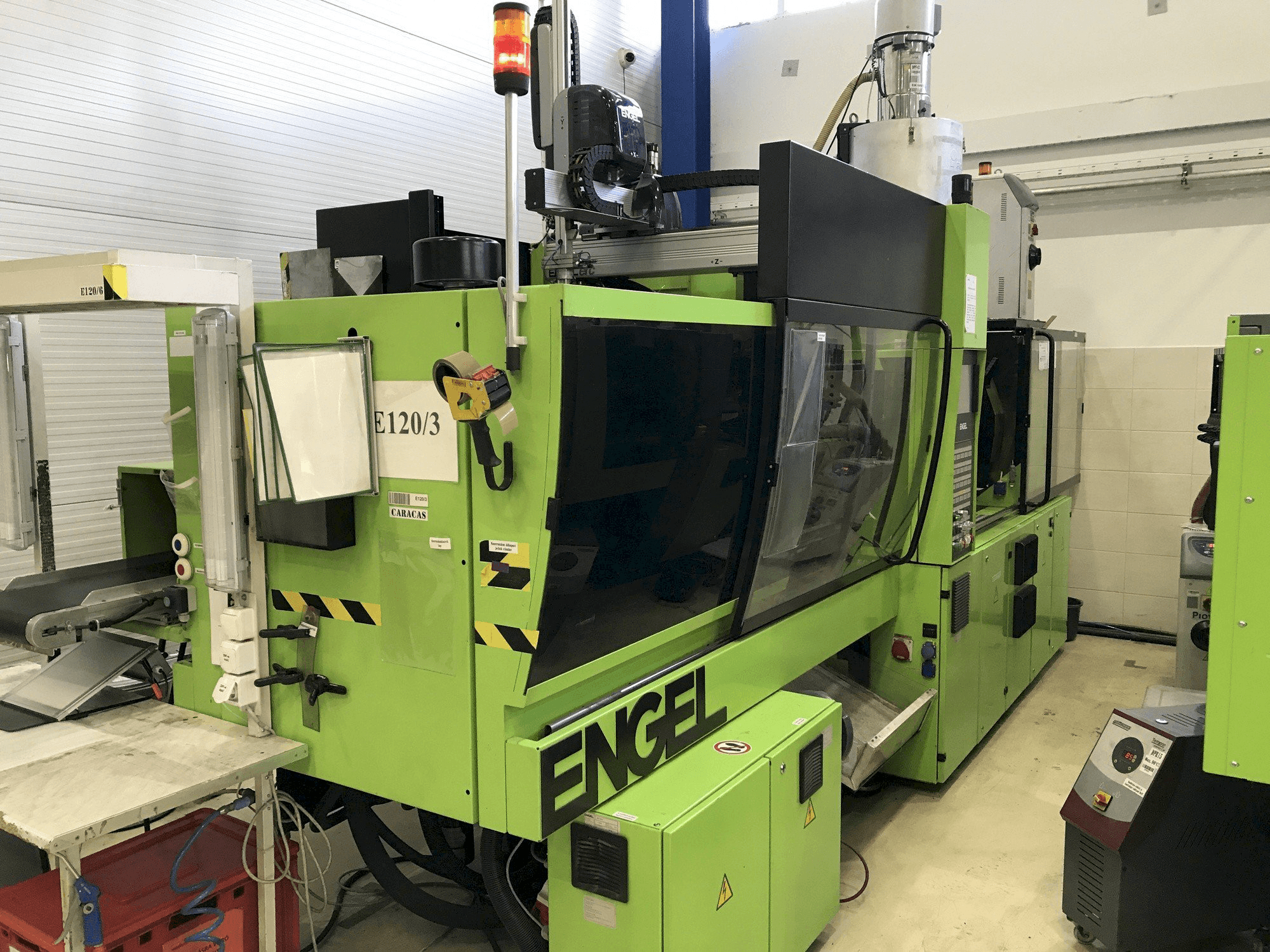

ENGEL VC 310/120 Electric Injection Moulding Machine

This ENGEL VC 310/120 Electric Injection Moulding Machine was built in 2005 in Germany. It has been working for 72897 hours. Equipped with an Engel CC200 control unit this machine is capable of performing with a clamping force of 1200 kN and an injection pressure of 1469 bar. This machine stands out because comes with an Engel ERC 23/2-F robot in additional equiment.

Overview

brand: Engel
year: 2005
MODEL: VC 310/120 Electric
production hours: 72897
application type: Injection Moulding
Location: Hungary
machine type: Electrical Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel VC 310/120 Electric

General Data

Measurements width: 4860 mm
Measurements depth: 1500 mm
Measurements height: 2100 mm
Machine weight: 7700 kg

Control Unit

Model: CC200
Brand: ENGEL

Injection Unit

Screw diameter: 35 mm
Stroke volume: 154 CM³
Injection pressure: 1469 bar

Clamping unit

Clamping force: 1200 kN
Opening stroke: 507 mm

Media

Power consumption: 15 kVA

Additional Information

Machine history

Industries: Automotive

Machine Benefits

Technical Machine Benefits:
- - Engel erc 23/2-f robot

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
