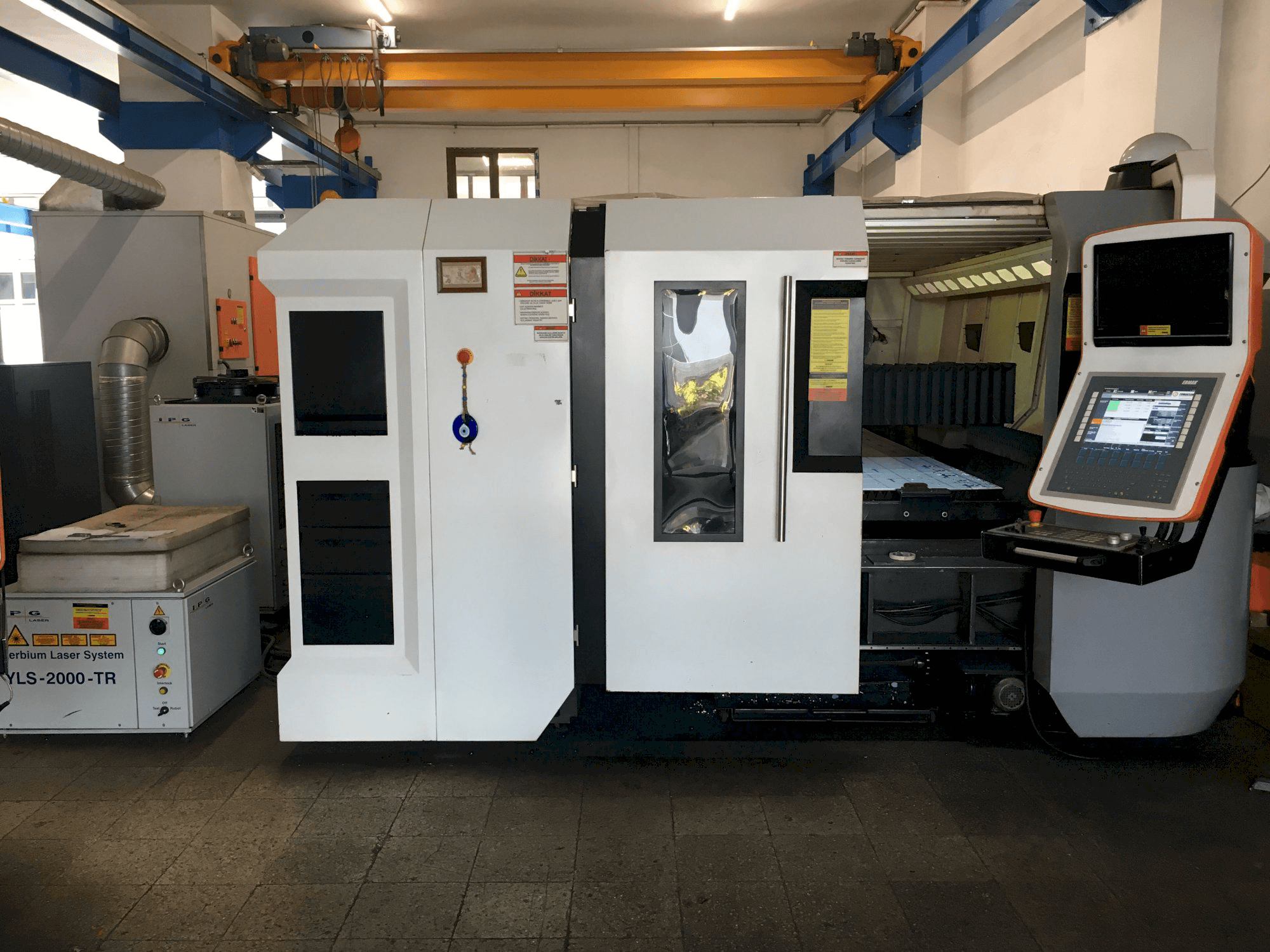

ERMAKSAN FIBERMAK Momentum Gen-3 Fiber Laser Cutting Machine

This ERMAKSAN FIBERMAK Momentum Gen-3 Fiber Laser Cutting Machine from 2014 was made in Turkey and has been operative for 17317 production hours since then. Operated through a Beckhoff Control unit, this machine has mainly processed steel sheets during the past; standing out due to its 4 axis movement range and double bed changer system. This machine's biggest impact point is that its cutting head was renewed in 2016 with a much faster cutting head. Must be noted that this model is in excellent conditions as it has been inspected by ERMAKSAN itself on a regular basis.

Overview

brand: ERMAKSAN
year: 2014
MODEL: FIBERMAK Momentum Gen-3
production hours: 17317
application type: Cutting
Location: Turkey
machine type: Fiber Laser Cutting Machine
availability: Sold
control unit brand: BECKHOFF

Technical Information - ERMAKSAN FIBERMAK Momentum Gen-3

General Data

Measurements width: 3180 mm
Measurements depth: 8935 mm
Measurements height: 2325 mm
Machine weight: 11200 kg

Control Unit

CNC main language: English
CNC language customizable: Yes
Brand: BECKHOFF

Main drive

Laserpower: 2 kW
Laser type: Ybettrium Laser System
Laser brand: IPG

Movement

X-AXIS Movement: 3050 mm
Y-AXIS Movement: 1530 mm
Z-AXIS Movement: 150 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm
Workpiece weight: 1500 kg

Max Material thickness

Steel: 16 mm
Stainless steel: 8 mm
Aluminum: 8 mm

Media

Main electronic connection: 400 V
Power consumption: 30 kW

Additional Equipment

- Dust collector

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
