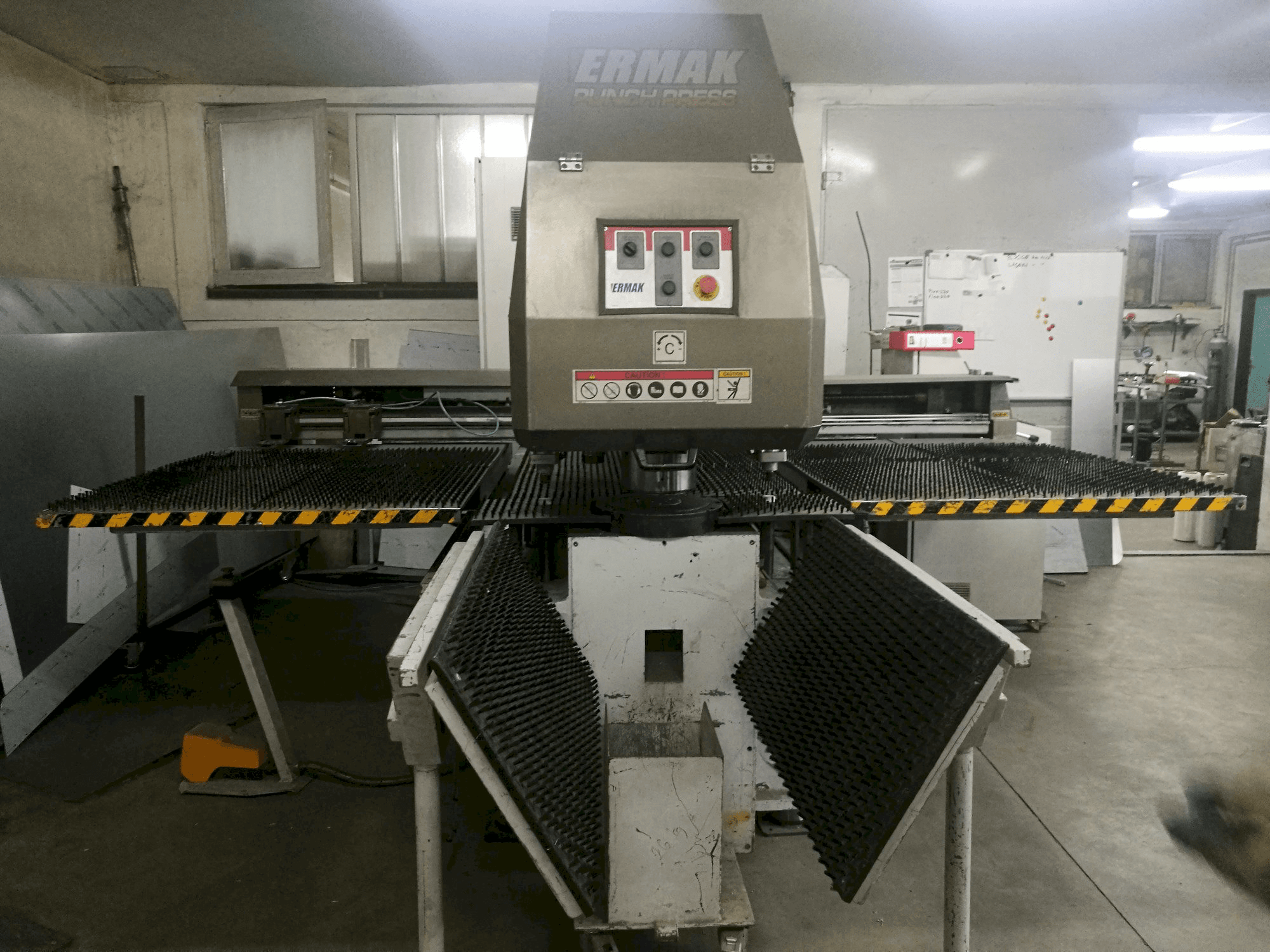

ERMAKSAN RPP 127-30 Turret Punching Machine

This ERMAKSAN RPP 127-30 Turret Punching Machine was made in 2009 in Turkey and has been under power for 13800 hours, from which ony 69 are from operation. Operated through a FANUC 18i- PB Control unit, this machine has mainly been working with stainless steel during the past. It has been equipped with a new Y-axis spindle since 2015. It presents very good conditions, as it is able to work without any downtime. 40 tools, a chipbox, a Multitool 1D and a PC Lantek software are included as additional equipment.

Overview

brand: ERMAKSAN
year: 2009
MODEL: RPP 127-30
production hours: 13800
application type: Punching
Location: Croatia
machine type: Turret Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - ERMAKSAN RPP 127-30

General Data

Measurements width: 4250 mm
Measurements depth: 4000 mm
Measurements height: 2330 mm
Machine weight: 11000 kg

Control Unit

Model: 18i- PB
CNC main language: English
Brand: FANUC

Main drive

Punching force: 300 kN
Maximum sheet thickness: 6 mm

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1270 mm

Tools

Number of index: 1
Number of stations: 1
Slots in storage: 6

Max Material thickness

Steel: 6 mm

Media

Main electronic connection: 380 V
Power consumption: 15 kVA
Internal cooling: Yes

Additional Equipment

- 1 Multitool 1D
- chipbox
- 40 tools
- PC with Lantek software v27

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
