- ESAB SUPRAREX SXE-P 4500 Plasma Cutting Machine

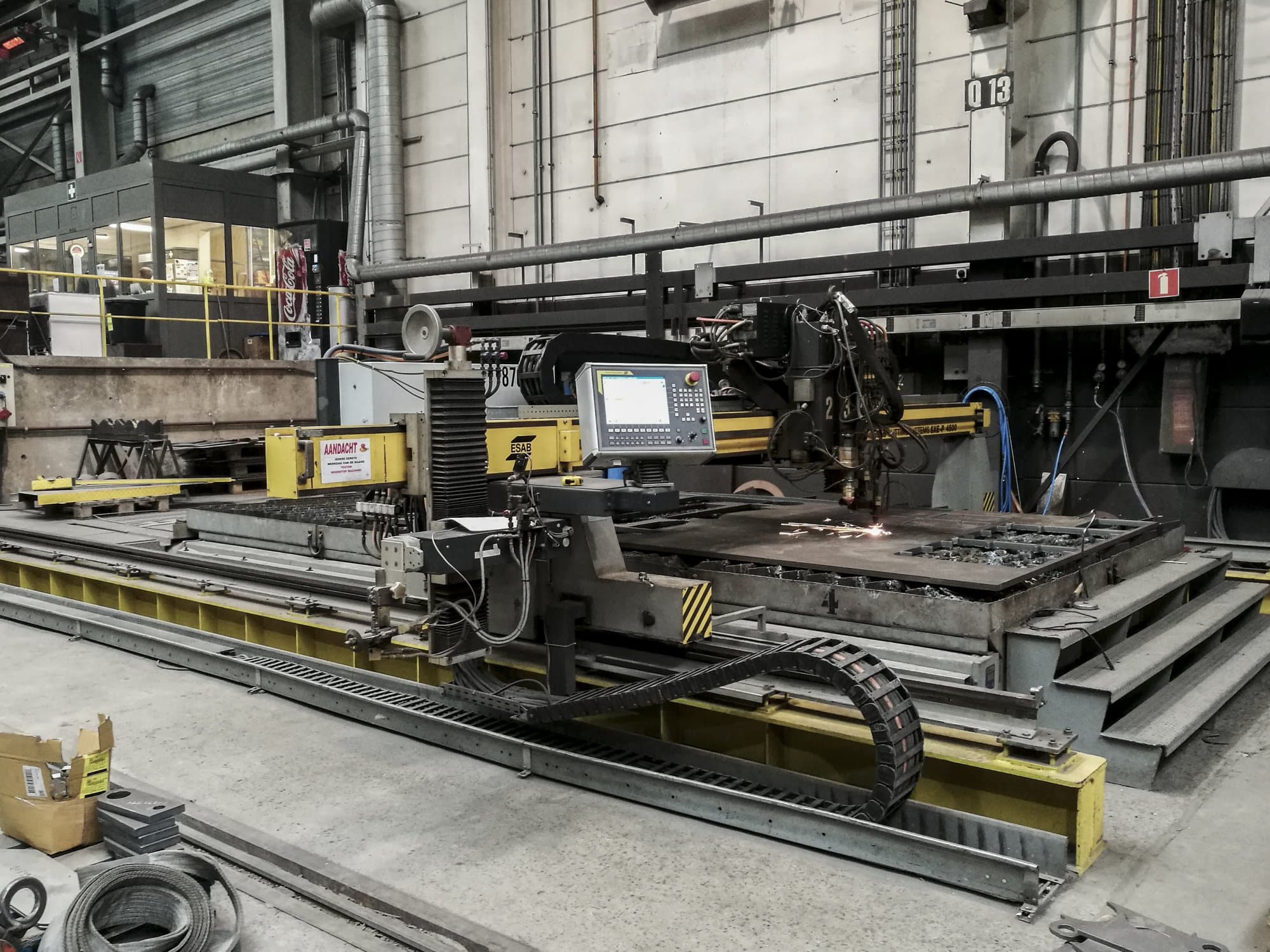

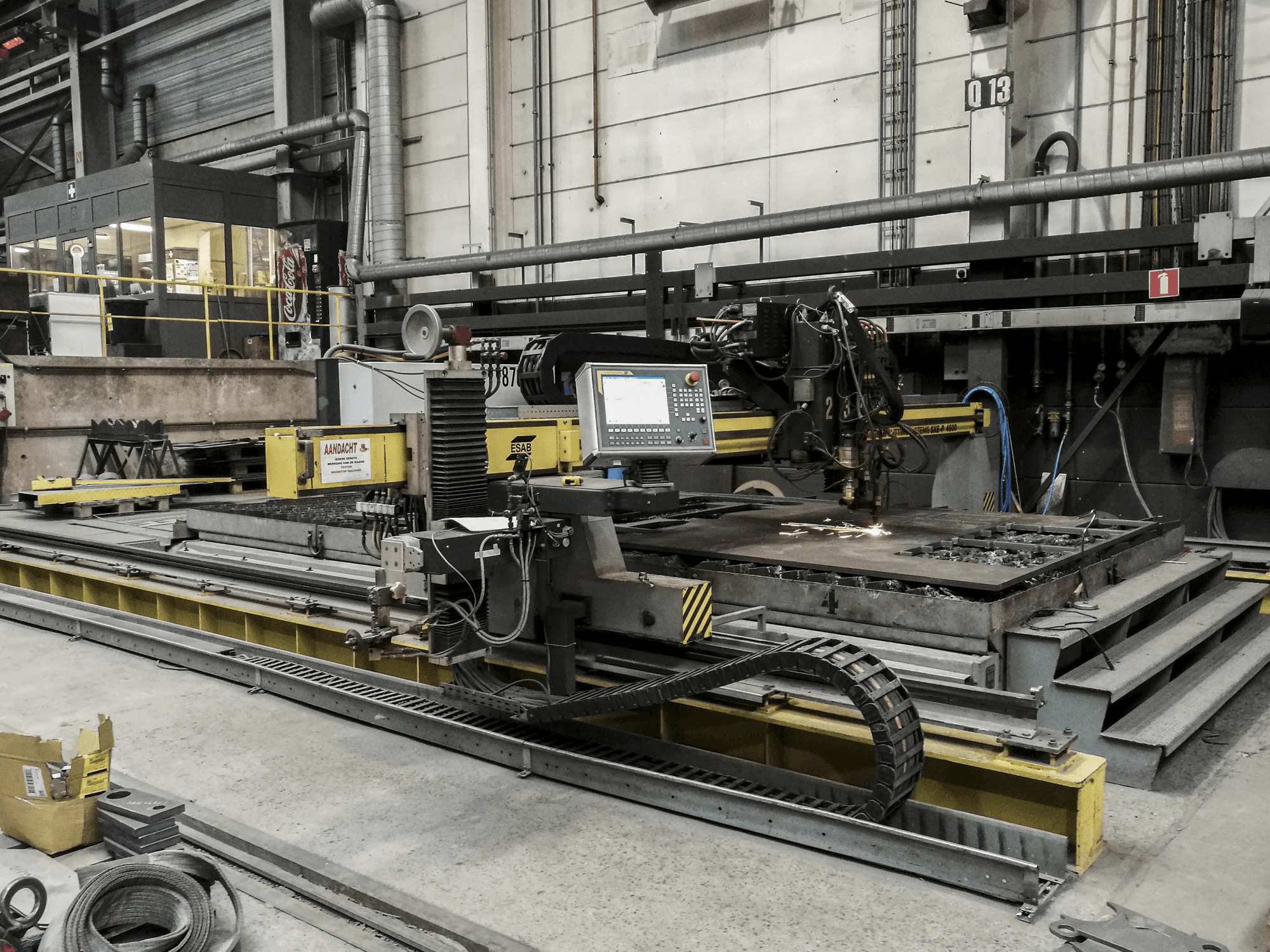

This ESAB SUPRAREX SXE-P 4500 Plasma Cutting Machine was manufactured in 1993 in Belgium and has a working record of only 2403 production hours. This machine, which is operated through a ESAB VISION 55 Control unit, was fully refurbished in 2010 and got a new plasma source, steering, burners and new cables installed. Beside a special program for pipe cutting, this machine is able to proceed steel sheets up to 100 mm of thickness and comes with a wide range of additional equipment.
Overview
- brand: ESAB
- year: 1993
- MODEL: SUPRAREX SXE-P 4500
- production hours: 2403
- application type: Cutting
- Location: Belgium
- machine type: Plasma Cutting Machine
- availability: Sold
- control unit brand: ESAB
Technical Information - ESAB SUPRAREX SXE-P 4500
General Data
- Measurements width: 6000 mm
- Measurements depth: 1000 mm
- Measurements height: 1500 mm
- Machine weight: 2500 kg
Control Unit
- Brand: ESAB
- Model: VISION 55
Movement
- V-AXIS Movement: 6000 mm
- X-AXIS Movement: 3500 mm
- Y-AXIS Movement: 6500 mm
- Z-AXIS Movement: 200 mm
Workpiece
- Workpiece x: 3000 mm
- Workpiece y: 6000 mm
- Workpiece weight: 2106 kg
Max Material thickness
- Steel: 100 mm
- Stainless steel: 30 mm
Media
- Main electronic connection: 380 V
- Power consumption: 120 kVA
Additional Equipment
- - 1x Filter Unit Nedermann Filtermax
- - 1x Ventilator NCF 80/20
- - 1x Frequency control of the ventilator
- - 1x Turning table system
- - 1x M3-Plasma source 201 (32mm cutting range)
- - 2x Autogenous welding headers
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
