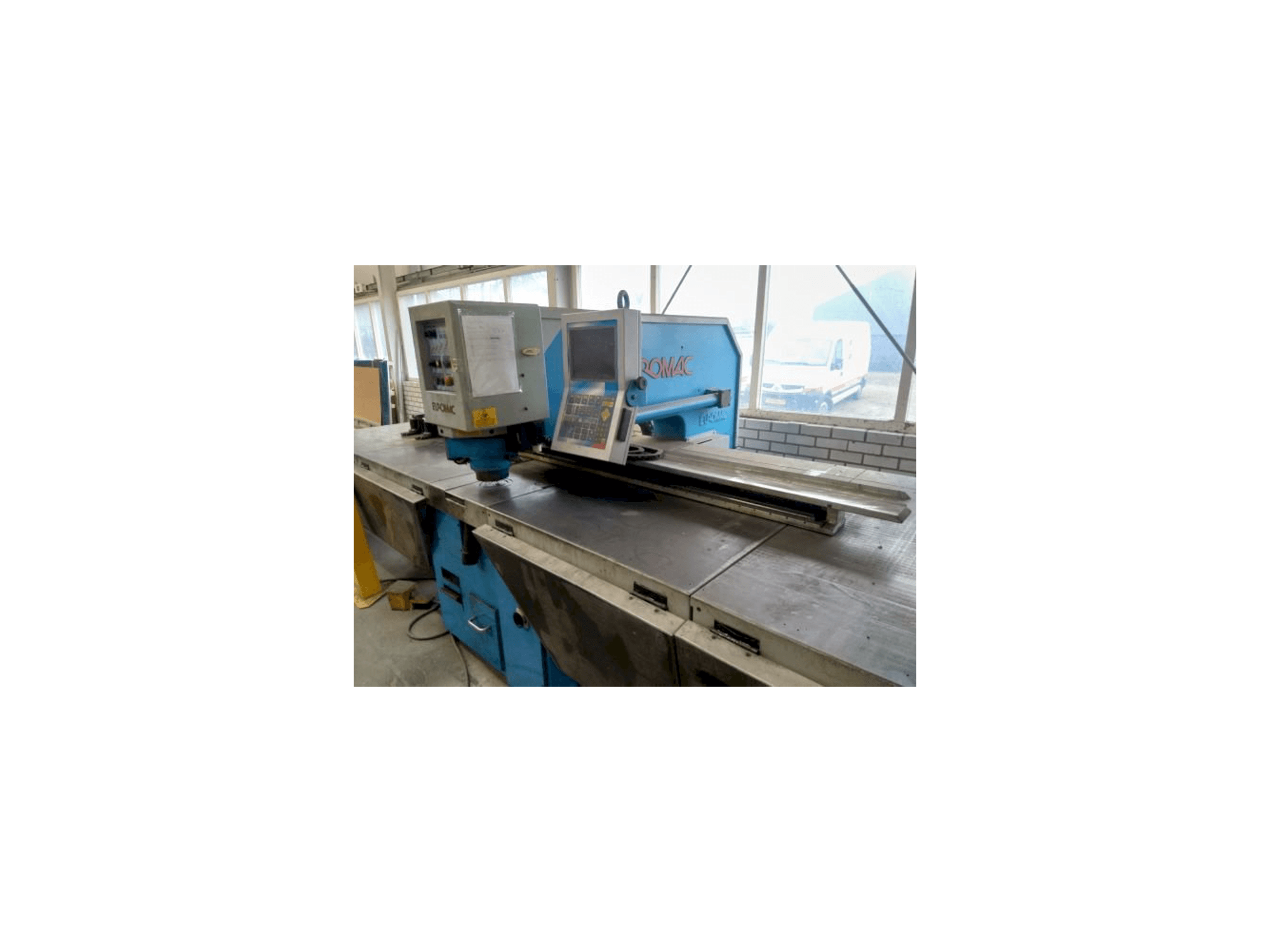

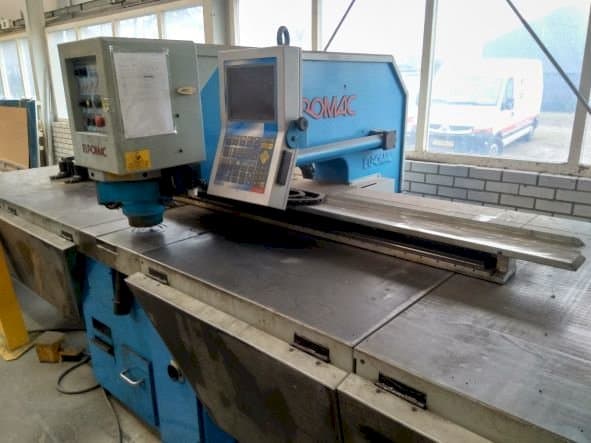

Euromac CX 1000/30 Punching machine

This Euromac CX 1000/30 Punching machine was made in Italy in 1999. It comes with a punching capacity 300 kN and a table dimensions of 4400 x 1800 mm. Includes 2 plate clamps, cabinet with punches and dies, and a foot pedal.

Overview

brand: Euromac
year: 1999
MODEL: CX 1000/30
application type: Punching
Location: Netherlands
machine type: Turret Punch Press
availability: Sold

Technical Information - Euromac CX 1000/30

General Data

Machine weight: 5000 KG

Main drive

Punching force: 300 kN
Maximum sheet thickness: 6 mm
Stroke: 180 rpm

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1000 mm

Table

Outer length: 4400 mm
Outer width: 1800 mm

Additional Equipment

- 2 plate clamps
- Cabinet with punches and dies
- Foot pedal
- Manuals

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feed x/y axes: 5 - 40 mm/min
- - Discharge: 1200 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
