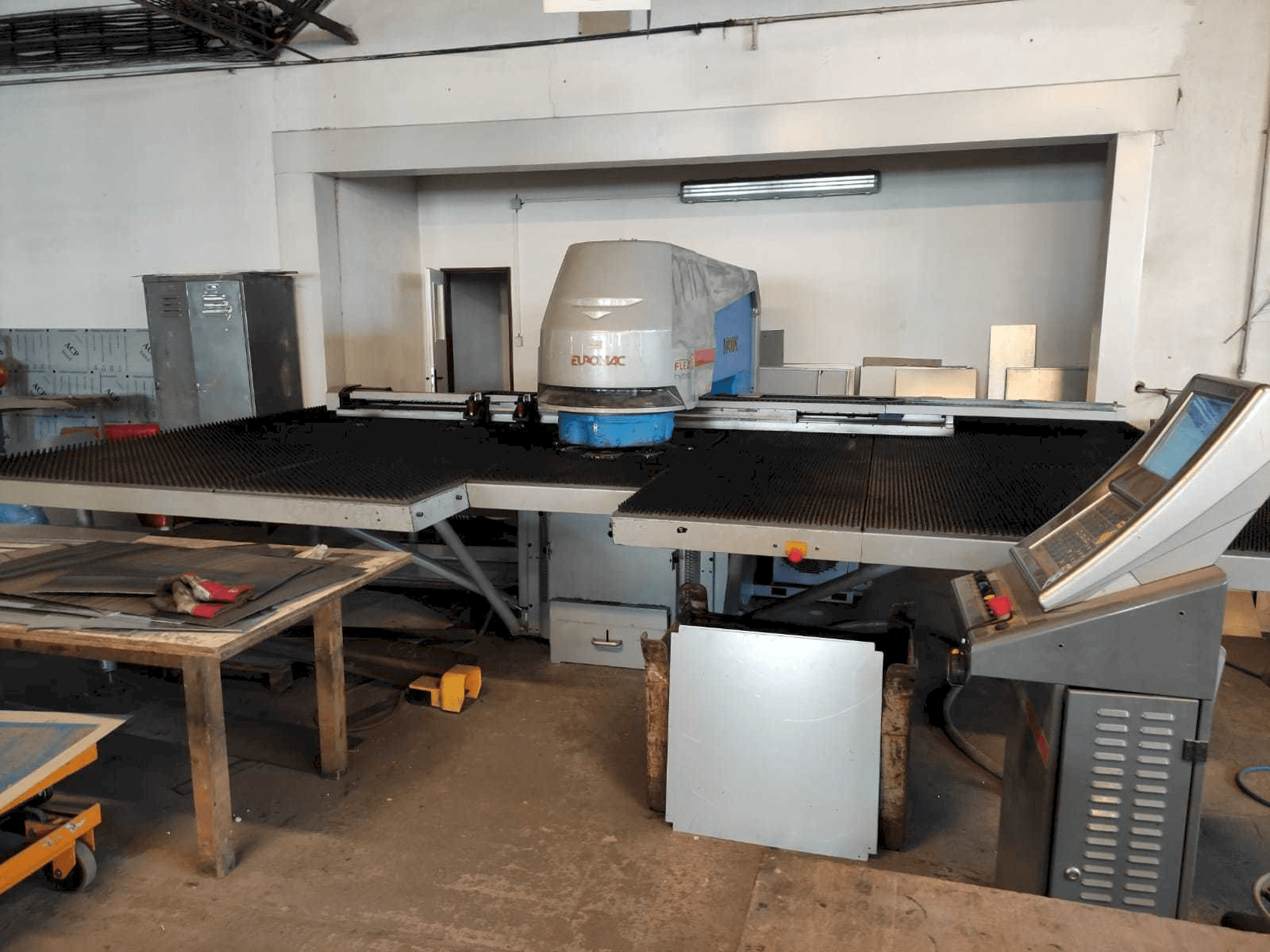

Euromac MTX Flex 6 Hybrid Turret Punching Machine

This Euromac MTX Flex 6 Hybrid Turret Punching Machine from 2014 was manufactured in Italy. It has an overall working time of 19803 hours, of which 12495 are hydraulics on time. Operated through a control unit of the same brand. This machine works with a punching force 220 kN. It is in very good conditions.

Overview

brand: Euromac
year: 2014
MODEL: MTX Flex 6 Hybrid
production hours: 19803
application type: Bending & Punching
Location: Czech Republic
machine type: CNC Punch Press
availability: Sold

Technical Information - Euromac MTX Flex 6 Hybrid

General Data

Measurements width: 4840 mm
Measurements depth: 3880 mm
Machine weight: 8800 kg

Main drive

Punching force: 220 kN
Maximum sheet thickness: 5 mm

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1500 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Large working area
- - Position accuracy (mm) +/- 0. 05
- - Precision in forming repeatability (mm) +/- 0. 1
- - Bidirectional autoindex stations 3
- - Opening of clamps (mm) 11
- - Automatic positioning clamps 2
- - Thickness range (mm) 0. 6 - 5
- - Installed power (kw) 8. 5
- - Max. Hit rate (1/min): punching with 20 mm pitch - 375; nibbling with 1 mm pitch - 1000; marking - 2000
- - Multitool xmte 6
Qualitative Machine Benefits:
- - Very good conditions
- - Low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
